Performer Profile IP Q4
Gobo Holder Installation

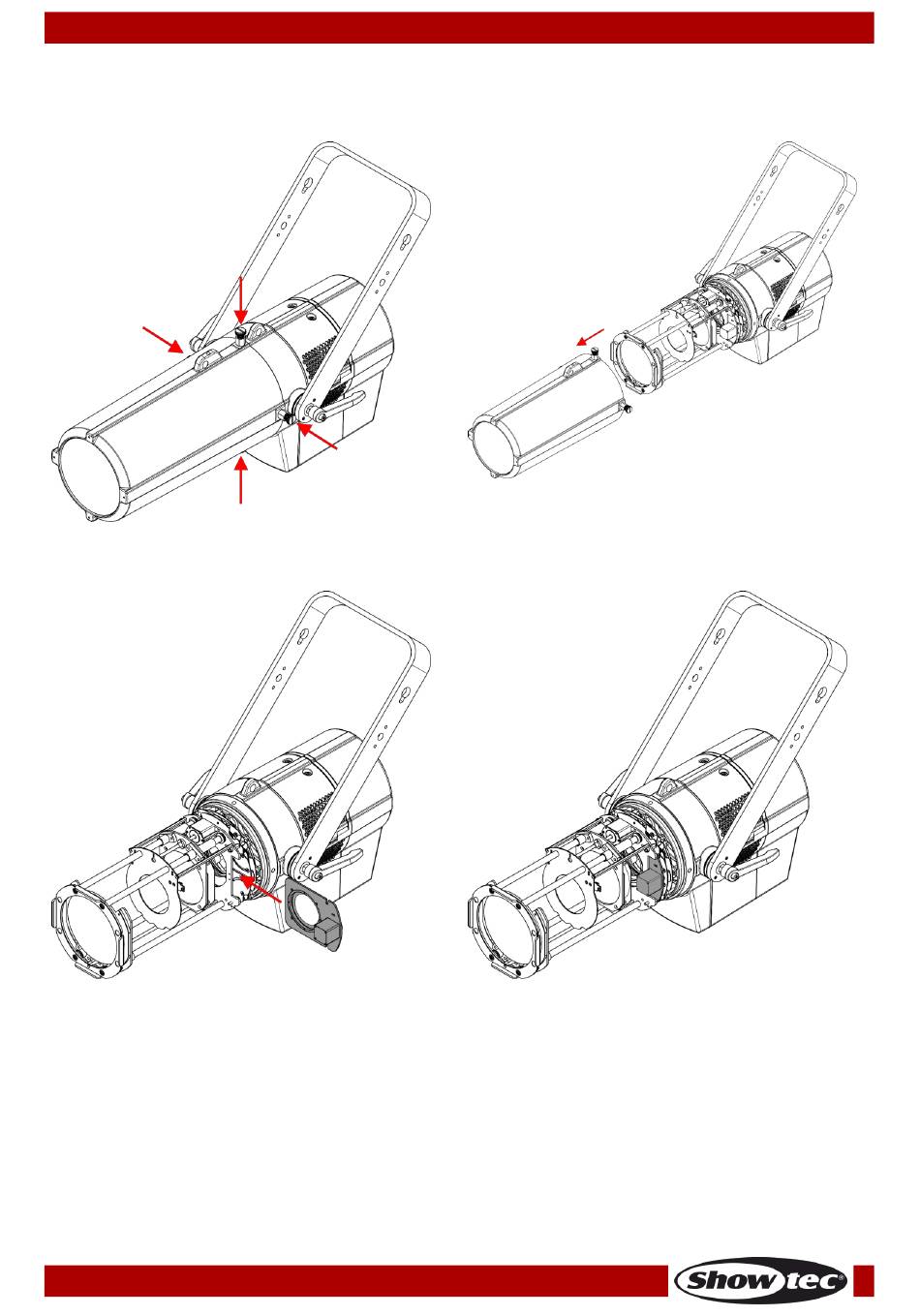

01) Loosen the 4 cover mounting screws (Fig. 03) and remove the cover (Fig. 04).
02) Slide the gobo holder into the slot (Fig. 05) until it is locked in position (Fig. 06).
03) Connect the cable on the gobo with the connector on the Performer.
04) Replace the cover and tighten the 4 mounting screws.
Order code: 33111
Fig. 03
Fig. 05
9
Fig. 04
Fig. 06
