Multiple Performers (DMX Control)

01) Fasten the effect light to a firm trussing or mount it on flat surface. Leave at least 0,5 meter on all
sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin DMX cable to connect the Performer and other devices.

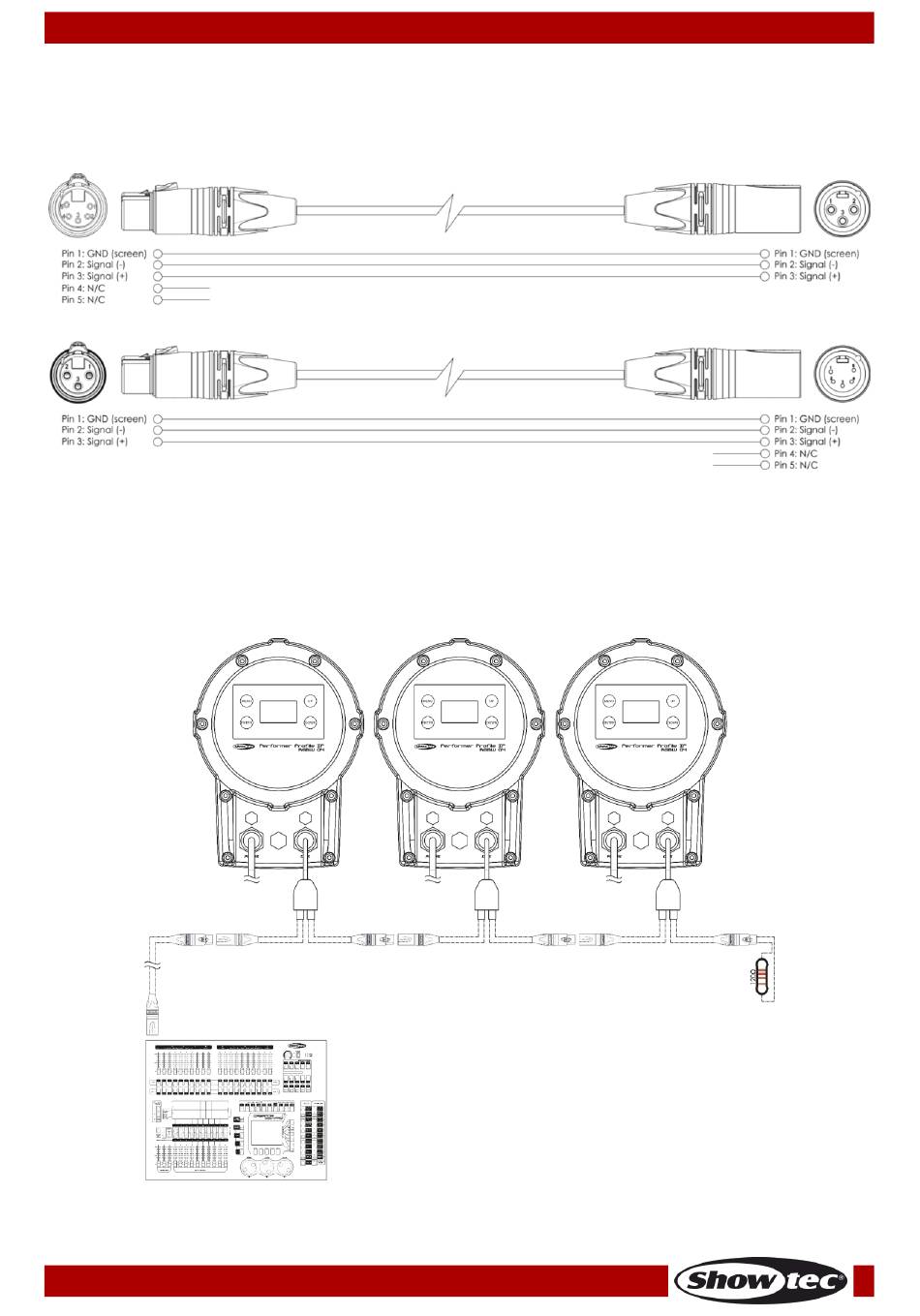

04) Link the units as shown in Fig. 11. Connect a light controller to the first unit's DMX "in" socket, using a
DMX cable. Connect the first unit's "out" socket with the second unit's "in" socket, using a DMX
cable. Repeat this process to link the rest of the units.
05) Supply electric power: Plug electric mains power cords into each unit's special IP rated power IN
socket, then plug the other end of the mains power cord into proper electric power supply sockets,
starting with the first unit. Do not supply power before the whole system is set up and connected
properly.
Order code: 33111
Note : Link all cables before connecting electric power
12
Fig. 11
