Static; Address - SHOWTEC Performer Profile IP Q4 Manual

Performer Profile IP Q4

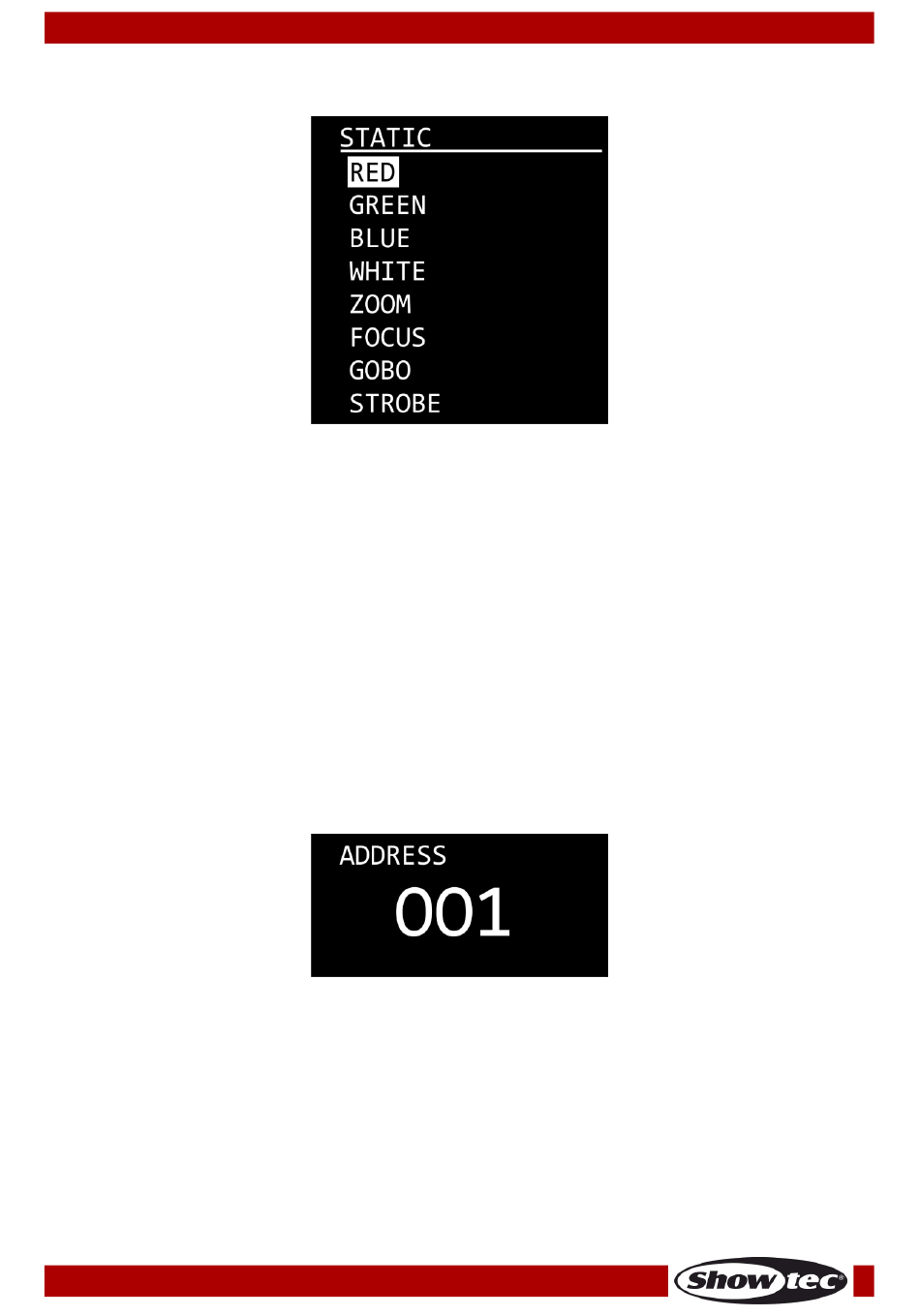

1. Static

In this menu you can manually set the dimmer, zoom, focus, gobo and strobe.
01) Press the UP/DOWN buttons to toggle through the following options:
● RED: 0–255, from dark to brightest
● GREEN: 0–255, from dark to brightest
● BLUE: 0–255, from dark to brightest
● WHITE: 0–255, from dark to brightest
● ZOOM: 0–255, from small to big
● FOCUS: 0–255
● GOBO: 0–255, position of the gobo
● STROBE: 0–25, from low to high strobe frequency
02) Press the ENTER button to open the desired option.
03) Press the UP/DOWN buttons to adjust settings.
04) Repeat steps 2–3 to adjust the remaining settings.
Note:
ZOOM and FOCUS will be reset only if a DMX signal is present during start-up of the Performer.
When a DMX signal is not present during start-up, ZOOM and FOCUS will not be reset and it will not be
possible to adjust their values. (It is useful when using the Performer in fixed installations.)

2. Address

In this menu you can set the device's DMX starting address.
01) Press the UP/DOWN buttons to set the desired DMX address.
The adjustment range is between:
● 001–504 (HSIC)
● 001–503 (SIMPLE)
● 001–500 (COLOR 8BIT)
● 001–495 (MODE 16BIT)
02) For more information about the DMX personalities, see pages 26–31.
Order code: 33111
17
