- Page 1 USER MANUAL ENGLISH Performer Profile 700 Q6 Product code: 33067 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Performer Profile 700 Q6 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Performer Profile 700 Q6 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Performer Profile 700 Q6 Reset ..............................37 DMX Error ..............................37 Disp Key ..............................37 Information ..............................38 Correlated Color Temperature (CCT) ....................38 Preset Color .............................38 DMX Channels ..............................39 DMX Channels Overview ........................39 BASIC (3 channels), SSP (8 channels), TOUR (13 channels), TR16 (20 channels) ......40 HSIC (7 channels) ...........................43...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Performer Profile 700 Q6 ● Schuko to power pro cable (1,5 m) ● Safety cable ●... -
Page 6: Symbols And Signal Words
Performer Profile 700 Q6 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER serious injury or death. -
Page 7: Safety
Performer Profile 700 Q6 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Performer Profile 700 Q6 WARNING Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device. ● Do not look at the operating light source. May be harmful to the eye. ● Do not look at the light source with optical instruments that may concentrate the light output.
-
Page 9: Requirements For The User
Performer Profile 700 Q6 Attention For professional use only This device shall be used only for the purposes it is designed for. This device is designed to be used as a professional stage luminaire. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 10: Description Of The Device

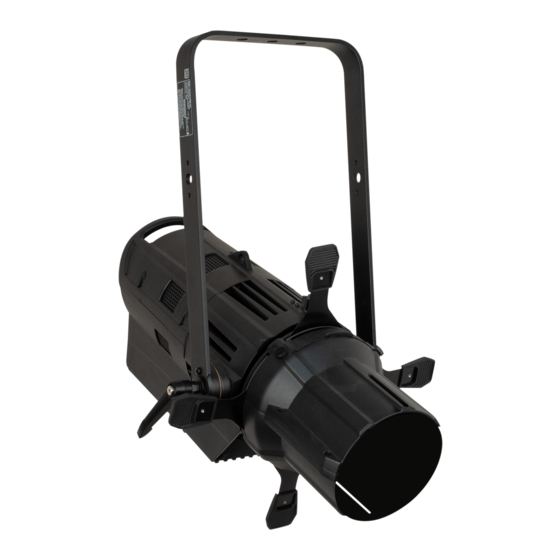

Performer Profile 700 Q6 Description of the Device The Showtec Performer Profile 700 Q6 is a professional stage luminaire with an iris slot and a gobo slot. It is equipped with four shutters. Front View 01) Barrel screw (x2) 02) Safety eye 1... -
Page 11: Product Specifications
Performer Profile 700 Q6 Product Specifications Model: Performer Profile 700 Q6 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 300 W Fuse: T 6,3 A / 250 V Physical: Dimensions: 685 x 238 x 499 mm (L x W x H) (without accessories) -
Page 12: Optional Accessories
Performer Profile 700 Q6 Optional Accessories ● Product code: 33070 (Zoom Lens for Performer Profile) ● Product code: 33071 (Zoom Lens for Performer Profile) ● Product code: 33072 (19° Lens for Performer Profile) ● Product code: 33073 (36° Lens for Performer Profile) ●... -
Page 13: Installation
Performer Profile 700 Q6 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Rigging
Performer Profile 700 Q6 Rigging The device can be mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. -
Page 15: Angle Adjustment
Performer Profile 700 Q6 Angle Adjustment You can adjust the angle of the device with the adjustment handle (05). Turn the adjustment handle (05) counterclockwise to loosen it (see Fig. 07). 02) Tilt the device to the desired angle. 03) Turn the adjustment handle (05) clockwise to tighten it. Make sure that the device cannot move freely after the adjustment handle (05) is tightened. -
Page 16: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 3 devices Performer Profile 700 Q6 ● at 200–240 V: 6 devices Performer Profile 700 Q6 Product code: 33067... -
Page 17: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Performer Profile 700 Q6 is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually via the control panel. -
Page 18: Dmx Cables
Performer Profile 700 Q6 DMX Cables Shielded twisted-pair cables with 5-pin XLR connectors must be used for a reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables. If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network. -
Page 19: Master/Slave Setup
Performer Profile 700 Q6 Master/Slave Setup The Performer Profile 700 Q6 supports master/slave control mode. To connect multiple devices in a master/slave setup, follow the steps below: Connect the DMX OUT connector on the first device to the DMX IN connector on the second device with a 5-pin DMX cable. -
Page 20: Dmx Linking
In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The Performer Profile 700 Q6 has 6 personalities: 3, 7, 8, 10, 13 and 20 channels. If you want to connect multiple devices on one data link and use them in 20-channel mode, for... -
Page 21: Beam Shaping With Shutters
Beam Shaping with Shutters The beam of the Performer Profile 700 Q6 can be shaped using the 4 included shutters as shown in Fig. 11. To shape the beam using the shutters (11), follow the steps below (see Fig. 11): ●... -
Page 22: Gobo Installation
Performer Profile 700 Q6 Gobo Installation An optional gobo holder can be inserted into the gobo slot (10) on the device as shown in Fig.12. See 3.4 Optional accessories on page 11 for more information about the optional gobo holders. -
Page 23: Iris Installation
Performer Profile 700 Q6 Iris Installation You can use an optional iris to reduce the aperture size of the output. See 3.4 Optional accessories on page 11 for more information about the optional iris. To install the iris, follow the steps below (see Fig. 13 and Fig. 14): 01) Use a screwdriver to loosen the iris slot screws (07). -
Page 24: Lens Installation
Lens Installation An optional lens can be attached to the Performer Profile 700 Q6 as shown in Fig. 15, Fig. 16 and Fig 17. Lenses with fixed angles and zoom lenses are available. See 3.4 Optional accessories on page 11 for more information about the optional lenses. -
Page 25: Zoom Lens Installation
Performer Profile 700 Q6 Zoom Lens Installation To install a zoom lens, follow the steps below (see Fig.16 and Fig 17.): 01) Loosen and remove the barrel screws (01). 02) Turn the barrel (06) 45° clockwise or counterclockwise and pull it out. -
Page 26: Operation
Control Modes The Performer Profile 700 Q6 can be operated with a DMX controller, without a DMX controller as a stand- alone device, or in a master/slave setup. -
Page 27: Control Panel
Start-up Upon start-up the display shows a splash screen with the Showtec logo. Afterwards the display shows the start screen. The start screen provides information about the DMX starting address of the device, the temperature of the LEDs and the selected DMX channel mode: Press the ENTER button or the UP/DOWN buttons to enter the main menu. -
Page 28: Menu Overview
Performer Profile 700 Q6 Menu Overview Product code: 33067... - Page 29 Performer Profile 700 Q6 Product code: 33067...
- Page 30 Performer Profile 700 Q6 Product code: 33067...
- Page 31 Performer Profile 700 Q6 Product code: 33067...
-
Page 32: Main Menu Options
Performer Profile 700 Q6 Main Menu Options The main menu has the following options: 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus. Static Colors In this menu you can create a custom color and add a strobe effect. -
Page 33: Dmx Address
Performer Profile 700 Q6 DMX Address In this menu you can set the DMX starting address of the device. Press the UP/DOWN buttons to select the DMX starting address of the device. The selection range depends on the active DMX channel mode: ●... -
Page 34: Auto Programs
Performer Profile 700 Q6 Auto Programs In this menu you can select to play one the auto programs or custom programs. There are 10 built-in auto programs and 2 custom programs. The custom programs are editable. For more information see 6.6.6. -
Page 35: Edit
Performer Profile 700 Q6 Edit In this menu you can edit the 2 custom programs and upload them from the master device to connected slave devices. To edit the custom programs: Press the UP/DOWN buttons to choose the custom program you want to edit: PROGRAM1 or PROGRAM2. - Page 36 Performer Profile 700 Q6 03) Press the UP/DOWN buttons to select the desired scene. 04) Press the ENTER button to confirm the selection and open the submenu with the settings for the respective scene. 05) Press the UP/DOWN buttons to select one of the following 9 options: ●...
-
Page 37: Setting
Performer Profile 700 Q6 To upload the custom programs: 01) Press the UP/DOWN button to Select UPLOAD. 02) Press the ENTER button to confirm the selection. During upload the display will show: When the upload has been sent, the display will show OK. -
Page 38: Reset
Performer Profile 700 Q6 Reset In this submenu, you can restore the default factory settings of the device. This submenu requires a password. 01) Press the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN to enter the password. -
Page 39: Information
Performer Profile 700 Q6 Information In this submenu, you can see the fixture hours, the firmware version and the RDM details of the device. 01) Press the UP/DOWN buttons to select one of the following 3 options: ● FIXTURE HOURS: The display shows the total number of hours the LEDs have been used for ●... -
Page 40: Dmx Channels
Performer Profile 700 Q6 DMX Channels DMX Channels Overview BASIC TOUR TR16 HSIC Function 3 CH 8 CH 13 CH 20 CH 7 CH 10 CH Intensity Hue Fine Saturation Dimmer Dimer Fine Red Fine Green Green Fine Blue Blue Fine... -
Page 41: Basic (3 Channels), Ssp (8 Channels), Tour (13 Channels), Tr16 (20 Channels)
Performer Profile 700 Q6 BASIC (3 channels), SSP (8 channels), TOUR (13 channels), TR16 (20 channels) BASIC TOUR TR16 Function Value Setting 3 CH 8 CH 13 CH 20 CH Dimmer 000–255 From low to high intensity (0–100 %) Dimmer Fine 000–255... - Page 42 Performer Profile 700 Q6 BASIC TOUR TR16 Function Value Setting 3 CH 8 CH 13 CH 20 CH 196–200 Pretty’n Pink L794 201–205 Follies Pink L328 206–210 Magical Magenta L795 211–215 Pale Rose L154 216–220 Smokey Pink L127 221–225 Flesh Pink L192 226–230...
- Page 43 Performer Profile 700 Q6 BASIC TOUR TR16 Function Value Setting 3 CH 8 CH 13 CH 20 CH Auto Speed 000–255 Auto program speed adjustment 000–009 No function 010–099 From low to high frequency (0-25Hz) 100–109 No function Strobe 110–179 Pulse strobe, from low to high rate 180–189...
-
Page 44: Hsic (7 Channels)
Performer Profile 700 Q6 HSIC (7 channels) HSIC Function Value Setting 7 CH Intensity 000–255 From low to high intensity (0–100 %) 000–255 From low to high intensity (0–100 %) Hue Fine 000–255 Fine adjustment Saturation 000–255 From low to high saturation (0–100 %) 000–009... -
Page 45: Cmy (10 Channels)
Performer Profile 700 Q6 HSIC Function Value Setting 7 CH 141–150 Reserved 151–160 1200Hz 161–170 2400Hz 171–180 4000Hz 181–190 6000Hz 191–200 25000Hz 201–210 All reset 211–220 Reserved 221–230 Reserved 231–240 Reserved 241–255 Reserved Note: Make sure that the Intensity channel is open in order to see the light output. - Page 46 Performer Profile 700 Q6 Function Value Setting 10 CH 166–170 Daylight Blue L165 171–175 Pale Lavender L136 176–180 Surprise Pink L194 181–185 Pale Violet L142 186–190 Perfect Lavender L700 191–195 Light Pink 196–200 Pretty’n Pink L794 201–205 Follies Pink L328 206–210...
- Page 47 Performer Profile 700 Q6 Function Value Setting 10 CH 111–120 Auto 8 121–130 Auto 9 131–140 Auto 10 141–150 Custom 1 151–160 Custom 2 161–255 No function Auto Speed 000–255 Auto program speed adjustment 000–009 No function 010–099 From low to high frequency (0–25 Hz) 100–109...
-
Page 48: Rdm Information
Performer Profile 700 Q6 RDM Information This device supports RDM. Refer to 6.8.2. Supported RDM PIDs (Parameter IDs) for more information. RDM Details ● Responder: 29B4:0A0xxxxx ● Manufacturer's ID: Showtec ● Manufacturer Label: Showtec ● Model Description: Performer Profile 700 Q6 ●... -
Page 49: Supported Rdm Pids (Parameter Ids)
Performer Profile 700 Q6 Supported RDM PIDs (Parameter IDs) Parameter ID Value Required DISC_UNIQUE_BRANCH 0x0001 DISC_MUTE 0x0002 DISC_UN_MUTE 0x0003 COMMS_STATUS 0x0015 STATUS_MESSAGES 0x0030 STATUS_ID_DESCRIPTION 0x0031 CLEAR_STATUS_ID 0x0032 SUPPORTED_PARAMETERS 0x0050 DEVICE_INFO 0x0060 DEVICE_MODEL_DESCRIPTION 0x0080 MANUFACTURER_LABEL 0x0081 DEVICE_LABEL 0x0082 FACTORY_DEFAULTS 0x0090 LANGUAGE_CAPABILITIES... -
Page 50: Troubleshooting
Performer Profile 700 Q6 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 51: Maintenance
Performer Profile 700 Q6 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●... -
Page 52: Corrective Maintenance
Performer Profile 700 Q6 Corrective Maintenance The device does not contain user-serviceable parts Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 53: Deinstallation, Transportation And Storage
Performer Profile 700 Q6 Deinstallation, Transportation and Storage Instructions for Transportation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 54 Performer Profile 700 Q6 Product code: 33067...
- Page 55 Performer Profile 700 Q6 Product code: 33067...
