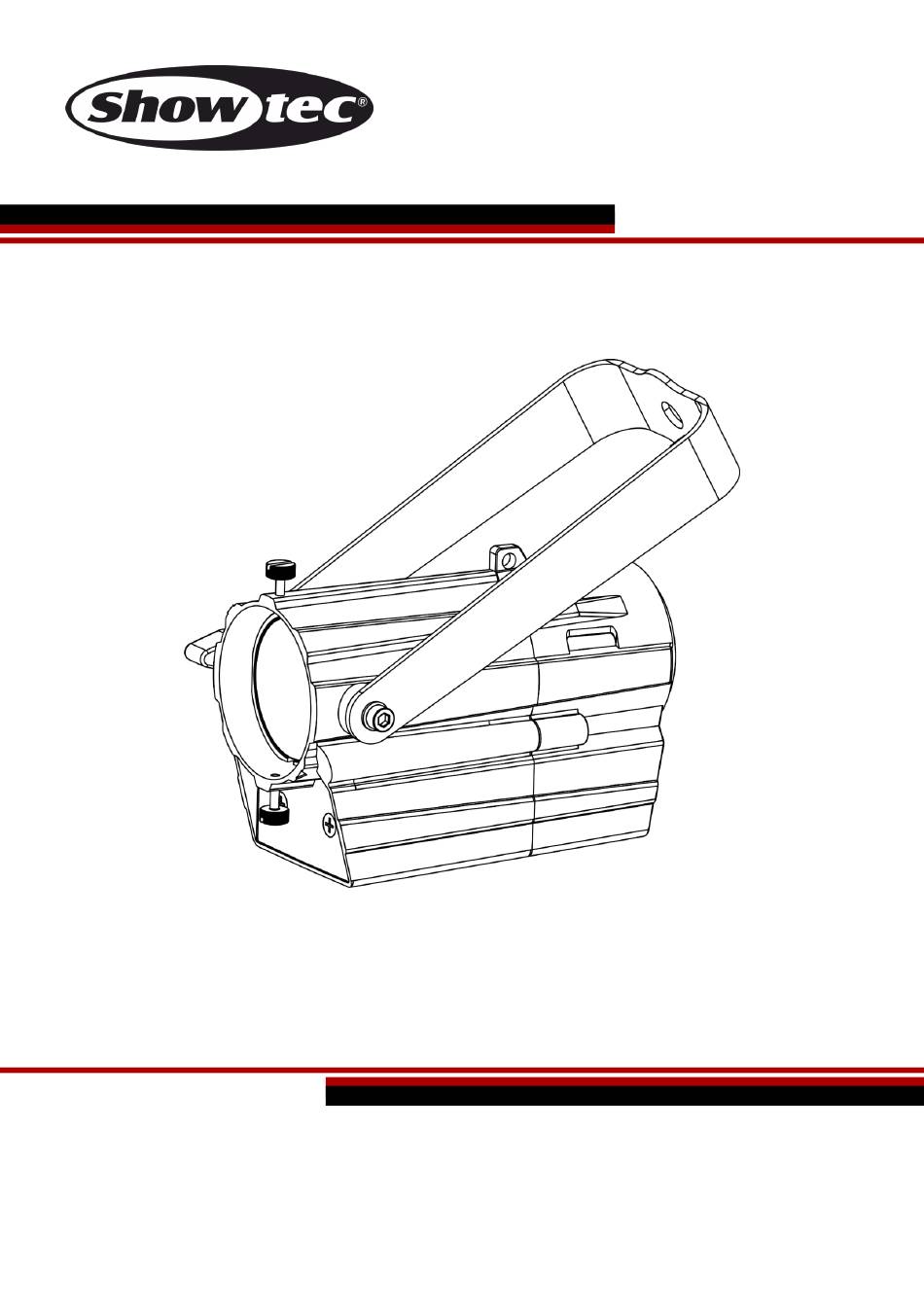

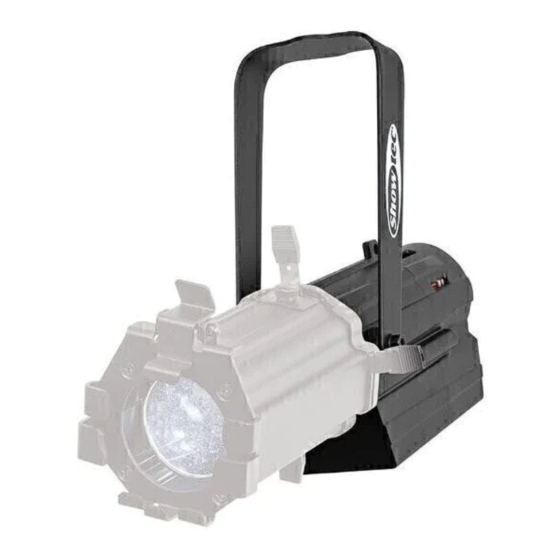

- Page 1 MANUAL ENGLISH Performer Profile Mini MKII 3200K V1 Ordercode: 33090 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer Profile Mini MKII 3200K Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Front .................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Performer Profile Mini MKII 3200K with Schuko power cable (1,4 m) ● 1 x safety cable ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Performer Profile Mini MKII 3200K Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 50 cm. -
Page 6: Connection With The Mains
Performer Profile Mini MKII 3200K The Performer can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. -
Page 7: Return Procedure
Performer Profile Mini MKII 3200K Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device
Performer Profile Mini MKII 3200K Description of the device Features The Showtec Performer Profile Mini MKII 3200K is a compact theater spotlight fixture with high output. ● Input voltage: 110–240 V AC, 50/60 Hz ● Power consumption: 25 W ●... -
Page 9: Back
10) 3-pin DMX signal connector OUT Installation Remove all packing materials from the Performer Profile Mini MKII 3200K. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Lens Locations
Performer Profile Mini MKII 3200K Lens Locations The different lenses used in the Performer are not interchangeable. When installing a new tube lens, refer to the illustration below for proper placement. Fig. 03 Focusing the Beam 01) Loosen the beam focus controls located under the barrel (Fig. 04). -
Page 11: Color Frame Retaining Clip
Performer Profile Mini MKII 3200K Color Frame Retaining Clip The color frame holder is equipped with a spring-loaded retaining clip. This prevents color frames and accessories from falling out (Fig. 06). Make sure that all color frame accessories are locked in position with the retaining clip before hanging the Performer. -
Page 12: Control Modes
Performer Profile Mini MKII 3200K Control Modes There are 2 modes: ● Manual Dimmer ● DMX-512/RDM Manual Dimmer (Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 13: Multiple Performers (Dmx/Rdm Control)
Performer Profile Mini MKII 3200K Multiple Performers (DMX/RDM Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Performers and other devices. -
Page 14: Fixture Linking
Performer Profile Mini MKII 3200K Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Cleaning
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 04) The electric power supply cables must not show any damages or material fatigue. The Performer Profile Mini MKII 3200K requires almost no maintenance. However, you should keep the unit clean. -
Page 16: Troubleshooting
Suspect two potential problem areas as: the power supply and the LEDs. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Performer to your Showtec dealer. 03) If both appear to be O.K., plug the unit in again. -
Page 17: Product Specifications
Performer Profile Mini MKII 3200K Product Specifications Model: Showtec Performer Profile Mini MKII 3200K Input voltage: 110–240 V AC, 50/60 Hz Power consumption: 25 W Dimensions: 150 x 106 x 225 mm (LxWxH) Weight: 1,3 kg Electro-mechanical effects: Light source:... -
Page 18: Notes
Performer Profile Mini MKII 3200K Notes Ordercode: 33090... - Page 19 Performer Profile Mini MKII 3200K Ordercode: 33090...
- Page 20 ©2019 Showtec...
