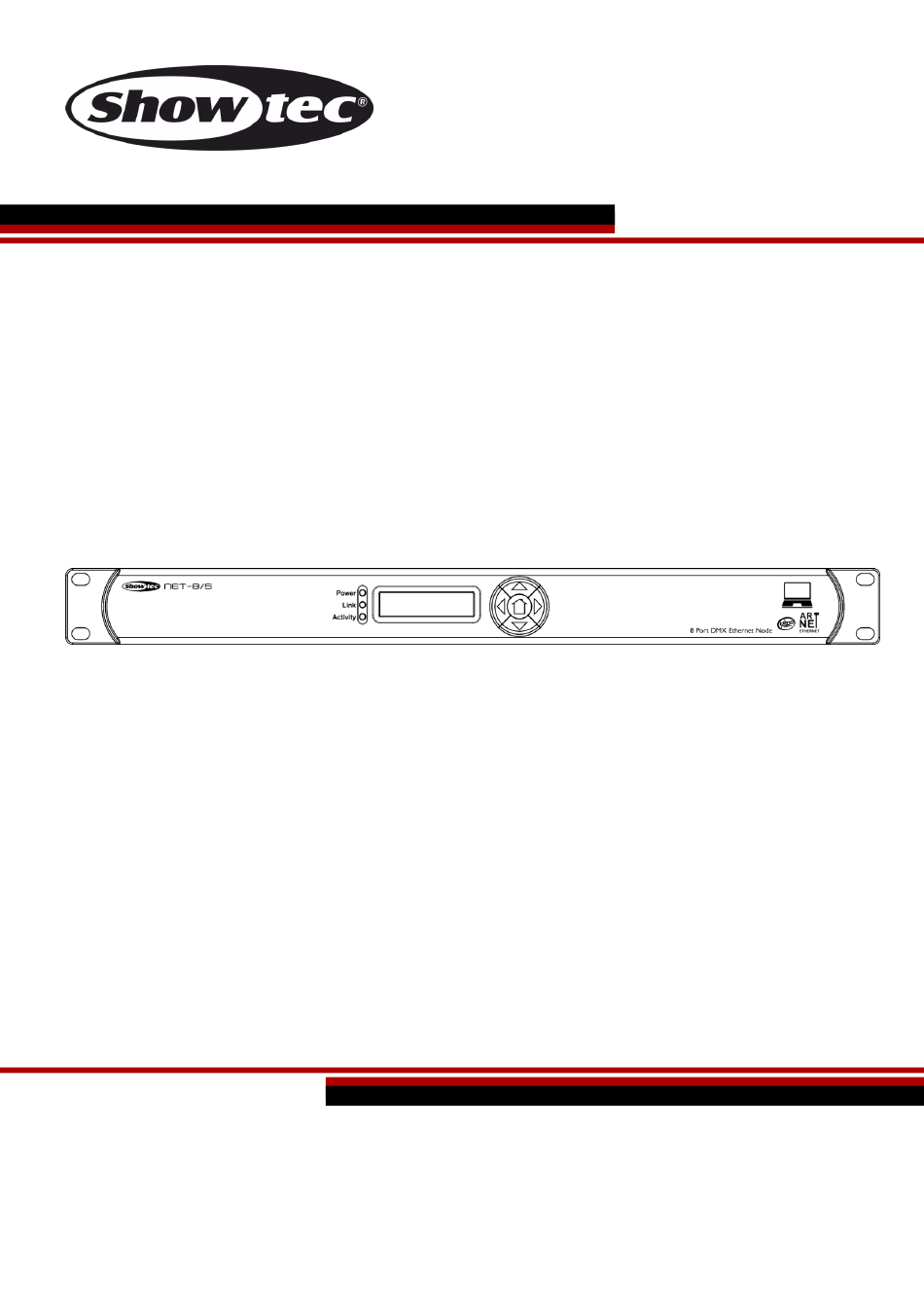

- Page 1 MANUAL ENGLISH Net-8/5 Ordercode: 50810 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Backside ..................................7 Installation ................................... 7 Set Up and Operation ............................... 7 Control Modes ................................8 Setup Net-8/5 with Laptop/PC ..........................8 Setup Net-8/5 with Lighting controller ........................9 Fixture Linking ................................10 Data Cabling ................................10 Control Panel ................................11 Status Menu .................................11 Main Menu Options ..............................12... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Net-8/5 ● Schuko to Pro power connector power cable (1,3 m) ●... - Page 4 Never attempt to bypass the thermostatic switch or fuses. ● The user is responsible for correct positioning and operating of the Net-8/5. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
Net-8/5 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The maximum ambient temperature ta = 40 °C must never be exceeded. -
Page 6: Return Procedure
Net-8/5 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

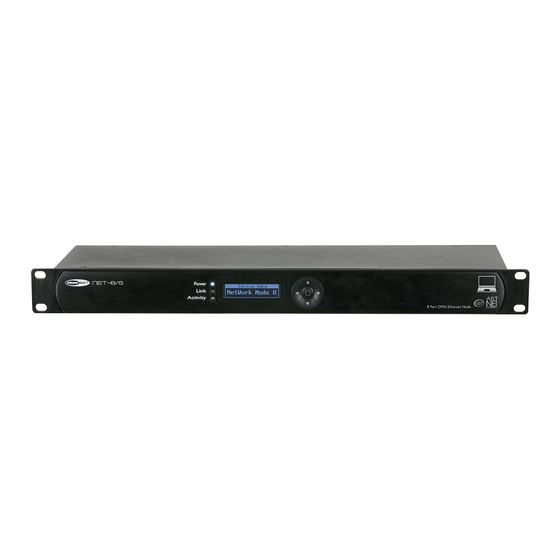

DMX-512 to ArtNet. A maximum of 4096 channels can be transmitted over a single CAT5. This makes the Net-8/5 suitable for small and large-scale events. The NeT-8/5 embeds a built-in network switch to be used as an ethernet repeater as well as 8 isolated DMX-512 universes which can be used as an input or output. -
Page 8: Backside
12) Ethernet RJ45 connecter 2 with Activity and Speed LED indicators Installation Remove all packing materials from the Net-8/5. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 9: Control Modes
Setup Net-8/5 with Laptop/PC 01) Fasten the Net-8/5 to a 19-inch rack. 02) Use a 5-pin XLR cable to connect the Net-8/5 DMX outputs to your fixtures. 03) Connect the network switch to the Net-8/5 (CAT5, CAT6 cable). 04) Connect the laptop/PC to the network switch (CAT5, CAT6 cable). -
Page 10: Setup Net-8/5 With Lighting Controller
Setup Net-8/5 with Lighting controller 01) Fasten the Net-8/5 to a 19-inch rack. 02) Use a 5-pin XLR cable to connect the Net-8/5 DMX outputs to your fixtures. 03) Connect the network switch to the Net-8/5 (CAT5, CAT6 cable). 04) Connect the lighting controller to the network switch (CAT5, CAT6 cable). -
Page 11: Fixture Linking
Net-8/5 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
Net-8/5 Control Panel LCD display UP button C) RIGHT button D) HOME button LEFT button DOWN button Fig. 05 Status Menu At the start-up you can navigate through the 5 status modes. They provide you with instant information about the most important parameters. -
Page 13: Main Menu Options
Net-8/5 Main Menu Options 1. Rename 2. Set DHCP 3. Set IP Address 4. Set Netmask 5. Set DMX Port 6. Set Device ID 7. Set LCD Backlight 8. Set Display 9. User Preset 10. Set Default 11. Version Note: If no button is pressed within 30 seconds, the display will return to the start-up screen (Status menu). -
Page 14: Set Ip Address
Net-8/5 3. Set IP Address 01) Press the LEFT button to enter the main menu. 02) Press the UP/DOWN buttons to select SET IP ADDRESS and press the RIGHT button to open the submenu. The display shows: 03) Press the UP/DOWN buttons to scroll through the address sections, CANCEL and ENTER. - Page 15 ● BACKUP: In case of a failure, or when there are no DMX values on the first selected ArtNet universe for more than 3 seconds, the Net-8/5 starts sending the DMX values from the backup port. ● If the port is set as output: ●...
-
Page 16: Set Device Id
Net-8/5 6. Set Device ID 01) Press the LEFT button to enter the main menu. 02) Press the UP/DOWN buttons to select SET DEVICE ID and press the RIGHT button to open the submenu. The display shows: 03) Press the UP/DOWN buttons to highlight the number in the middle of the screen. -
Page 17: User Preset
Net-8/5 9. User Preset 01) Press the LEFT button to enter the main menu. 02) Press the UP/DOWN buttons to select USER PRESET and press the RIGHT button to open the submenu. The display shows: 03) Press the UP/DOWN buttons to scroll through the 5 options: ●... -
Page 18: Maintenance
04) If all appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Net-8/5, as this may damage the unit and the warranty will become void. - Page 19 Net-8/5 Problem Probable cause(s) Solution ● Check if power is switched on and cables are plugged in No power to the fixture One or more fixtures do not function at all Primary fuse blown ● Replace fuse ArtNet protocol is not active ●...
-
Page 20: Product Specifications
Net-8/5 Product Specifications Model: Showtec Net-8/5 Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 20 W Fuse: T1AL/250 V Dimensions: 483 x 143 x 44,5 mm (LxWxH) 19 inch x 1U (LxH) Weight: 2,2 kg Operation and Programming Signal pin OUT:... -
Page 21: Dimensions
Net-8/5 Dimensions Order code: 50810... -
Page 22: Notes
Net-8/5 Notes Order code: 50810... - Page 23 Net-8/5 Order code: 50810...
- Page 24 ©2019 Showtec...
