Summary of Contents for SHOWTEC Sunstrip Active DMX

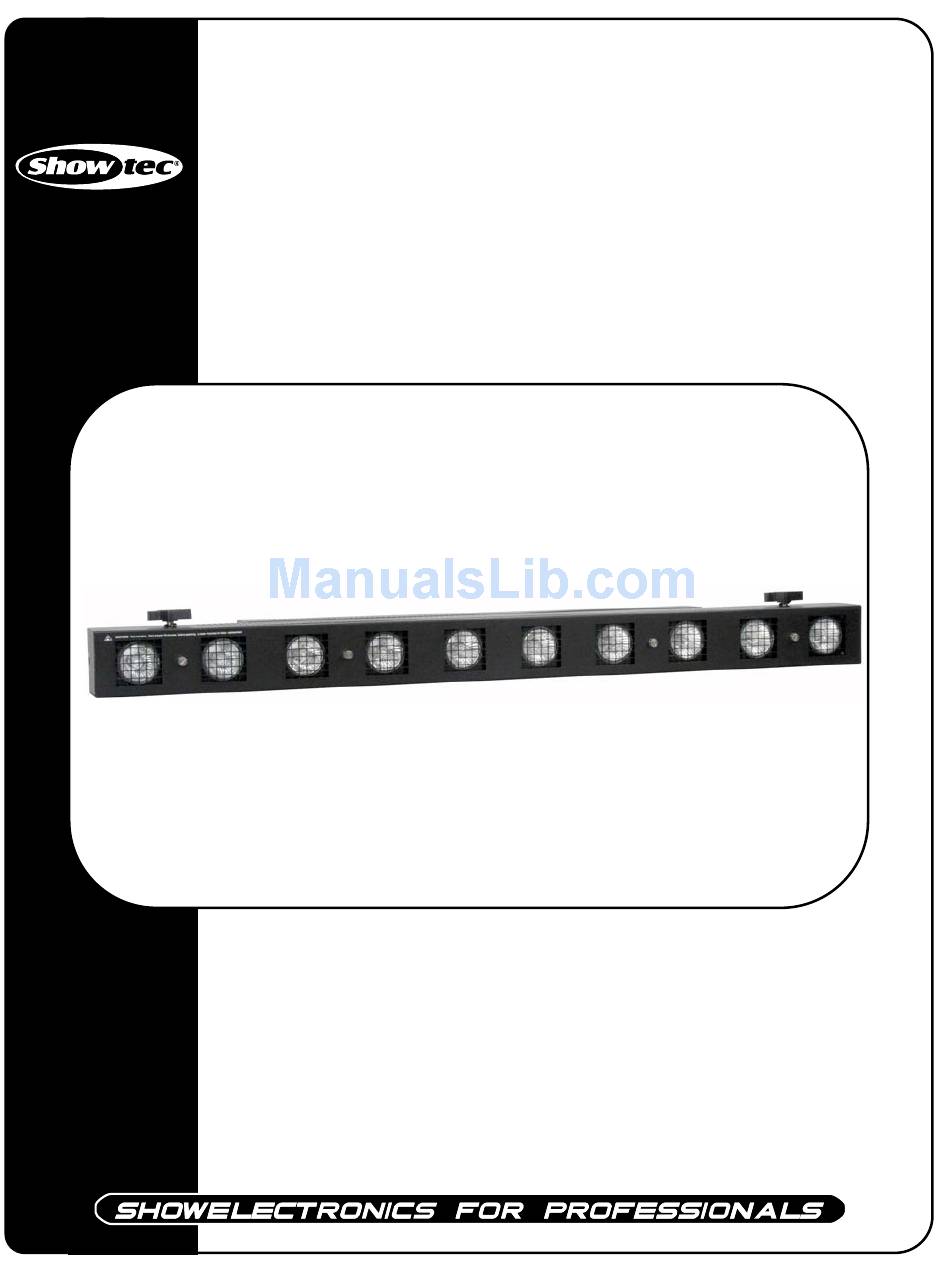

- Page 1 Sunstrip Active DMX ORDERCODE 30710...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Sunstrip Active DMX brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Sunstrip Active DMX Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… One Sunstrip Active ...............……………………………………..….….. Multiple Sunstrip Active’s.............…..…………………………………... Operation Modes…...........………………………………………………….……. DMX Mode……........…………………………………………………………………….. Chase Mode……........………………….……………………………………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the Sunstrip is lowered from the ceiling or high joists, professional trussing systems have to be •... -
Page 7: Description

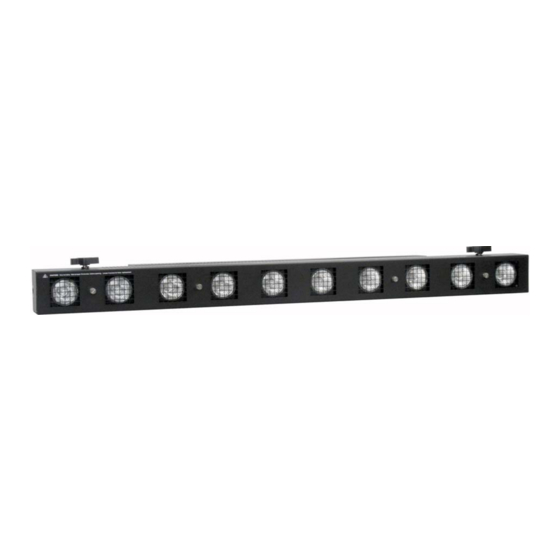

Description of the device Features The Showtec Sunstrip Active DMX is a light effect with high output and great effects. • DMX-control via standard DMX-controller • 1, 2, 5 or 10 DMX-control channels required depending on your setup • 16 built-in programs subject to Speed and Dimmer, except for Auto & Full •... -
Page 8: Installation
Installation Installing the Lamp The Showtec Sunstrip Active uses the 240V/75W GU10 (82382) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. 10 Lamps included. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Set Up And Operation
Do not supply power before the whole system is set up and connected properly. Multiple Sunstrip Active DMX Set Up Fig. 6 Note : Link all cables before connecting electric power... -
Page 10: Operation Modes
Operation Modes The Sunstrip Active has 2 different operating modes: • 10 Channel Chaser (P) • 1, 2, 5 or 10 Channel DMX Dimmer (A) In DMX Mode , you can select: • DMX Address (A) • Channel (CH) In Chase Mode, you can select: •... -
Page 11: Chase Mode
Selecting DMX Address Mode DMX mode is indicated by an “A” followed by 3 digits (001-512) in the LED Display. Setting the DMX Address Once you have activated the DMX Mode, you can push the UP or DOWN button to change the setting from 001-512. CHASE Mode You can only use this mode when you are using the device as a Chaser. - Page 12 Selecting the Intensity (Dimming) Mode To adjust the output intensity, you must activate the Chase Dimmer Mode. Hold the MENU button until the display shows “d” followed by 2 digits Setting the Intensity Use the UP or DOWN button to change the setting from 00-100. A value of 000 means the weakest output intensity and a value of 100 means the highest output.
-
Page 13: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Sunstrip Active requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 14: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. - Page 15 Problem Probable cause(s) Remedy No power to the fixture ·Check that power is switched on and One or more cables are plugged in. Sunstrip are Primary fuse blown. ·Replace fuse. completely dead. Sunstrip reset The controller is not connected. ·Connect controller. correctly, but all 3-pin XLR Out of the controller ·Install a phase reversing cable...
-
Page 16: Product Specifications
DMX Channels: 1, 2, 5 or 10 Signal input 3-pin XLR male Signal output 3-pin XLR female Lamp Allowed lamp models*: Showtec Lamp 240V/75W GU10 (500 hr) ordercode 82382 Electro-mechanical effects DMX-control via standard DMX-controller Max. ambient temperature t : 55°C; Max. housing temperature t : 80°C... - Page 17 2005 Showtec.
