Performer Profile IP Q4
Setup and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120 V specification product on 230 V power, or vice versa.
Connect the device to the main power supply.
Shaping the Beam
The shutters are located inside the barrel. Turn the shutter controls to move the shutters back and forth to
modify the shape of the beam.

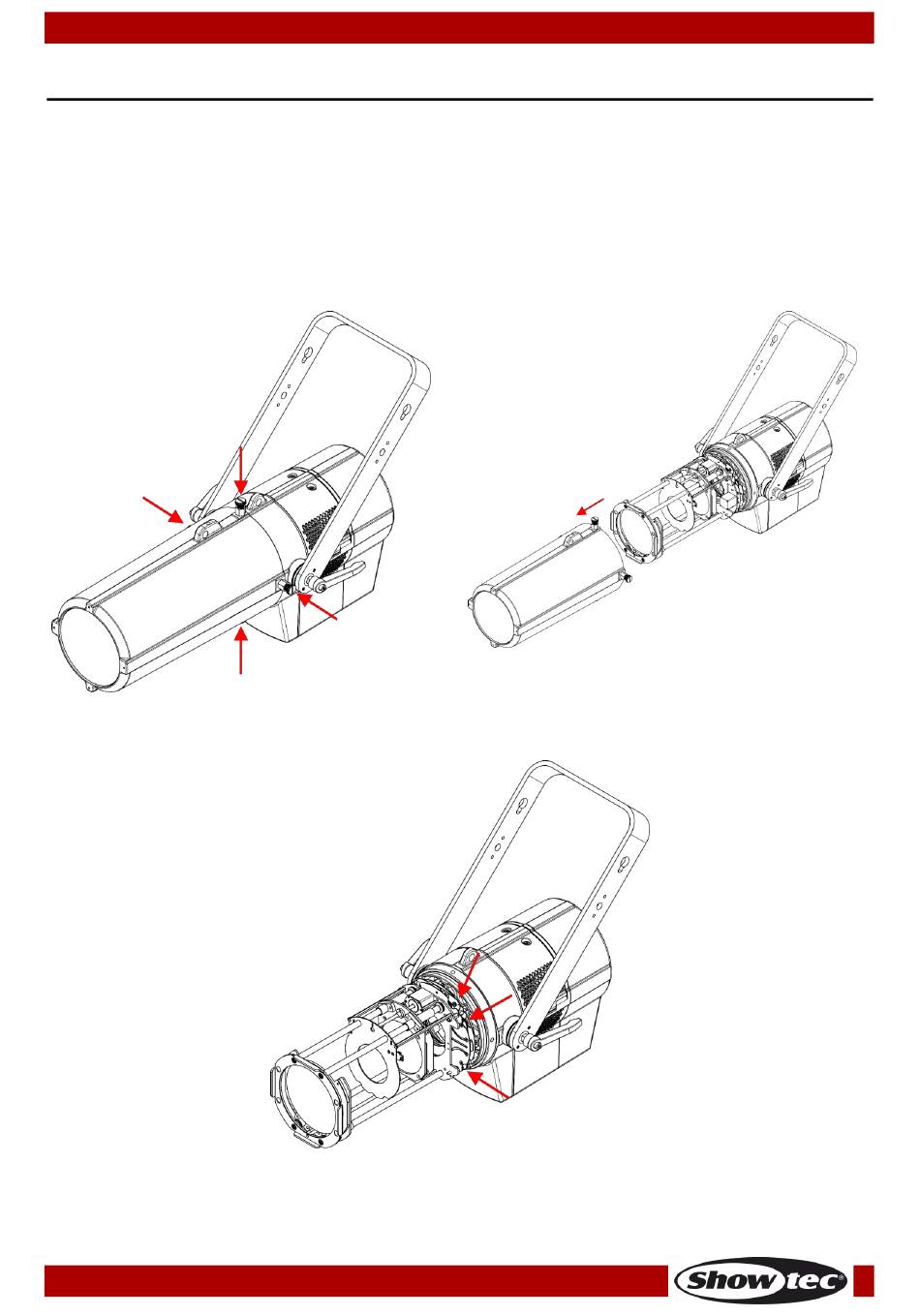

01) Loosen the 4 cover mounting screws (Fig. 07) and remove the cover (Fig. 08).
02) Move the shutter controls to position the shutters (Fig. 09). There are 6 shutter controls (2 per shutter).
03) Replace the cover and tighten the 4 mounting screws.
Order code: 33111
Fig. 07
10
Fig. 08
Fig. 09
