- Page 1 USER MANUAL ENGLISH Performer Profile Zoom 150 Q6 Product code: 33059 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Performer Profile Zoom 150 Q6 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Performer Profile Zoom 150 Q6 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Performer Profile Zoom 150 Q6 Performance ............................29 Disp Key (Display Lock) ........................29 Disp Time (Display Time) ........................29 Color Calibration ..........................30 User Calibration ..........................30 Information ..............................31 Fixture Hours ............................31 Version ..............................31 RDM ...............................31 CCT (Correlated Color Temperature Control) ..................32 Preset Color .............................32 DMX Channels ..............................33...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Performer Profile Zoom 150 Q6 ● Schuko to Power Pro True cable (1,5 m) ●... -
Page 6: Symbols And Signal Words
Performer Profile Zoom 150 Q6 Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Performer Profile Zoom 150 Q6 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. - Page 8 Performer Profile Zoom 150 Q6 WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. CAUTION Possible eye damage caused by high light intensity Possibly hazardous optical radiation emitted from this device.
-
Page 9: Requirements For The User
Performer Profile Zoom 150 Q6 This device is designed to be used as a professional indoor LED profile. Any incorrect use may lead to hazardous situations and result in injuries and material damage. ● This device is not suitable for households and for general lighting. -
Page 10: Description Of The Device

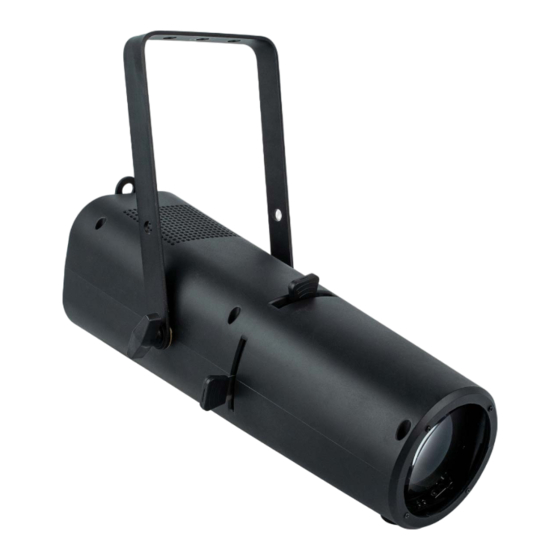

Description of the Device The Showtec Performer Profile Zoom 150 Q6 is an indoor 150-watt RGBACL LED profile with a high CRI of 95. It has a wide (manual) zoom range from 25 to 50 degrees and is dimmable from 0 to 100 % in 16-bit steps. -
Page 11: Back View
Performer Profile Zoom 150 Q6 Back View Fig. 03 06) Fuse 3,15 AL /250 V 07) Safety eye 08) OLED display and menu buttons 09) Power Pro True connector OUT 10) 5-pin DMX signal connector OUT 11) 5-pin DMX signal connector IN... -
Page 12: Product Specifications
Performer Profile Zoom 150 Q6 Product Specifications Model: Performer Profile Zoom 150 Q6 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 170 W Fuse: 3,15 AL/250 V Physical: Dimensions: 569 x 222 x 196 mm (L x W x H) (including bracket) -
Page 13: Dimensions
Performer Profile Zoom 150 Q6 Dimensions Fig. 04 Product code: 33059... -
Page 14: Installation
Performer Profile Zoom 150 Q6 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 15: Rigging
Performer Profile Zoom 150 Q6 Rigging The device can be positioned on a flat surface or mounted to a truss or other rigging structure. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. -
Page 16: Angle Adjustment
Performer Profile Zoom 150 Q6 Angle Adjustment You can adjust the angle of the device with the 2 adjustment screws (04). 01) Turn the adjustment screws (04) counterclockwise to release them. 02) Tilt the device at the desired angle (see Fig. 10). -
Page 17: Connecting To Power Supply
Performer Profile Zoom 150 Q6 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. -
Page 18: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Performer Profile Zoom 150 Q6 is not connected to a controller or to other devices, it functions as a stand-alone device. For more information about the control modes, refer to 6.2. Control Modes on page 20. -
Page 19: Dmx Cables
Fig. 07 Master/Slave Setup The Performer Profile Zoom 150 Q6 supports master/slave control mode. To connect multiple devices in a master/slave setup, follow the steps below: 01) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector. -
Page 20: Dmx Linking
In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The Performer Profile Zoom 150 Q6 has 6 personalities: 3, 7, 8, 10, 13 or 20 channels. If you want to connect multiple devices on one data link and use them in 20-channel mode, for... -
Page 21: Operation
Control Modes The Performer Profile Zoom 150 Q6 can be operated with a DMX controller, or without a DMX controller as a stand-alone device or in a master/slave setup. -
Page 22: Control Panel
Use the ENTER button to open the desired menu, to confirm your choice or to set the currently selected value. Start-up Upon start-up the display will briefly show the Showtec logo. Note: If no button is pressed after 30 seconds of inactivity, the display will turn off. -
Page 23: Menu Overview
Performer Profile Zoom 150 Q6 Menu Overview Product code: 33059... - Page 24 Performer Profile Zoom 150 Q6 Product code: 33059...
- Page 25 Performer Profile Zoom 150 Q6 Product code: 33059...
-
Page 26: Main Menu Options
Performer Profile Zoom 150 Q6 Main Menu Options The main menu has the following options: 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus. Note: Some of the submenus require a password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN, ENTER. -
Page 27: Personality (Dmx Channel Modes)
Performer Profile Zoom 150 Q6 Personality (DMX Channel Modes) In this menu you can set the DMX channel mode (personality). 01) Press the UP/DOWN buttons to select the desired DMX channel mode. There are 6 options available: BASIC: 3 channels... -
Page 28: Edit
Performer Profile Zoom 150 Q6 Edit In this menu you can edit the custom programs thus creating your own custom show. Press the UP/DOWN buttons to choose the custom program you want to edit (PROGRAM01–02). Press the ENTER button to confirm the selection. Each custom program has 10 scenes, which can be edited: Press the UP/DOWN buttons to select the desired scene. -
Page 29: Settings
Performer Profile Zoom 150 Q6 When the upload is finished, the display will show OK. Press the ENTER button to confirm and exit the submenu. Settings In this menu you can adjust the device’s settings. This menu requires the password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN. -
Page 30: Dmx Error
Performer Profile Zoom 150 Q6 DMX Error In this submenu, you can determine the behavior of the device in case of a DMX failure. Select DMX ERROR and press the ENTER button to open the submenu. Press the UP/DOWN buttons to toggle between the following 2 options: ●... -
Page 31: Color Calibration
Performer Profile Zoom 150 Q6 Color Calibration In this menu you can set/adjust the device’s calibration settings. Press the UP/DOWN buttons to choose the color calibration you want to set. Press the ENTER button to confirm the selection. User Calibration In this submenu you can adjust the device’s calibration settings. -
Page 32: Information
Press the UP/DOWN buttons to choose between the following options: ● UID: the display shows the unique identification number of the device. The model ID for the Performer Profile Zoom 150 Q6 is 0x2940C7 ● LABEL: the display shows the name of the device. -
Page 33: Cct (Correlated Color Temperature Control)
Performer Profile Zoom 150 Q6 CCT (Correlated Color Temperature Control) In this menu you can calibrate the color temperature. Press the UP/DOWN buttons to scroll through the following options: Press the ENTER button to confirm the selection. Preset Color In this menu you can choose a preset color mix. -
Page 34: Dmx Channels
Performer Profile Zoom 150 Q6 DMX Channels 3 Channels, 8 Channels, 13 Channels, 20 Channels 3 CH 8 CH 13 CH 20 CH Function Value Setting (Basic) (SSP) (TOUR) (TR16) Master 000–255 From low to high intensity (0–100 %) Dimmer Dimmer Fine 000–255... - Page 35 Performer Profile Zoom 150 Q6 3 CH 8 CH 13 CH 20 CH Function Value Setting (Basic) (SSP) (TOUR) (TR16) 191–195 Color 37 Light Pink 196–200 Color 38 Pretty'n Pink L794 201–205 Color 39 Follies Pink L328 206–210 Color 40...
- Page 36 Performer Profile Zoom 150 Q6 3 CH 8 CH 13 CH 20 CH Function Value Setting (Basic) (SSP) (TOUR) (TR16) 101–110 Dimmer Off 111–120 Dimmer Mode 4 121–150 Reserved 151–160 1200 Hz 161–170 2400 Hz 171–180 4000 Hz 181–190 6000 Hz 191–200...
-
Page 37: Channels
Performer Profile Zoom 150 Q6 7 Channels 7 CH Function Value Setting (HSIC) Intensity 000–255 From low to high intensity (0–100 %) 000–255 From low to high intensity (0–100 %) Hue Fine 000–255 From low to high intensity (0–100 %) Saturation 000–255... -
Page 38: Channels
Performer Profile Zoom 150 Q6 10 Channels 10 CH Function Value Setting (CMY) Master Dimmer 000–255 From low to high intensity (0–100 %) Cyan 000–255 From low to high intensity (0–100 %) Magenta 000–255 From low to high intensity (0–100 %) Yellow 000–255... - Page 39 Performer Profile Zoom 150 Q6 10 CH Function Value Setting (CMY) 241–245 Color 47 Cherry Rose R332 246–250 Color 48 Cool LED Bright Pink L128 251–255 No function 000–009 No function 1800 K 2200 K 2700 K 3000 K 3200 K...
- Page 40 Performer Profile Zoom 150 Q6 10 CH Function Value Setting (CMY) 191–200 25000 Hz 201–210 All Reset 211–255 Reserved Note: ● Make sure that Master Dimmer channel is open, to see the light output. ● Make sure that Color Presets or Built-in Programs or Cyan, Magenta and Yellow channels are open, if you want to use the Strobe channel.
-
Page 41: Rdm Information
Performer Profile Zoom 150 Q6 6.8. RDM Information This device supports RDM. Refer to 6.8.2. Supported RDM PIDs (Parameter IDs) for more information. 6.8.1. RDM Details ● Responder: 29B4:0C7xxxxx ● Manufacturer's ID: Showtec (Highlite International B.V.) ● Manufacturer Label: Showtec ●... -
Page 42: Supported Rdm Pids (Parameter Ids)
Performer Profile Zoom 150 Q6 6.8.2. Supported RDM PIDs (Parameter IDs) Parameter ID Value Required DISC_UNIQUE_BRANCH 0x0001 DISC_MUTE 0x0002 DISC_UN_MUTE 0x0003 COMMS_STATUS 0x0015 STATUS_MESSAGES 0x0030 STATUS_ID_DESCRIPTION 0x0031 CLEAR_STATUS_ID 0x0032 SUPPORTED_PARAMETERS 0x0050 DEVICE_INFO 0x0060 DEVICE_MODEL_DESCRIPTION 0x0080 MANUFACTURER_LABEL 0x0081 DEVICE_LABEL 0x0082 FACTORY_DEFAULTS... -
Page 43: Troubleshooting
Performer Profile Zoom 150 Q6 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 44: Maintenance
Performer Profile Zoom 150 Q6 Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●... -
Page 45: Corrective Maintenance
Performer Profile Zoom 150 Q6 Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 46: Disposal
Performer Profile Zoom 150 Q6 Disposal Correct disposal of this product Waste Electrical and Electronic Equipment This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. - Page 47 Performer Profile Zoom 150 Q6 Product code: 33059...
- Page 48 ©2023 Showtec...
