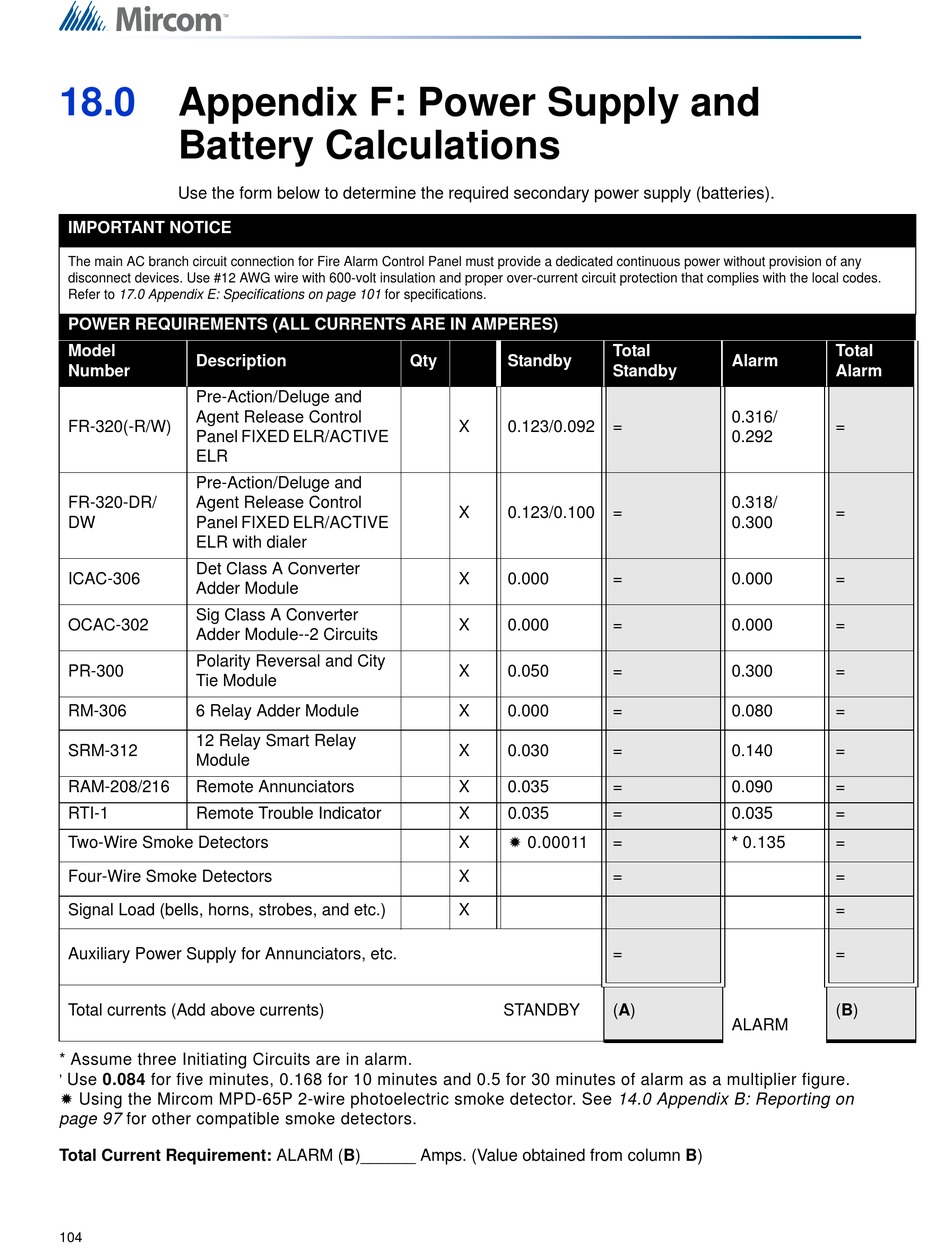

18.0 Appendix F: Power Supply and
Battery Calculations
Use the form below to determine the required secondary power supply (batteries).
IMPORTANT NOTICE
The main AC branch circuit connection for Fire Alarm Control Panel must provide a dedicated continuous power without provision of any
disconnect devices. Use #12 AWG wire with 600-volt insulation and proper over-current circuit protection that complies with the local codes.
Refer to 17.0 Appendix E: Specifications on page 101 for specifications.
POWER REQUIREMENTS (ALL CURRENTS ARE IN AMPERES)
Model
Description
Number
Pre-Action/Deluge and
Agent Release Control
FR-320(-R/W)
Panel FIXED ELR/ACTIVE
ELR
Pre-Action/Deluge and
FR-320-DR/ Agent Release Control
DW Panel FIXED ELR/ACTIVE
ELR with dialer
Det Class A Converter
ICAC-306
Adder Module
Sig Class A Converter
OCAC-302
Adder Module--2 Circuits
Polarity Reversal and City
PR-300
Tie Module
RM-306 6 Relay Adder Module
12 Relay Smart Relay
SRM-312
Module
RAM-208/216 Remote Annunciators
RTI-1 Remote Trouble Indicator
Two-Wire Smoke Detectors
Four-Wire Smoke Detectors
Signal Load (bells, horns, strobes, and etc.)
Auxiliary Power Supply for Annunciators, etc.
Total currents (Add above currents)
* Assume three Initiating Circuits are in alarm.
' Use 0.084 for five minutes, 0.168 for 10 minutes and 0.5 for 30 minutes of alarm as a multiplier figure.
 Using the Mircom MPD-65P 2-wire photoelectric smoke detector. See 14.0 Appendix B: Reporting on
page 97 for other compatible smoke detectors.
Total Current Requirement: ALARM (B)______ Amps. (Value obtained from column B)
104
Qty Standby
X 0.123/0.092
X 0.123/0.100
X 0.000
X 0.000
X 0.050
X 0.000
X 0.030
X 0.035
X 0.035
 0.00011
X
X
X
STANDBY
Total
Alarm
Standby
0.316/
=
0.292
0.318/
=
0.300
= 0.000
= 0.000
= 0.300
= 0.080
= 0.140
= 0.090
= 0.035
= * 0.135
=
=
(A)
ALARM
Total
Alarm
=
=
=
=
=
=
=
=
=
=
=
=
=
(B)
