10.1

Using the CFG-300 Tool

Connect the CFG-300 to the panel, then press
will display the Main Menu. The function of different buttons on the front panel display is
shown in Figure 25 below.
*
(left shift)
#
(right shift)

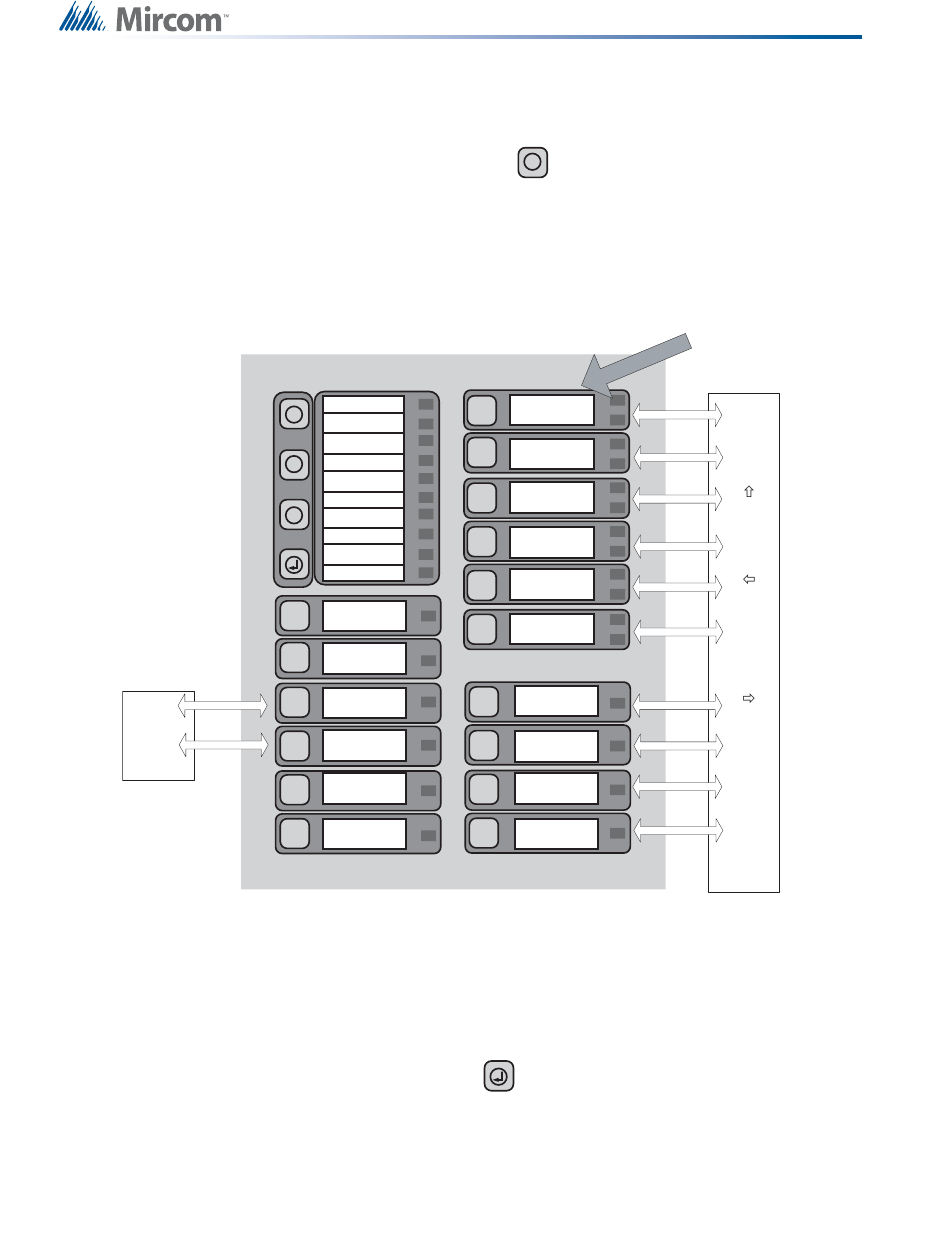

Figure 25
10.2

Entering the Passcode

The programming section is passcode protected. The following screen shows the message
that is displayed to enter the passcode. The maximum allowable passcode is ten digits long,
and permits numerical values only. Press
the passcode is correct, it will take you to the main command menu. If the passcode is wrong
the system will ask you to re-enter passcode. The system will be exhausted after three retries
and will then take you back to the Normal message display.
48
AC ON
X
COMMON ALARM
COMMON SUPV
M COMMON TROUBLE
BATTERY TROUBLE
REMOTE TROUBLE
?
GROUND FAULT
CPU FAIL
ABORT
RELEASED
SYSTEM
RESET
SIGNAL
SILENCE
AUXILIARY
DISCONNECT
LAMP
TEST
ALM/SUP/TBL/
BLDG AUDIBLE SIL
PRE
RELEASE
FR-320 Configuration
M
(Menu button). The CFG-300 LCD display
This label
removed from
this location
represents the
alternate
functions of the
corresponding
buttons in
IAC1
(ZONE 1)
IAC2
(ZONE 2)
IAC3
(ZONE 3)
IAC4
(ZONE 4)
IAC5
(ZONE 5)
IAC6
(ZONE 1)
NAC1
(ZONE 1)
NAC2
(ZONE 2)
RAC1
(ZONE 3)
RAC2
(ZONE 4)
(Enter button) after entering the passcode. If
Configuration
service mode
0
QZ
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PRS
8
TUV
9
WXY
