4.3

Set-Up

• The 501 is designed to be wall mounted via 4 bolt holes. Dimensional
drawings can be found in Appendix A.
• Connect to the power and outputs (see Section 4.5).
• For operating instructions refer to Section 2.
4.4

Mechanical Installation

The gas ports are located on the bottom surface, as is the light guide.
The transmitter version also has a connector for an optional remote display connector
and a power interrupt (service reset) button.
Electrical
Connections
Michell Instruments
WARNING: This unit is 24 V DC powered only!
Do not attempt to loop-power this instrument via
the 4–20mA output as this will irreversibly damage
the main PCB.

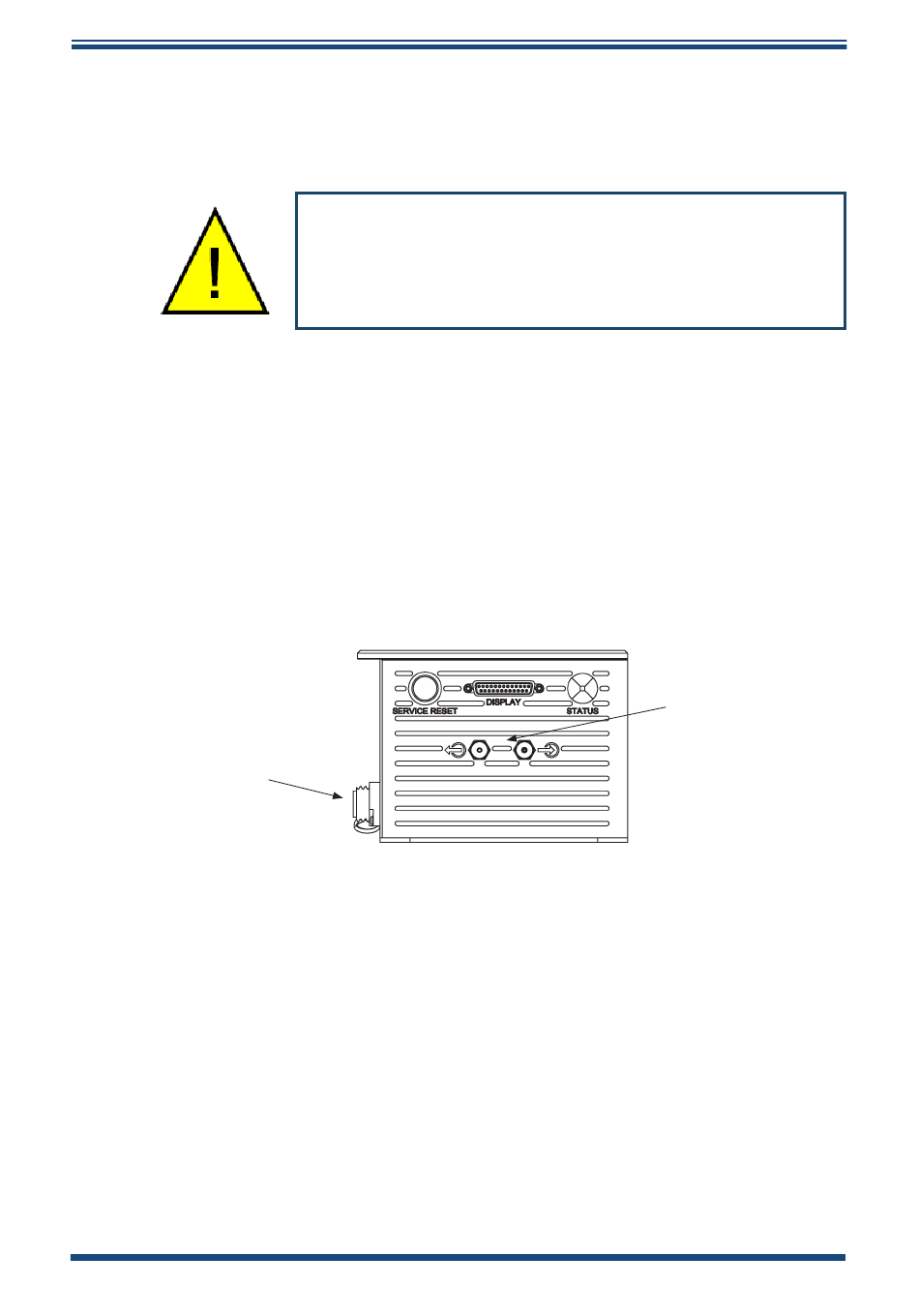

Figure 31 501 Connections
INSTALLATION
Gas
Inlet/Outlet
