8.
With 2 people working simultaneously on each side of ARRAY#1, set the inter-enclosure angles as follows:
a. While grabbing the back handle of KARA#3, remove the KARA#2 rear top R-BLP from angle hole 0°/2°/4°.
b. Rotate KARA#2 so as to align the angle arm cursor with the chosen angle label.
c. Lock KARA#2 in place by re-inserting the R-BLP into the corresponding angle hole (0°/2°/4° or
1°/3°/5°/7.5°/10°).
d. Repeat the procedure for KARA#3.
9.
Bring another full KARA flight-case to the rigging location and remove the lid. Direct the front face of the KARA
array towards the audience. In the following, the array will be designated as ARRAY#2 and the enclosures as
KARA#4 to KARA#6 from top to bottom.
10. Check the inter-enclosure attachments in ARRAY#2 by applying step 2.
11. On KARA#4, open both front arms as follows (repeat for each one): remove the front top R-BLP from its
storage hole, rotate the front arm up, and slide it down. Do NOT re-insert the R-BLP.
12. Raise ARRAY#1 slightly higher than the front arms of ARRAY#2 and place ARRAY#2 beneath ARRAY#1.
KARA_SRM_EN_1-0
® ® ® ®
WST
WST
WST
SYSTEM
SYSTEM
SYSTEM
SYSTEM
kara- - - - minibu
kara
minibu
kara
kara
minibu
minibu
d.
L

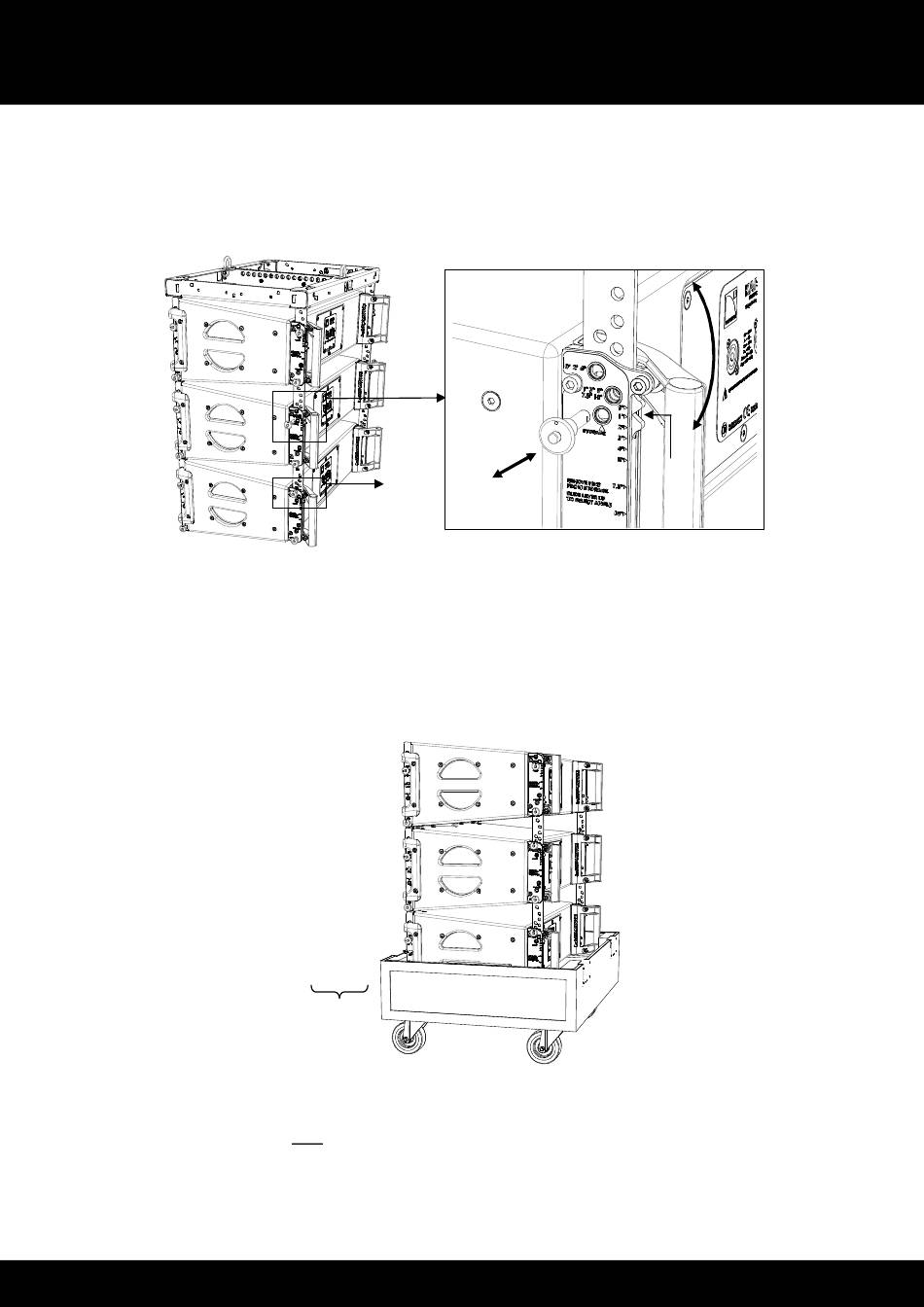

Figure 10: Setting the ARRAY#1 inter-enclosure angles
KARA#4
KARA#5
KARA#6
ARRAY#2
Figure 11: ARRAY#2 enclosure numbering convention
w w w . l - a c o u s t i c s . c o m
c.
a.
Cursor
L
L
b.
L
14
