b. Stud inserted into slit

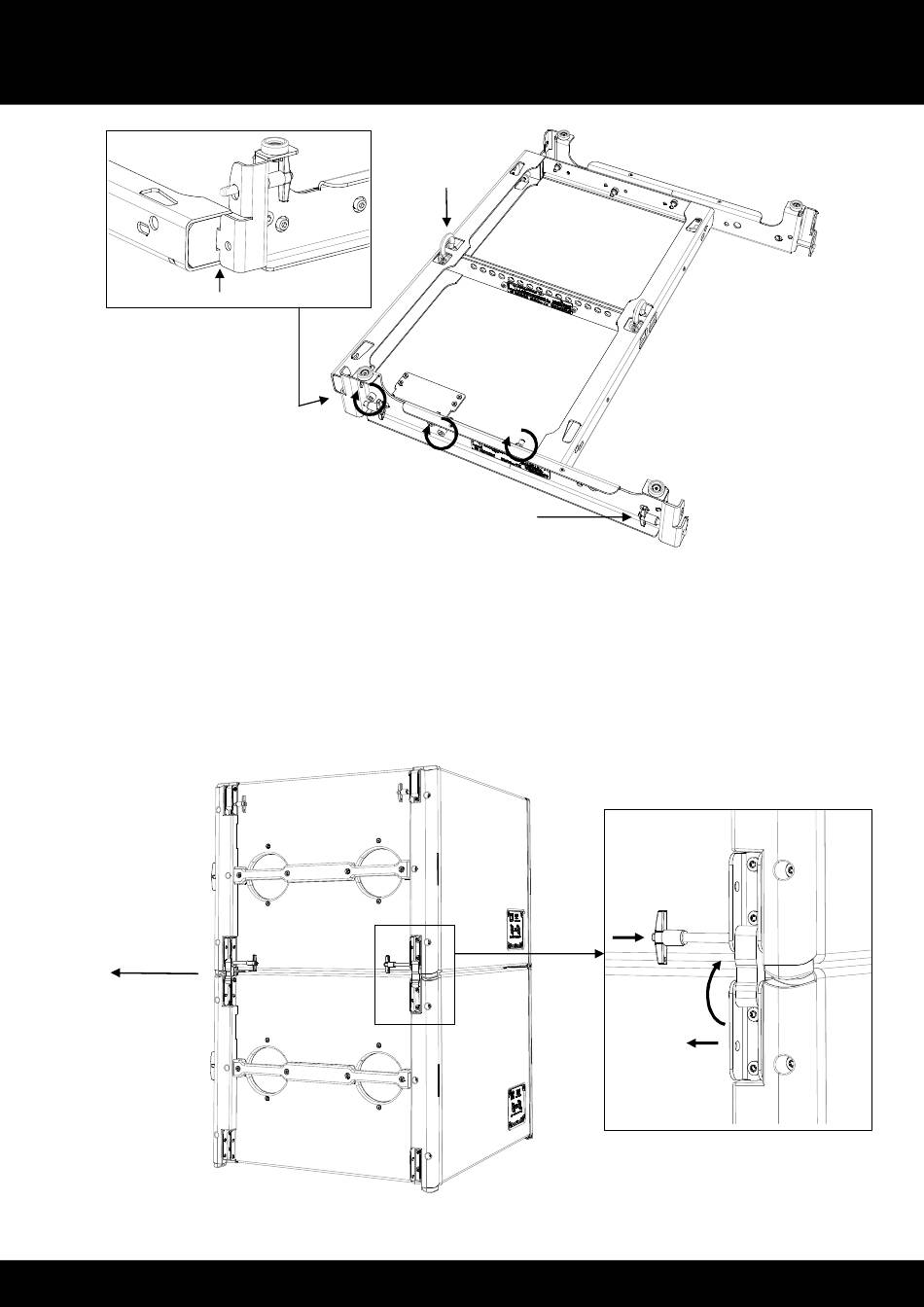

Figure 21: Assembling a KARA-MINIBU/KARAMINIBUEX rigging structure
2. Assemble two SB18 (hereafter called SB18#1 and SB18#2) at the rigging location as follows:
a. Bring two SB18 to the rigging location and remove the dolly boards.
b. Arrange both SB18 in a vertical array, front faces towards audience and logos down. In the following, SB18#1
will designate the top subwoofer and SB18#2 the bottom one.
c. Remove a T-BLP from SB18#2, rotate the link arm up, and re-insert the T-BLP into the SB18#1 link point and
the link arm. Repeat this procedure until all four arms are secured.
SB18#1
Towards audience
SB18#2
KARA_SRM_EN_1-0
® ® ® ®
WST WST WST SYSTEM SYSTEM SYSTEM SYSTEM
kara- - - - minibu kara minibu
kara kara minibu minibu
Shackle (x2)
Identification plate
Laser plate
c. Bolts (x3)
T-BLP (x4)
Figure 22: Assembling two SB18
