L-Acoustics KARA MODULAR WST SYSTEM Rigging Procedures page 21

10. Remove ARRAY#2 from the rigging location and put the flight-case lid on.
11. Lower the array to a height for which the angle arms of ARRAY#1 are within comfortable reach and set the angles
to 0° by applying step 4.
12. Bring another empty flight-case to the rigging location, remove the lid, and place the tray beneath ARRAY#1.
Pay attention to the tray position: both wedges must slope upwards from front to rear [5.4].
WARNING
13. Lower ARRAY#1 into the tray. Lower the motor chain(s) so as to release tension.
14. Separate the KARA-MINIBU from KARA#1 as follows:
a. Detach the motor hook(s) or stinger(s) from the KARA-MINIBU.
b. Remove the four R-BLP from the KARA-MINIBU.
c. Separate the KARA-MINIBU from KARA#1 and re-insert the four R-BLP into the same holes.
KARA_SRM_EN_1-0

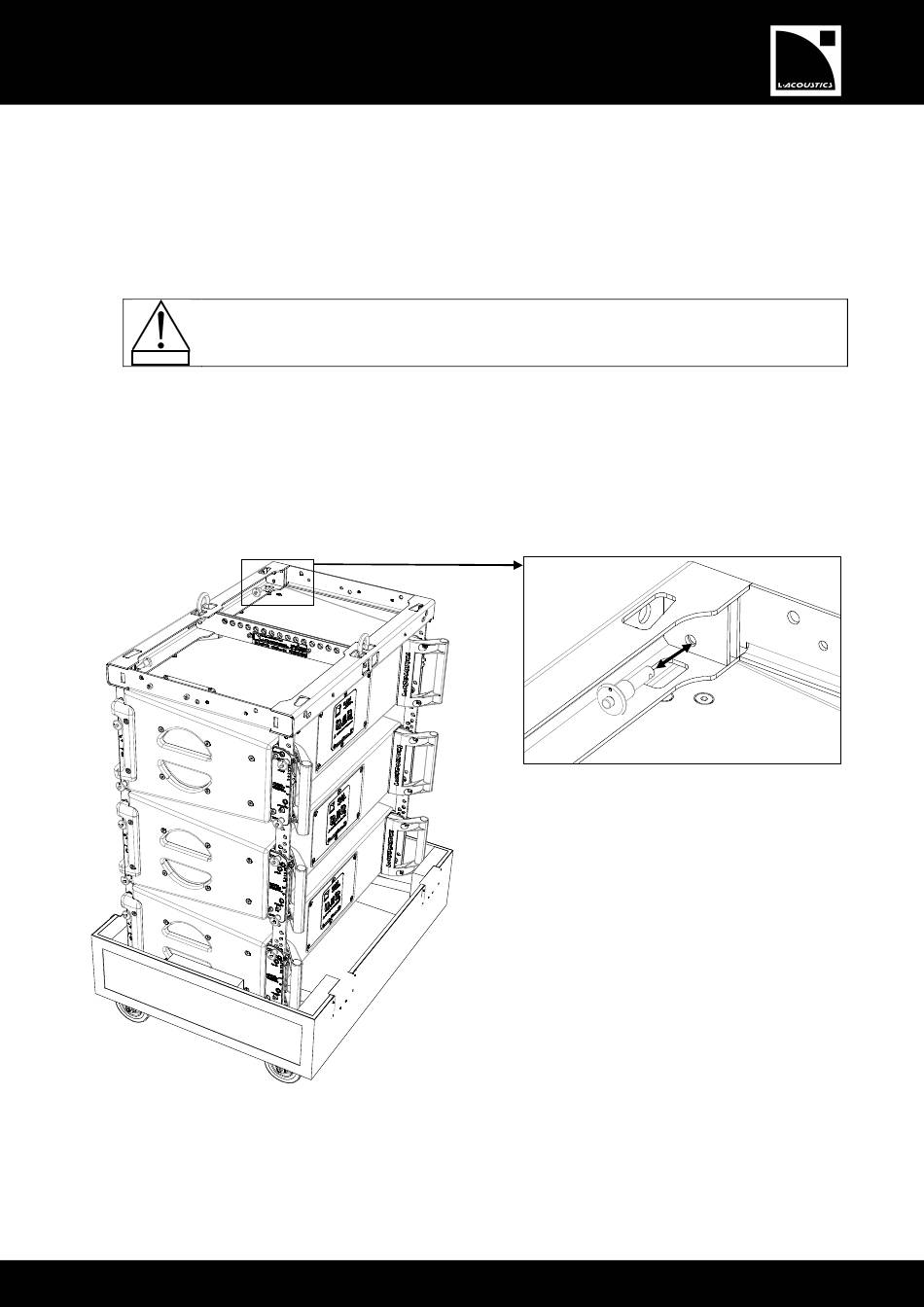

Figure 19: Separating KARA-MINIBU from KARA#1
w w w . l - a c o u s t i c s . c o m
(x4)
c.
b.
19 19 19 19
