8. Remove the four KARA#1 bottom R-BLP from their link holes and re-insert them into their storage holes.
(x2)
9.
Turn the KARA#1/platform assembly feet on the ground and front face towards audience.
10. Open the four KARA#2 arms by applying step 6.
11. Remove the four KARA#2 bottom R-BLP from their link holes and re-insert them into their storage holes (see
step 8).
KARA_SRM_EN_1-0
® ® ® ®
WST WST WST SYSTEM SYSTEM SYSTEM SYSTEM
kara- - - - minibu kara minibu
kara kara minibu minibu
KARA#1
KARA#2
KARA#3

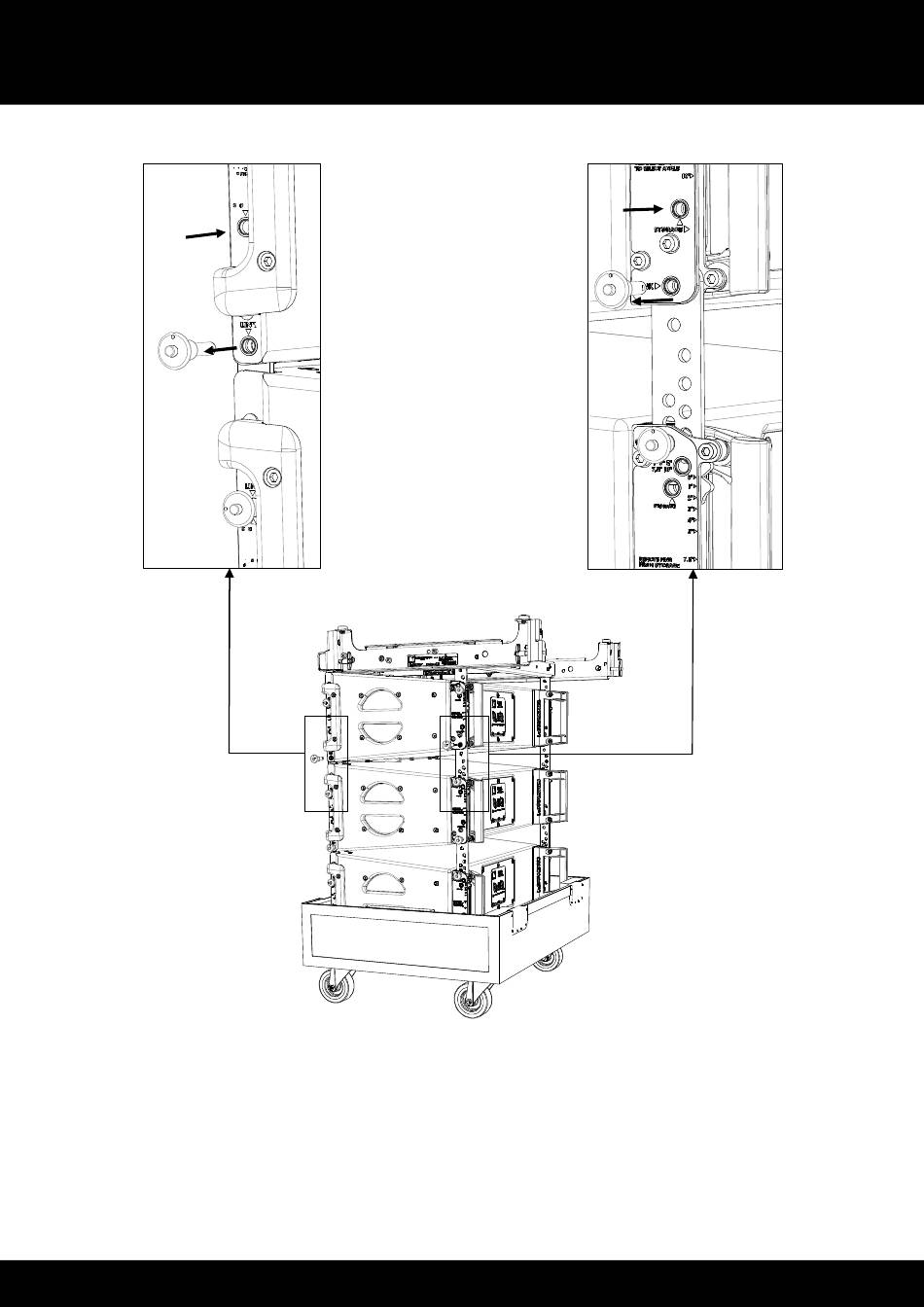

Figure 39: Removing the bottom R-BLP from KARA#1
