16. Attach KARA#2 to KARA#1 as follows:
a. Turn KARA#2 arms pointing down and front face towards the audience.
b. Align the four arms with the KARA#1 link points.
c. Secure the link points together by removing the four KARA#1 top R-BLP from their storage holes and re-
inserting them into their link holes.
b.
L
c.
KARA_SRM_EN_1-0
® ® ® ®
WST WST WST SYSTEM SYSTEM SYSTEM SYSTEM
kara- - - - minibu kara minibu
kara kara minibu minibu
KARA#2
KARA#1
SB18#2
SB18#1

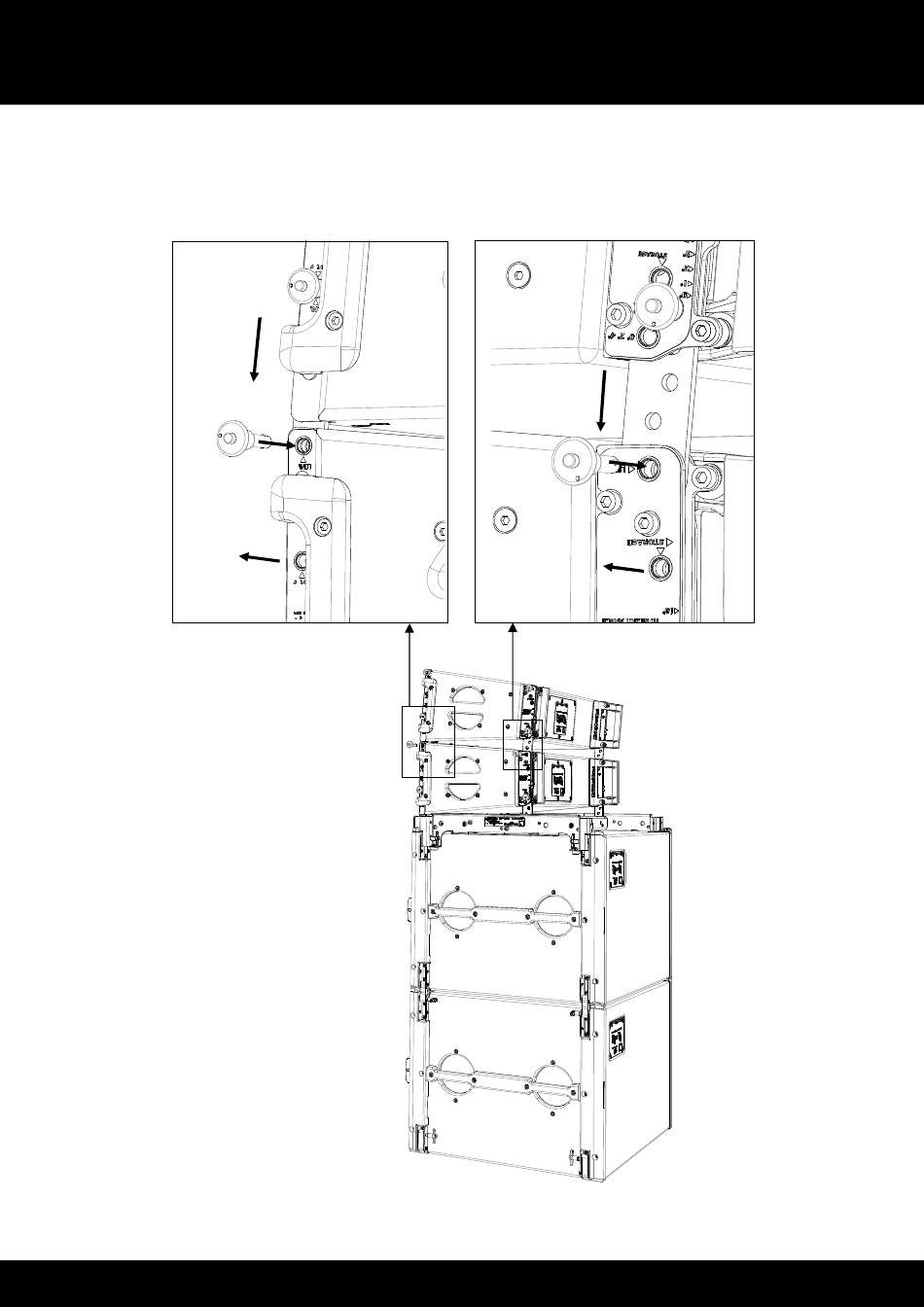

Figure 55: Attaching KARA#2 to KARA#1
