5XT
COAXIAL ENCLOSURE
RIGGING MANUAL
VERSION 1.0
w w w . l - a c o u s t i c s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5XT and is the answer not in the manual?

Questions and answers

Related Manuals for L-Acoustics 5XT

Summary of Contents for L-Acoustics 5XT

  • Page 1 COAXIAL ENCLOSURE RIGGING MANUAL VERSION 1.0 w w w . l - a c o u s t i c s . c o m...
  • Page 2 Do not stack the loudspeaker array on unstable ground or surface. If the array is stacked on a structure, platform, or stage, always check that the latter can support the total weight of the array. As a general rule, L-ACOUSTICS ®...

  • Page 3: Table Of Contents

    This document contains essential information on rigging the system properly and safely. Carefully read this document in order to become familiar with these procedures. As part of a continuous evolution of techniques and standards, L-ACOUSTICS ® reserves the right to change the specifications of its products and the content of its documents without prior notice.

  • Page 4: Rigging System

    Software application SOUNDVISION Proprietary 3D acoustical and mechanical modeling software. Other 5XT SYSTEM components All the other components of the system are presented in the 5XT user manual, document intended to describe the enclosures operation and connection. SOUNDVISION ETR5 Main components involved in the 5XT rigging process w w w .

  • Page 5: Mechanical Safety

    2 MECHANICAL SAFETY Maximum configurations The 5XT rigging system complies with BGV-C1 (2012), DIN 18800 and EN ISO 12100-1 (2004) when SOUNDVISION software does not indicate any stress warning. Mechanical safety of the rigging system Before any installation, always model the system in SOUNDVISION and check the Mechanical Data section for any stress warning or stability warning.

  • Page 6: System Setup

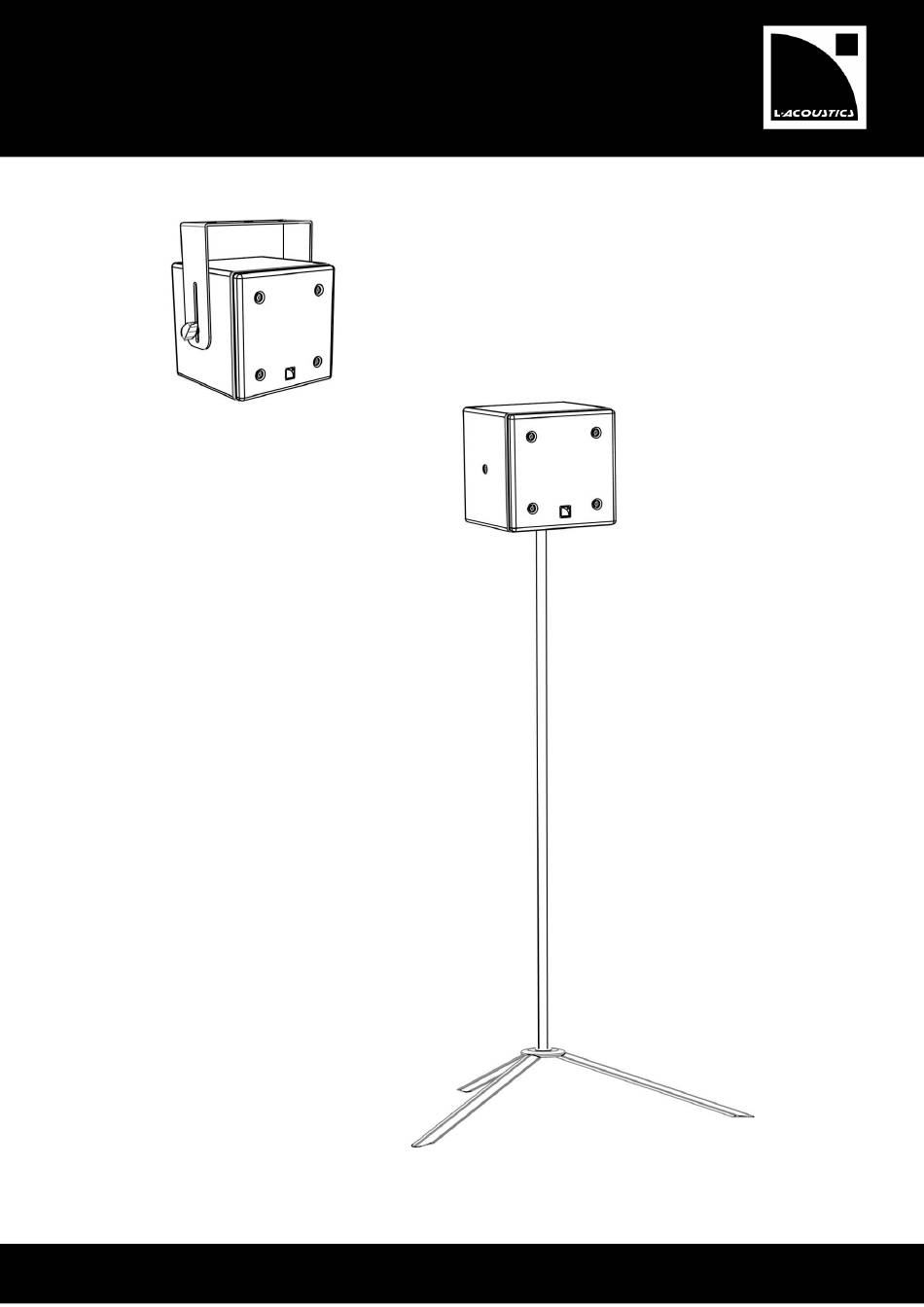

    Refer to PROCEDURE A.  Attach the ETR5 to the flying structure.. Pole-mounting The 5XT has a 3/8" insert on the bottom side of the cabinet to mount the enclosure on a European microphone-stand. Pole-mounting  Mount the enclosure on the microphone-stand.

  • Page 7: Subset Procedures

    4 SUBSET PROCEDURES PROCEDURE A Attaching the ETR5 on the 5XT Tools Electric screwdriver with torque selector. T30 bit. Remove the screw from the insert on both sides of the enclosure. Use a T30 bit. Slide the metal washers on the knobs in this order: plain washer | Grower washer | plain washer.
  • Page 8 5XT COAXIAL ENCLOSURE rigging manual VERSION 1.0 Tools Electric screwdriver with torque selector. T30 bit.  PROCEDURE A Order of the washers. Removing the screw. Adjusting the angle and height and thightening the knobs. w w w . l - a c o u s t i c s . c o m...

  • Page 9: Appendix A: Etr5 Storage Position

    APPENDIX A: ETR5 STORAGE POSITION When the 5XT is stored the ETR5 can be used to protect the connectors at the back of the enclosure as illustrated below. w w w . l - a c o u s t i c s . c o m...

  • Page 10: Appendix B: 5Xt And Etr5 Dimensions

    5XT COAXIAL ENCLOSURE rigging manual VERSION 1.0 APPENDIX B: 5XT AND ETR5 WEIGHT AND DIMENSIONS 3.5 kg / 7.7 lb ETR5 0.7 Kg / 1.55 lb w w w . l - a c o u s t i c s . c o m...
  • Page 11 Document reference: 5XT_RM_EN_1.0 Distribution date: November 23, 2012 © 2012 L-ACOUSTICS ® . All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.
