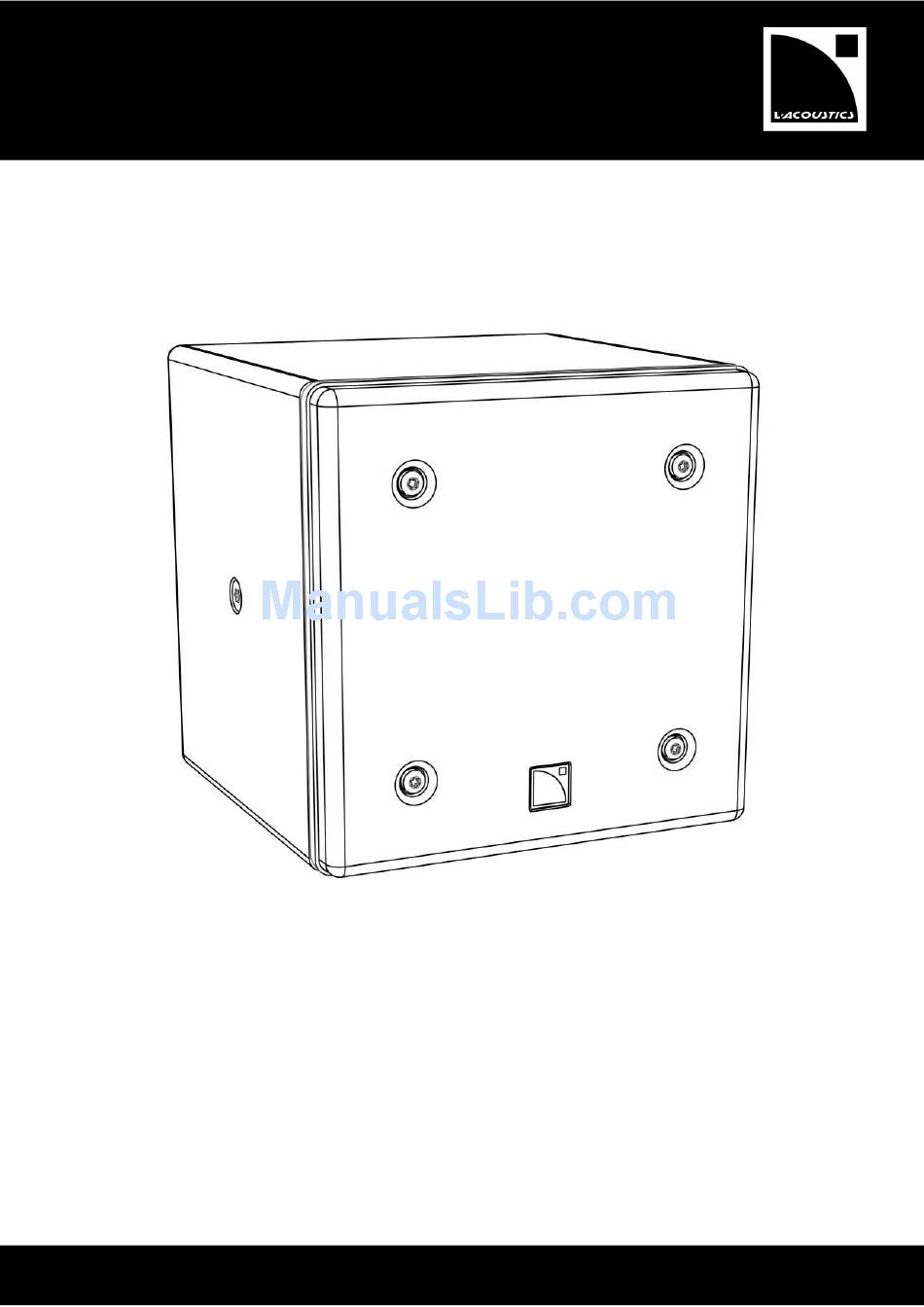

- Page 1 COAXIAL ENCLOSURE USER MANUAL VERSION 1.0 w w w . l - a c o u s t i c s . c o m...
-
Page 2: Safety Instructions
Heed all SAFETY INSTRUCTIONS as well as DANGER and OBLIGATION warnings ® Never incorporate equipment or accessories not approved by L-ACOUSTICS Read all the related PRODUCT INFORMATION documents before exploiting the system The product information document is included in the shipping carton of the related system component. -
Page 3: Table Of Contents
This document contains essential information on using the system properly. Carefully read this document in order to become familiar with the system. ® As part of a continuous evolution of techniques and standards, L-ACOUSTICS reserves the right to change the specifications of its products and the content of its documents without prior notice. -
Page 4: Xt Range
SOUNDVISION 3D simulation software. The LA4 and LA8 amplified controllers and their preset libraries constitute an extremely advanced and precise drive system for the XT enclosures. All L-ACOUSTICS amplified controllers feature the L-DRIVE, a thermal and over- excursion protection circuit. -
Page 5: System Components
This cable is not provided and needs to be custom made. speaker cable 2.5 mm² 2.5 mm² cable used to connect 5XT enclosures in parallel for fixed installation. Breakout cable for two passive enclosures with CC4FP adapter. SP-Y1 One 4-point SpeakON ®... - Page 6 CC4FP DO.7 DO10 DO25 SP10 DOSUB-LA8 SP25 LA Network Manager Soundvision 5XT system components (excluding rigging elements and modulation cables) w w w . l - a c o u s t i c s . c o m 5XT_UM_EN_1.0...
-
Page 7: Loudspeaker Configurations
3 LOUDSPEAKER CONFIGURATIONS Point source In this configuration, the 5XT system operates over the nominal frequency range of the enclosure. The 5XT enclosure is driven by the LA4 or LA8 amplified controller with a factory preset. Standalone 5XT Enclosure [PRESET]... -
Page 8: Point Source With Low-Frequency Element
In this configuration, the frequency range of the 5XT system is extended in the low end. Each enclosure type is driven by the LA4 or LA8 amplified controller with factory presets. The 5XT enclosure is driven with the same preset as in point source configuration. The SB15m subwoofer is driven with a preset featuring an upper frequency limit at 100 Hz, for an optimal acoustic coupling with the enclosure. -
Page 9: Loudspeaker Connection
The 5XT is a 2-way passive enclosure equipped with two 4-point SpeakON connectors wired in parallel and 2 screw terminals. The IN connector allows receiving the audio signals. The LINK connector allows routing them to another 5XT enclosure in parallel. Each screw terminal acts as IN and LINK. -
Page 10: Custom Speakon ® To Bare Wire Cable
Each wire is color-coded (red, black, yellow and white) and corresponds to a channel and polarity (1+ and 1-, 2+ and 2-). The information given here only apply to SP cables. The color codes descibed here are specific to L-ACOUSTICS ®... -
Page 11: Connection To La4
To connect the 5XT to the LA4, three options are available. Option A Maximum of 16 enclosures per LA4 Four 5XT enclosures can be connected to each output channel on the LA4. Therefore, a single LA4 amplified controller can drive up to 16 enclosures. Impedance load 16 Ω... - Page 12 VERSION 1.0 Option B Maximum of 16 enclosures per LA4 Four 5XT enclosures can be connected to each output channel on the LA4. Therefore, a single LA4 amplified controller can drive up to 16 enclosures. Impedance load 16 Ω for 1 enclosure, 8 Ω for 2 enclosures and 4 Ω for 4 enclosures.
- Page 13 Turn off the amplified controller before any operation on the terminals. Maximum of 16 enclosures per LA4 Four 5XT enclosures can be connected to each output channel on the LA4. Therefore, a single LA4 amplified controller can drive up to 16 enclosures.
-
Page 14: Connection To La8
To connect the 5XT to the LA8, two options are available. Option A Maximum of 24 enclosures per LA8 Six 5XT can be connected in parallel to each output channel on the LA8. Therefore, a single LA8 amplified controller can drive up to 24 enclosures. Impedance load 16 Ω... - Page 15 Option B Maximum of 24 enclosures per LA8 Six 5XT can be connected in parallel to each output channel on the LA8. Therefore, a single LA8 amplified controller can drive up to 24 enclosures. Impedance load 16 Ω for 1 enclosure, 8 Ω for 2 enclosures, 4 Ω for 4 enclosures and 2,7 Ω for 6 enclosures in parallel.
- Page 16 Turn off the amplified controller before any operation on the terminals. Maximum of 24 enclosures per LA8 Six 5XT can be connected in parallel to each output channel on the LA8. Therefore, a single LA8 amplified controller can drive up to 24 enclosures.
-
Page 17: Appendix Apreset Description
APPENDIX A PRESET DESCRIPTION [5XT]: full-range The same preset is used for the 5XT enclosure in Point-source configuration, or in Point-source with low-frequency element configuration (with SB15m subwoofers). Accessible (O) and blocked (X) parameters Inputs/Outputs Elements to connect Routing *... - Page 18 VERSION 1.0 APPENDIX C 5XT SPECIFICATIONS 2-way passive coaxial enclosure, amplified by LA4 or LA8 Description 95 Hz – 20 kHz ([5XT] preset) Usable bandwidth (-10 dB) 119 dB ([5XT] preset) Maximum SPL 110° axi-symmetric Coverage angle (-6 dB) LF: 1 ×...
- Page 19 Document reference: 5XT_UM_EN_1.0 Distribution date: November 23, 2012 ® © 2012 L-ACOUSTICS . All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.
