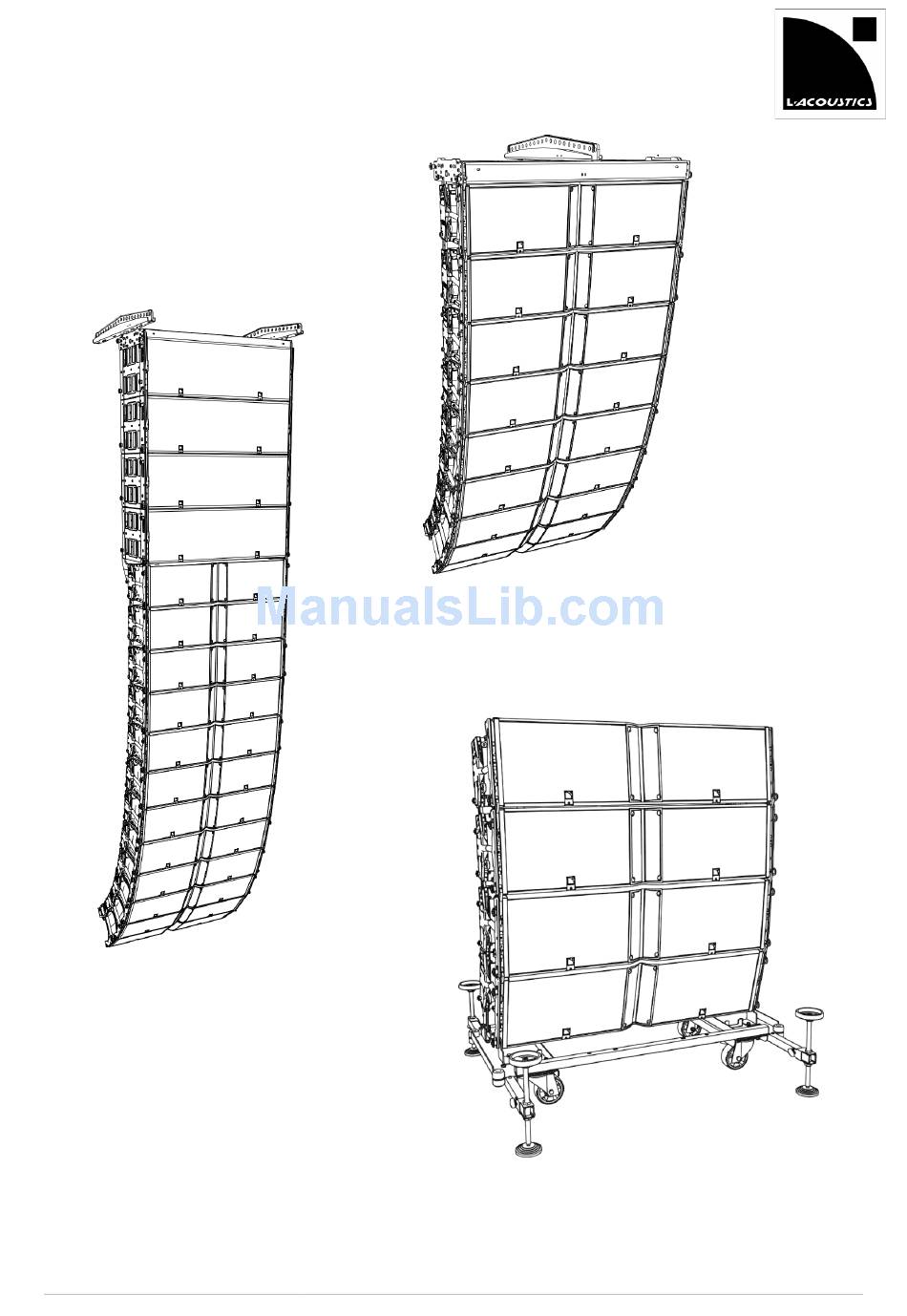

K2
WST
enclosure
®
RIGGING MANUAL
VERSION 3.0
w w w . l - a c o u s t i c s . c o m
1 / 76
K2_RM_EN_3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K2 WST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for L-Acoustics K2 WST

Summary of Contents for L-Acoustics K2 WST

  • Page 1 enclosure ® RIGGING MANUAL VERSION 3.0 w w w . l - a c o u s t i c s . c o m 1 / 76 K2_RM_EN_3.0...

  • Page 2: Safety Instructions

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 SAFETY INSTRUCTIONS Read this manual Follow all SAFETY INSTRUCTIONS as well as DANGER and OBLIGATION warnings Never incorporate equipment or accessories not approved by L-ACOUSTICS ® Read all the related PRODUCT INFORMATION documents before exploiting the system The product information document is included in the shipping carton of the related system component.
  • Page 3 WELCOME TO L-ACOUSTICS ® Thank you for choosing the L-ACOUSTICS ® K2 WST ® system. This document contains essential information on rigging the system properly and safely. Carefully read this document in order to become familiar with these procedures. As part of a continuous evolution of techniques and standards, L-ACOUSTICS reserves the right to ®...

  • Page 4: Table Of Contents

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 CONTENTS K2 RIGGING SYSTEM Loudspeaker enclosure ................................6 Rigging elements ..................................6 Software application ..................................6 Transportation and storage accessories ............................6 MECHANICAL SAFETY Mechanical limits ..................................8 Assessing mechanical safety ................................. 9 RIGGING SYSTEM DESCRIPTION Elements for enclosure rigging ..............................
  • Page 5 APPENDIX A: PICKUP POINTS GUIDELINES K2-BUMP with LA-RAK ..................................58 K2-BUMP with no LA-RAK ................................... 60 K1-DELTA for azimuth control ................................61 APPENDIX B: INSTALLING A LASER INCLINOMETER TEQSAS ® LAP-TEQ .................................... 62 SSE PROSIGHT .................................... 63 K2-LASERMOUNT .................................... 64 APPENDIX C: SPECIFICATIONS ....................................

  • Page 6: K2 Rigging System

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 1 K2 RIGGING SYSTEM The system approach developed by L-ACOUSTICS consists in providing packaged solutions for loudspeaker systems ® in order to guarantee the highest and most predictable level of performance at any step: modeling, installation, and operation.
  • Page 7 K1-SB LA-RAK K2-BUMP K2-BAR K2-RACKMOUNT K2-LINK K1-DELTA K2-JACK K2-CHARIOT K2-RIGBAR K1-BPCHAIN LA-SLING2T SOUNDVISION Main components involved in the K2 rigging process w w w . l - a c o u s t i c s . c o m 7 / 76 K2_RM_EN_3.0...

  • Page 8: Mechanical Safety

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 2 MECHANICAL SAFETY Mechanical limits The K2 rigging system complies with 2006/42/EC: Machinery Directive. It has been designed following the guidelines of BGV-C1. 2006/42/EC: Machinery Directive specifies a safety factor of 4:1 against the rupture. The limits specified in the tables below correspond to a safety factor of 4:1 or higher for flown deployments.

  • Page 9: Assessing Mechanical Safety

    Assessing mechanical safety In order to assess the actual safety of any array configuration before implementation, refer to the following warnings: Rated working load limit (WLL) is not enough The rated WLL is an indication of the element resistance to tensile stress. For complex mechanical systems such as loudspeaker arrays, WLLs cannot be used per se to determine the maximum number of enclosures within an array or to assess the safety of a specific array configuration.

  • Page 10: Rigging System Description

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 3 RIGGING SYSTEM DESCRIPTION K2 enclosures can be ground-stacked and flown independently (K2-BUMP) or in combination with K1 system elements (K1, K1-SB, or K1-BUMP). The K2-BUMP is designed to be directly compatible with K1 and K1-SB. The K2 enclosure rigging system requires the K2-LINK interface to be compatible with the K1 rigging system.

  • Page 11: Elements For Storage And Transportation

    Elements for storage and transportation The K2-CHARIOT is designed for the transportation and storage of blocks of four K2 enclosures. During transportation the blocks must have an inter-enclosure angle of 10° to avoid any separation of the enclosures. This angle must be set using the enclosure rear rigging arm pin. The automatic locking system must remain unloaded. The K2-CHARIOT rear rigging arm must be at its -15°...

  • Page 12: Elements For Ground-Stacking

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 Elements for ground-stacking The K2-CHARIOT, combined with two K2-JACK stabilizers, is used as a stacking platform for K2 enclosures. TIPPING HAZARD Always install the K2-JACK stabilizers before: - setting the inter-enclosure angles - changing the position of the K2-CHARIOT rear rigging arms w w w .

  • Page 13: Elements For Flying

    Elements for flying The K2-BUMP is designed for flying line arrays of K2, K1 or K1-SB enclosures. 4 holes are available on the central bar of the K2-BUMP. Refer to your SOUNDVISION model to know which holes to use. With K1-SB and a single motor the hole n 2 provides a 0°...
  • Page 14 K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 Standard: One K2-BAR attached in the center of K2-BUMP Alternative: Two K2-BAR attached on the sides The K2-LINK is designed as an interface between the K1 and K2 rigging systems. It is used to hand K2 under K1, K1-SB or K1-BUMP.
  • Page 15 The K2-RIGBAR can be used to implement a pullback The K2-RIGBAR can also be used as the main lifting either with K2-BUMP / K2-BAR or another K2-RIGBAR. point, thus providing a lighter solution for flying K2 enclosures with one lifting point. It must be used with the LA-SLING2T.

  • Page 16: Elements For La-Rak Rigging

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 Elements for LA-RAK rigging The K2-RACKMOUNT is designed to stack one or two LA-RAK on top of a flown array. It is composed of four rails and a stabilizer. The rails are screwed on the K2-BUMP. Their number and position depend on the number of racks.
  • Page 17 When two racks are mounted side by side, the stabilizer is used to prevent the assembly from tipping or toppling over. The stabilizer traps one of the chains used to lift the assembly. 0° site angle 30° positive site angle w w w .

  • Page 18: System Setup

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 4 SYSTEM SETUP Ground-stacking Final check After the setup, always verify no yellow labels are visible on the front and on both sides of the array. K2 enclosures on K2-CHARIOT and K2-JACK ...

  • Page 19: Flying

    Flying Final check After the setup, always verify no yellow labels are visible on the front and on both sides of the array. At least one motor for each K2-BAR When using two K2-BAR, do not implement a bridle between the bars. Nobody behind the array when lifting enclosures.

  • Page 20: K2 Enclosures Under K2-Rigbar

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 Final check After the setup, always verify no yellow labels are visible on the front and on both sides of the array. Space between lifting points points The space between the two lifting points used for this configuration must be aligned with the array pickup points.

  • Page 21: K2 Enclosures Under K1 System Elements

    Final check After the setup, always verify no yellow labels are visible on the front and on both sides of the array. When using two K2-BAR, do not implement a bridle between the bars. Always use at least two motors Before setup, choose a flying option Refer to SOUNDVISION modeling and to 3.3 Elements for ground-stacking (p.

  • Page 22: Subset Procedures

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 5 SUBSET PROCEDURES Preparing a block of 4 K2 Minimum staff: 2 1. Attach a K2 enclosure on K2-CHARIOT. Fully rotate the rear rigging arms of the K2-CHARIOT. Position the K2 enclosure on the K2-CHARIOT dolly Secure the enclosure at the front using the LINK hole.
  • Page 23 2. Attach the other K2 enclosures on top of each other until the block of four is complete. While holding the handle, rotate the front rigging arm and secure it with both LINK pins. Position a K2 enclosure on the first one. Slide the rear rigging arm and secure it with both pins, in the LINK and 10°...

  • Page 24: Preset The Inter-Enclosure Angles

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 Preset the inter-enclosure angles Minimum staff: 1 On both sides: Remove the pin from its current angle hole Position the pin at the chosen angle hole and slide the rigging arm until the pin goes in.

  • Page 25: Attaching K2-Jack Stabilizers To A K2-Chariot

    Attaching K2-JACK stabilizers to a K2-CHARIOT Minimum staff: 1 K2-JACK stabilizers storage position on K2-CHARIOT K2-JACK stabilizers can be attached to K2-CHARIOT during storage. The K2-JACK stabilizers must not overlap on the wheel stops. They would prevent efficient stacking of K2- CHARIOT in storage.
  • Page 26 K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 1. Remove the two K2-JACK from the K2-CHARIOT. Remove the stabilizers from each bar Remove the bar from the K2-CHARIOT. w w w . l - a c o u s t i c s . c o m 2 6 / 76 K2_RM_EN_3.0...
  • Page 27 2. Attach the K2-JACK to the K2-CHARIOT. Insert the K2-JACK studs through the K2-CHARIOT. Raise and turn the K2-JACK handles to secure the locking system. 3. Prepare the K2-JACK stabilizers. Rotate the threaded rod counter-clockwise so the central part of the stabilizer is closest to the base. During the K2-JACK stabilizers first use dust will come off the threaded rod.
  • Page 28 K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 4. Attach the stabilzers to the bar. Insert the feet in the guides at Pivot the feet so they come Lock the feet in position by giving a both ends of the bar.

  • Page 29: Changing The Position Of The K2-Chariot Rear Rigging Arm

    Changing the position of the K2-CHARIOT rear rigging arm Minimum staff: 2 Tipping hazard When the rear rigging arms are unpinned, hold the enclosures on both sides. 1. On both sides, remove the rear rigging arm pin. w w w . l - a c o u s t i c s . c o m 2 9 / 76 K2_RM_EN_3.0...
  • Page 30 K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 2. Change the K2-CHARIOT rear rigging arm position Push the enclosures to free both arms. Use your foot to change the rear rigging arms position. w w w . l - a c o u s t i c s . c o m 3 0 / 76 K2_RM_EN_3.0...
  • Page 31 3. Secure the enclosures on the K2-CHARIOT. Guide the enclosures back on the arms. Pin the arms. w w w . l - a c o u s t i c s . c o m 3 1 / 76 K2_RM_EN_3.0...

  • Page 32: Adjusting The K2-Chariot Site Angle

    K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 Adjusting the K2-CHARIOT site angle Minimum staff: 1 1. Verify the wheels are as close as possible 2. Loosen one stabilizer bolt and tighten the other one depending of to the ground without touching it.

  • Page 33: Stacking K2 On K2-Bump

    Stacking K2 on K2-BUMP Minimum staff: 2 1. Prepare the K2 block top enclosure. Define the K2 stack site angle with the rear rigging arm. For the top enclosure of the stack, select a value between 0.25 and 7.5 and subtract 3 to obtain the final site angle. Take out and lock the rear and front rigging arms.
  • Page 34 K2 WST enclosure ® RIGGING MANUAL VERSION 3.0 3. Attach the K2 enclosure upside down On the K2-BUMP. On another K2 enclosure. The rigging arms should rest on the K2-BUMP spacers. Secure the rear arm to the lower K2 enclosure.
