L-Acoustics KARA MODULAR WST SYSTEM Rigging Procedures page 47

6. If KARA-ANGARMEX are intended to be used [9.3.2], attach two KARA-ANGARMEX to the platform as follows:
a. Remove an R-BLP from a rear corner of the KARA-MINIBU.
b. Insert the single part of a first KARA-ANGARMEX into the corner slit: position it vertically with sling ring
towards the front and indentation resting on the spacer.
c. Align the KARA-ANGARMEX and KARA-MINIBU holes and secure them together by re-inserting the R-BLP.
d. Repeat the procedure with a second KARA-ANGARMEX on the other rear corner of the KARA-MINIBU.
Front

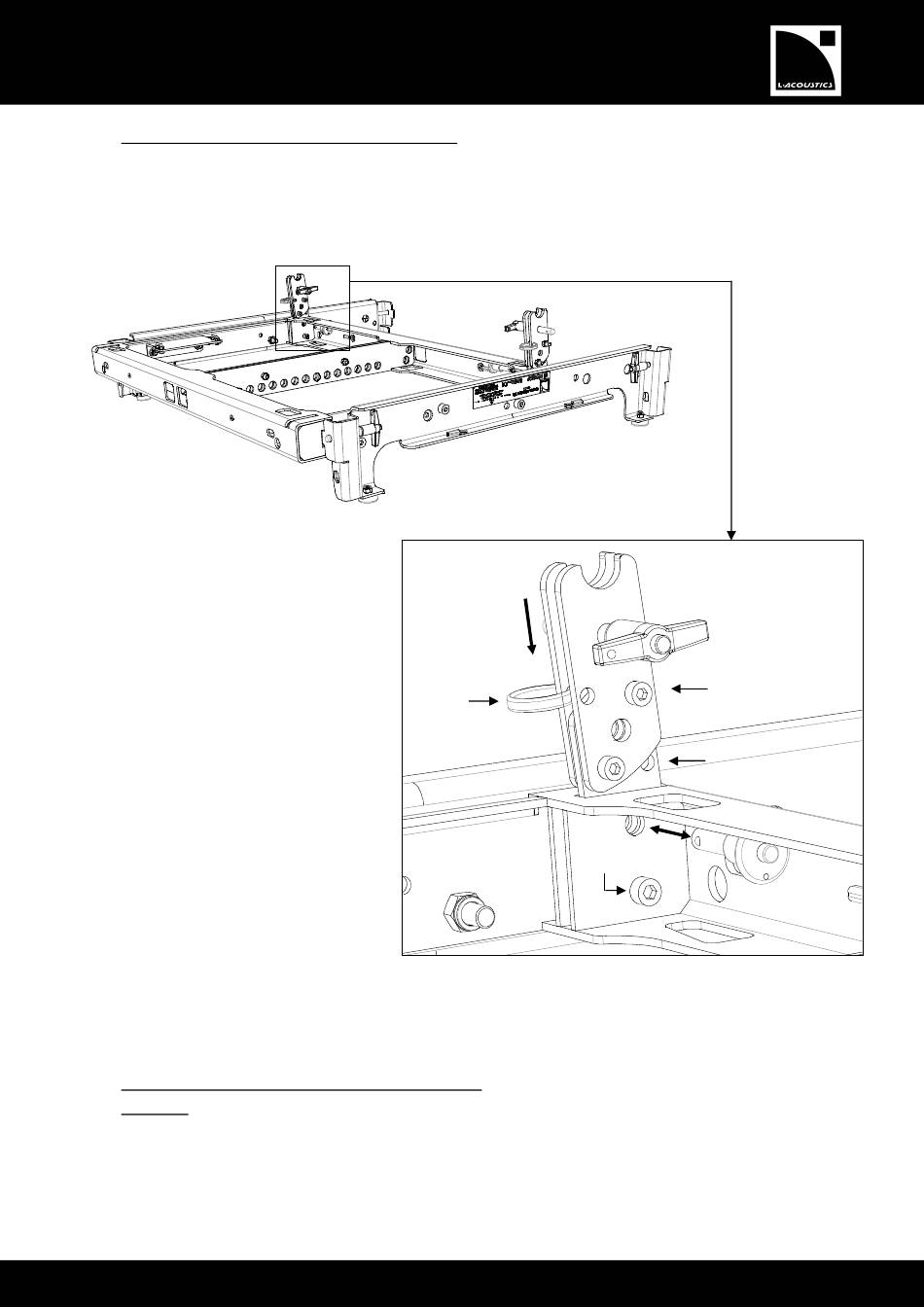

Figure 50: Attaching two KARA-ANGARMEX to the platform (rear extension configuration)
7. Remove both front R-BLP from the KARA-MINIBU.
8.
If KARA-ANGARMEX are attached to the KARA-MINIBU, remove both T-BLP from them.
Otherwise, remove both rear R-BLP from the KARA-MINIBU.
9. Bring a full KARA flight-case to the stacking location and remove the lid. In the following, the enclosures will be
designated as KARA#1 to KARA#3 from top to bottom.
