Appendix | Accessories

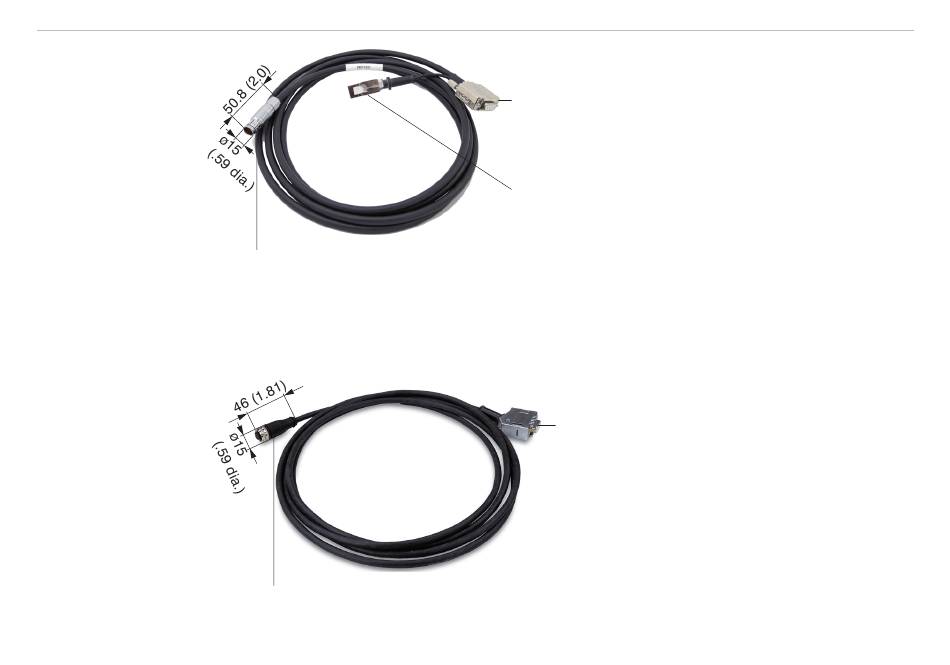

Fig. 40 PC2300-3/C-Box/RJ45 power supply and interface cable

You can adjust settings to the sensor via the RJ45 Ethernet connector using the web interface or ASCII ad-

justments.

Fig. 41 PCF1420-3/C-Box power supply and interface cable

C-Box/2A

Sensor round connector

15-pin. Sub-D

connector for connec-

tion to C-Box

RJ45 Ethernet

connector for

Ethernet (connection

to sensor via

standard LAN cable)

15-pin. Sub-D

connector for

connection to C-Box

Interface and power supply

cable to connect an ILD23xx to a

C-Box/2A,

cable length x = 3, 6, 9 or 25 m

Interface and power supply

cable to connect an ILD1420

to a C-Box/2A, cable length

x = 3, 6, 9 or 10 m

Page 76
