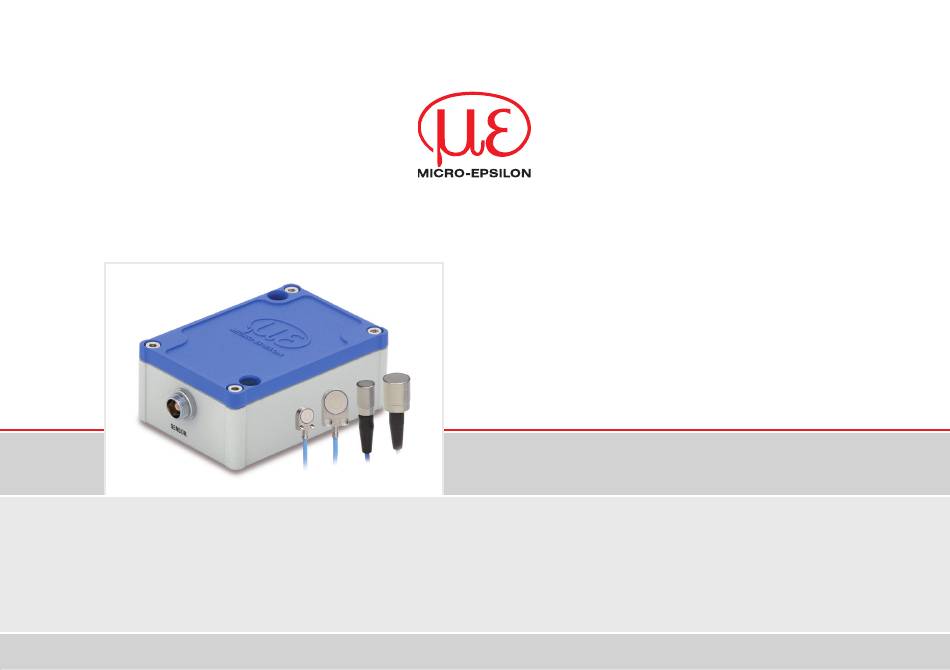

- Page 1 Quick Manual capaNCDT 6110/6112/6120 DT6110 DT6110/IP DT6112 DT6120/IP DT6120...
- Page 2 You can find more information about the measurement system in the operating 94496 Ortenburg / Germany instructions. They are available online at: Tel. +49 (0) 8542 / 168-0 www.micro-epsilon.com/download/manuals/man--capaNCDT-6110-6120--en.pdf Fax +49 (0) 8542 / 168-90 www.micro-epsilon.com/download/manuals/man--capaNCDT-6110-6120IP--en.pdf e-mail info@micro-epsilon.com www.micro-epsilon.com or on the CD supplied.
-
Page 3: Symbols Used
The supply voltage must not exceed the specified limits. > Damage to or destruction of the sensor and/or the controller Protect the sensor cable against damage. > Destruction of the sensor, failure of the measurement system. capaNCDT 6110 / 6112 / 6120 Page 3... -
Page 4: Intended Use
The measuring system must be used in such a way that no persons are endangered or machines and other mate- rial goods are damaged in the event of malfunction or total failure of the controller.. Take additional precautions for safety and damage prevention in case of safety-related applications. capaNCDT 6110 / 6112 / 6120 Page 4... -
Page 5: Proper Environment
- The space between the sensor surface and the target must have an unvarying dielectric constant. - The space between the sensor surface and the target may not be contaminated (e. g. water, rubbed-off parts, dust, etc.). capaNCDT 6110 / 6112 / 6120 Page 5... - Page 6 General Setup, Connection Options Power supply and signal output are provided via plug connectors on the front of the controller. Controller DT6120, DT6120/IP CCxxx SCAC3/5 DT6110, DT6112 DT6110/IP PS 2020 Ammeter/Voltmeter Sensor capaNCDT 6110 / 6112 / 6120 Page 6...
-
Page 7: Ground Connection, Earthing
CCxxx Voltmeter SCAC3/5 EtherCAT (optional) DT6110, DT6112 DT6110/IP Ethernet Sensor Ground Connection, Earthing Ensure sufficient grounding of the target, for example, by connecting it to the sensor or the power supply ground. capaNCDT 6110 / 6112 / 6120 Page 7... -
Page 8: Installation And Assembly
Clamping around circumference, assembly with clamp- ing collet Screwed connection from Screwed connection from bottom - High reliability - Flat clamping across cylindrical housing - Recommended assembly for e.g., machines, produc- tion facilities, etc. capaNCDT 6110 / 6112 / 6120 Page 8... - Page 9 M4 screws 83 (3.27) 95.2 (3.75) Dimensional drawing controller DT61x0/IP Dimensional drawing controller DT61xx Dimensions in mm (inches), 53 (2.09) not to scale Dimensional drawing shows the connector side of the controller DT6120 capaNCDT 6110 / 6112 / 6120 Page 9...
- Page 10 U-out (load, min 10 kOhm) Shield Cable shield, housing SCAC3/5 is a 3 m long, pre-assembled power supply and output cable. SCAC3/5 power supply and 1) Current output with DT6110/IP/I output cable capaNCDT 6110 / 6112 / 6120 Page 10...
- Page 11 (load, min 10 kOhm) blue RS485_B RS485 interface Shield Cable shield, housing SCAC3/6 is a 3 m long, pre-assembled power supply and output cable. SCAC3/6 power supply and 1) Current output with DT6120/IP/I output cable capaNCDT 6110 / 6112 / 6120 Page 11...
-
Page 12: Sensor Connection
SCAC3/6 is a 3 m long, pre-assembled power supply and output cable. 1) Digital interface with DT6120/IP/U or DT6120/IP/I only SCAC3/6/IP power supply 2) Voltage or current output and output cable Sensor Connection Connection sensor cable capaNCDT 6110 / 6112 / 6120 Page 12... -
Page 13: Operation
Disconnect the power supply before touching the sensor surface. > Static discharge, danger of injury DT6110 DT6110/ECL2 DT6110/IP/U DT6112 DT6112/ECL2 DT6110/IP/I DT6120/IP/I DT6120 DT6120/ECL2 DT6120/IP/U 0 ... 10 V 4 ... 20 mA RS485 capaNCDT 6110 / 6112 / 6120 Page 13... -
Page 14: Operation And Maintenance
Ensure that the sensor surface is always clean. occur despite our careful quality control, Before cleaning, turn off the supply voltage. MICRO-EPSILON or your dealer must be notified imme- Clean with a damp cloth and then rub the sensor diately. - Page 16 X9691316-A012020SWE MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Koenigbacher Str. 15 · 94496 Ortenburg / Germany MICRO-EPSILON MESSTECHNIK Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90 info@micro-epsilon.com · www.micro-epsilon.com *X9691316-A01*...
