Operation
5.5.9

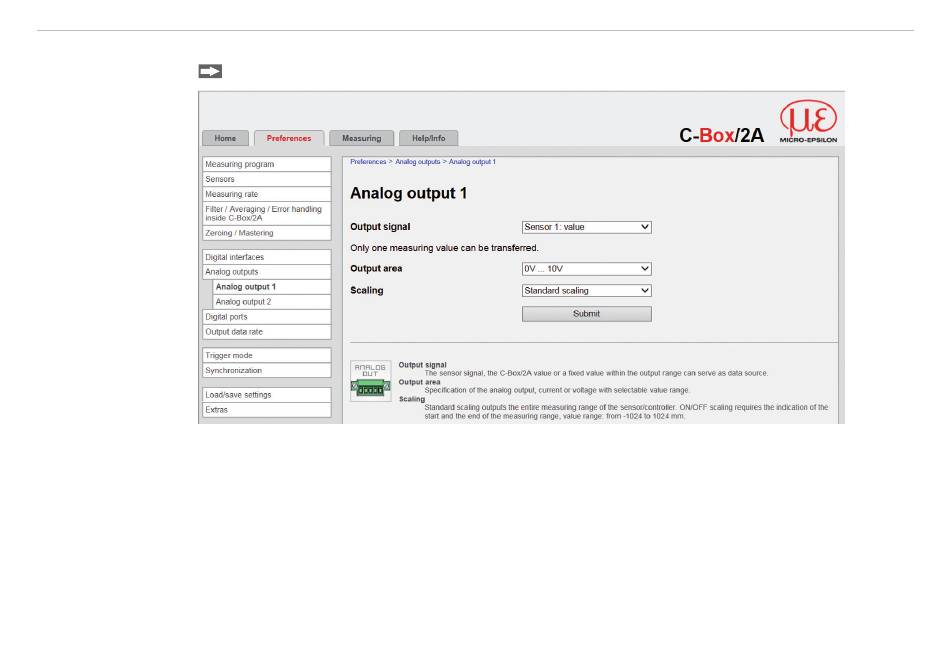

Fig. 22 View Preferences - Analog outputs
You can determine the output signal, the output area and the scaling in this view.
The output signal can be a sensor signal, see
within the output area.
C-Box/2A
Analog Outputs
Preferences
Go to the menu
Analog Outputs.
>
Fig.
22, the measurement value from C-Box/2A or a fixed value
Page 47
