MICRO-EPSILON C-Box/2A Operating Instructions Manual page 16

Installation and Mounting

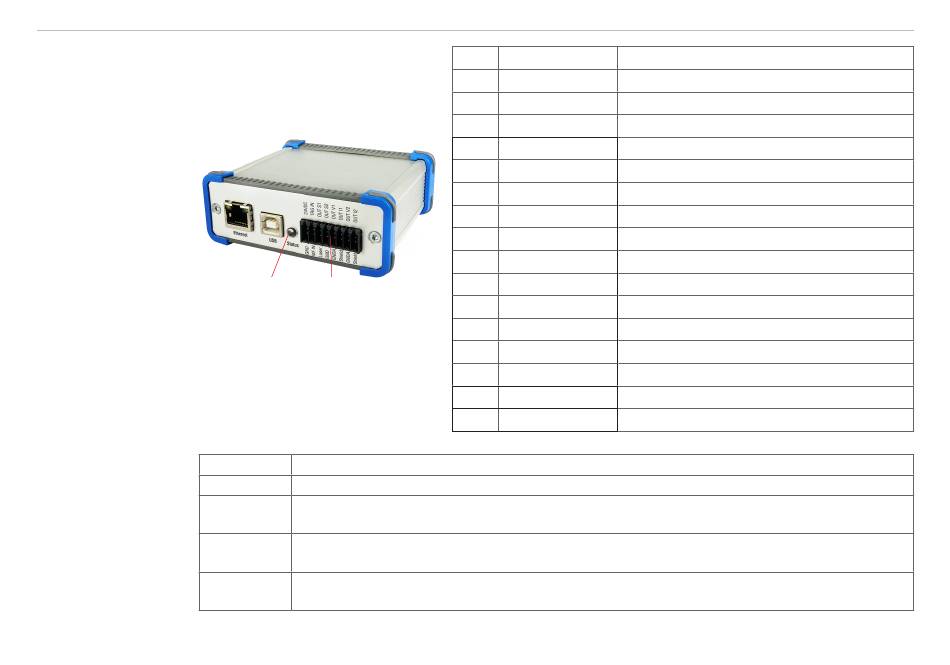

Fig. 4 Pin assignment 16-pin terminal block (4), type Phoenix
LED color
off
green
orange
rot
Fig. 5 LED description for power and USB status (3)
C-Box/2A
3
4
Description
no power supply (power off)
Power on, data output on USB interface not active or
data output on USB interface active and data communication error free
Power on, data output on USB interface active,
data communication faulty or disconnected
Power on, data output on USB interface active,
USB cable not connected or communication disconnected
Pin Designation Signal
1 24VDC Power
2 GND GND
3 TRG IN Trigger in
4 MF IN Multi function input
5 OUT S1 Switching output 1
6 Laser Laser
7 OUT S2 Switching output 2
8 GND GND
9 OUT V1 Measurement value voltage 1
10 GNDA Analog GND1
11 OUT I1 Measurement value current 1
12 Shield Schirm
13 OUT V2 Measurement value voltage 2
14 GNDA Analog GND2
15 OUT I2 Measurement value current 2
16 Shield Schirm
Page 16
