Operation

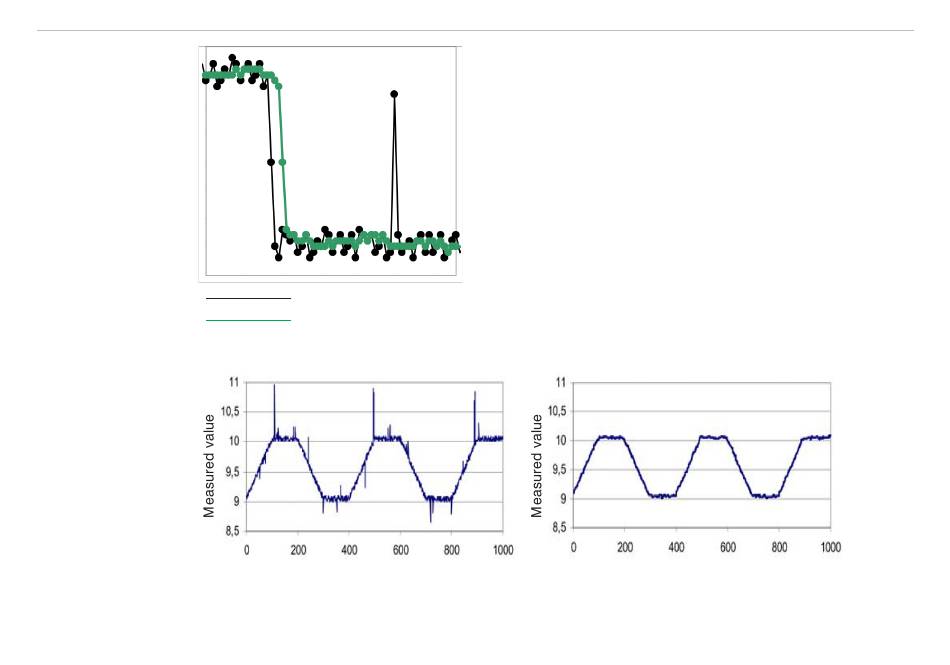

Fig. 16 Median, N = 7
Fig. 17 Original profile
C-Box/2A
Signal without averaging
Signal with averaging
Position value
Application tips
- The measurement value curve is not smoothed
to a great extent, used to eliminate spikes
- Suppresses individual interference pulses
- In short, strong signal peaks (spikes)
- Also suitable for edge jumps (only minor influ-
ence)
- For rough, dusty or dirty environment, to elimi-
nate dirt or roughness
- Further averaging can be used after the median
filter
Position value
Fig. 18 Profile with Median, N = 9
