1.
Warnings
Connect the power supply and the display-/output device according to the safety
regulations for electrical equipment. The supply voltage must not exceed the specified
limits.
> Risk of injury, damage to or destruction of the sensor
Avoid shocks and impacts to the sensor. Avoid constant exposure of the sensor to dust
and splashes of water. Avoid exposure of sensor to aggressive materials (detergents,
cooling emulsions).
> Damage to or destruction of the sensor
You can find more information about the sensor in the operating instructions. They are
online at:
www.micro-epsilon.com/download/manuals/man--scanCONTROL-30xx--en.pdf
2.
Notes on Product Marking
The product meets the requirements of CE and UKCA. All specifications and safety
instructions described in the operating instructions must be observed.
3.
Proper Environment
- Protection class:
- Temperature range:
ƒ Operation:
ƒ Storage:
- Humidity:

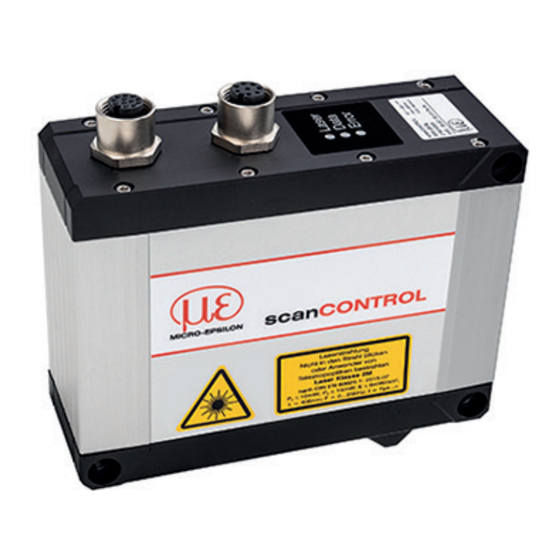

scanCONTROL 3000 / 3002
IP67
0 ... +45 °C (+32 ... +113 °F), for free circulation of air
-20 ... +70 °C ( -4 ... +158 °F)
5 - 95 % (non-condensing)
Assembly Instructions
scanCONTROL
3000 / 3002
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MICRO-EPSILON scanCONTROL 3000
Summary of Contents for MICRO-EPSILON scanCONTROL 3000
- Page 1 - Temperature range: ƒ Operation: 0 ... +45 °C (+32 ... +113 °F), for free circulation of air ƒ Storage: -20 ... +70 °C ( -4 ... +158 °F) - Humidity: 5 - 95 % (non-condensing) scanCONTROL 3000 / 3002 Page 1...
-
Page 2: Laser Safety
Only for USA Mark the laser area recognizable COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR CONFORMANCE WITH and everlasting. IEC 60825-1 ED. 3., AS DESCRIBED IN LASER NOTICE NO. 56, DATED MAY 8, 2019 scanCONTROL 3000 / 3002 Page 2... - Page 3 ≤ 100 mW; P ≤ 100 mW; E ≤ 24 mW/cm²; λ = 660 nm; F = 0...25 kHz; t = 7 µs...∞ Fig. 8 LLT30xx-430, LLT30xx-600 Mark the laser area recognizable and everlasting. scanCONTROL 3000 / 3002 Page 3...
- Page 4 LASER PRODUCT IEC 60825-1:2014 ≤ 100 mW; P ≤ 100 mW; E ≤ 24 mW/cm²; λ = 660 nm; F = 0...25 kHz; t = 7 µs...∞ Fig. 12 Sensor LLT30xx-430, LLT30xx-600 with laser labels scanCONTROL 3000 / 3002 Page 4...
- Page 5 Laser on/off: input galvanically isolated from GND, In1, In2, In3, In4, RS422 In1, In2, In3, In4, RS422: inputs galvanically isolat- ed from GND and laser on/off 12-pin screw connector, view on solder side (cable) scanCONTROL 3000 / 3002 Page 5...
- Page 6 Use a serial key switch in the control circuit to switch off the laser. With standard sensors, connecting the supply voltage activates the laser light source in the sensor. Wiring details are available in the operating instructions, Chap. 5. scanCONTROL 3000 / 3002 Page 6...
- Page 7 > Damage to the sensor and/or Ethernet card! - A fixed IP address can be assigned. Use the sensorTOOL program to make specify the sensor settings described above. The program is available online at https://www.micro-epsilon.com/download/software/ sensorTOOL.exe. scanCONTROL 3000 / 3002 Page 7...
-
Page 8: Led Error
- Windows 8 or 8.1, Windows 10, Windows 11 (64 bit each) - 1-GHz or faster (64 bit) processor or higher - 1 GB RAM - Screen resolution: 1024 x 768 - Graphics card / GPU with OpenGL 3.1 or higher scanCONTROL 3000 / 3002 Page 8... - Page 9 Only connect the sensor to the peripheral equipment, if it is disconnected from the power supply, i.e. only when the operating voltage is switched off. The sensor needs a warm-up time of typically 20 minutes for high precision measurements. scanCONTROL 3000 / 3002 Page 9...
- Page 10 - GigEVision and GenICam for digital cameras via Ethernet interface - SDK for fast application integration (C, C++, C# and others) Please refer to the respective SDK documentation for further information on accessing the profile data. scanCONTROL 3000 / 3002 Page 10...
-
Page 11: Unpacking, Included In Delivery
Configuration Tools operating instructions. You will find details about the individual programs in the respective operating instructions or in the operating instructions of this sensor, Chap. 6.2. You will find the operating instructions online at www.micro-epsilon.com. scanCONTROL 3000 / 3002 Page 11... - Page 12 MICRO-EPSILON Messtechnik GmbH & Co. KG Koenigbacher Str. 15 94496 Ortenburg / Germany, Tel. +49 (0) 85 42/1 68-0 Your local contact: www.micro-epsilon.com/contact/worldwide/ X9771399.05-A022073HDR...
