Appendix | Accessories
Appendix
A 1
Pin 1
Pin 2

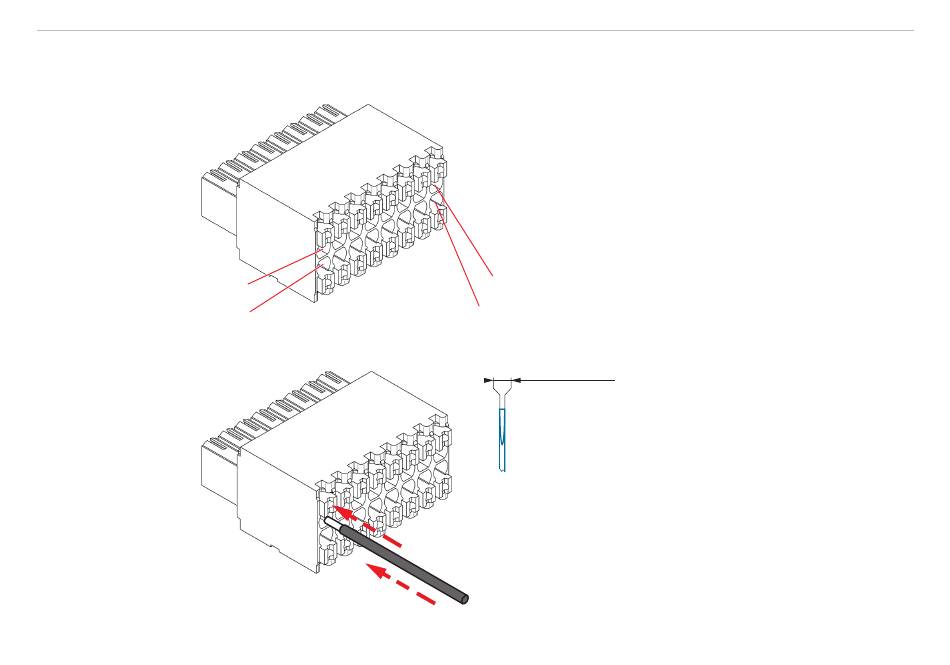

Fig. 38 Pin assignment 16-pin terminal box
Fig. 39 Steps for wiring the cable clamp
C-Box/2A
Accessories
1.
2.
Pin 15
Pin 16
2.5 x 0.4 mm
Female connector suitable for
- Conductor type solid/fine-stranded,
cross section from 0.08 ... 1.5 mm²
AWG 28 ... 16
- Conductor type fine-stranded (with
insulated/uninsulated ferrule),
cross section from 0.25 ... 1 mm²
AWG 24 ... 18
Attach the female connector in bench
vise as far as possible.
1. Press the orange clamping lever
inwards.
2. Insert the connecting wire into the
terminal.
3. Release the operating slot.
i
Please use a screwdriver with a
max. blade width of 2.5 x 0.4 mm.
Page 75
