Configuration - continued

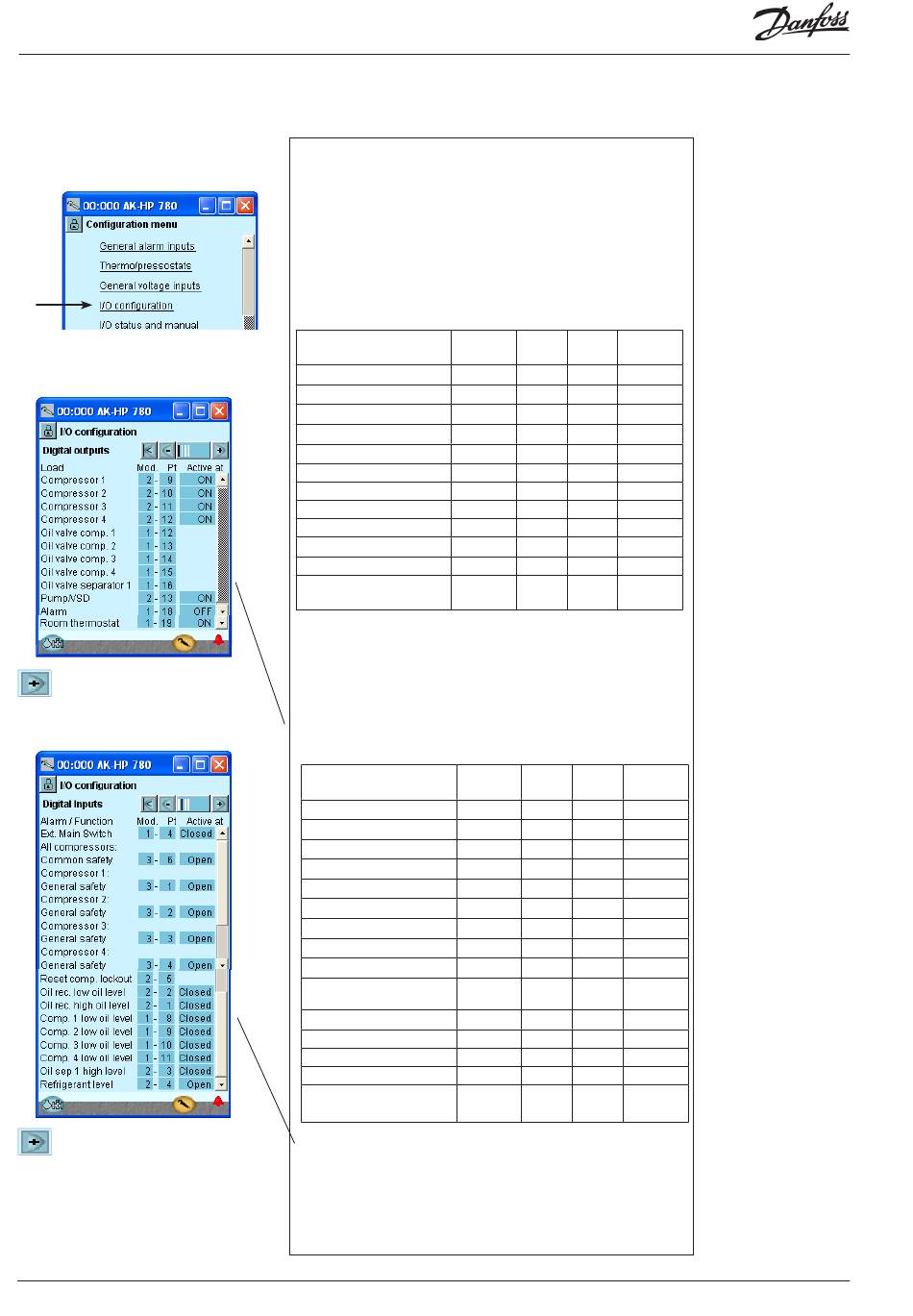

Configuration of inputs
and outputs
1. Go to Configuration menu
2. Select I/O configuration
3. Configuration of Digital outputs
Press the +-button to go on to the
next page.
4. Setup On/off inputs
Press the +-button to go on to the
next page.
60
The following displays will depend on the earlier definitions. The dis-
plays will show which connections the earlier settings will require. The
tables are the same as shown earlier.
• Digital outputs
• Digital inputs
• Analog outputs
• Analog inputs
Load
Solenoid valve, oil, Comp. 1
Solenoid valve, oil, Comp. 2
Solenoid valve, oil, Comp. 3
Solenoid valve, oil, Comp. 4
Solenoid valve, oil separator
Alarm
Room fan
Compressor 1
Compressor 2
Compressor 3
Compressor 4
Start signal to AKD for the
pump
!!! The alarm is inverted so that there will be an alarm if the supply
voltage to the controller fails.
We set up the controller's digital outputs by keying in which module
and point on this module each one of these has been connected to.
We furthermore select for each output whether the load is to be active
when the output is in pos. ON or OFF.
Function
External main switch
Level switch, oil, comp.1
Level switch, oil, comp.2
Level switch, oil, comp.3
Level switch, oil, comp.4
Level switch, oil, receiver High
Level switch, oil, receiver Low
Level switch, oil, Separator
Level switch, CO2 receiver
Reset of compressor stop
Compressor 1 Gen. Safety
Compressor 2 Gen. Safety
Compressor 3 Gen. Safety
Compressor 4 Gen. Safety
All compressors common
safety
We set up the controller's digital input functions by keying in which
module and point on this module each one of these has been connected
to.
We furthermore select for each output whether the function is to be ac-
tive when the output is in pos. Closed or Open.
Open has been selected here for all the safety circuits. This means that
the controller will receive signal under normal operation and register it
as a fault if the signal is interrupted.
Heat pump controller RS8GF202 © Danfoss 2015-08
Mod-
Output
Point
Active at
ule
DO1
1
12
ON
DO2
1
13
ON
DO3
1
14
ON
DO4
1
15
ON
DO5
1
16
ON
DO7
1
18
OFF !!!
DO8
1
19
ON
DO1
2
9
ON
DO2
2
10
ON
DO3
2
11
ON
DO4
2
12
ON
DO5
2
13
ON
Mod-
Input
Point
Active at
ule
AI4
1
4
Closed
AI8
1
8
Closed
AI9
1
9
Closed
AI10
1
10
Closed
AI11
1
11
Closed
AI1
2
1
Closed
AI2
2
2
Closed
AI3
2
3
Closed
AI4
2
4
Open
Pulse pres-
AI5
2
5
sure
DI1
3
1
Open
DI2
3
2
Open
DI3
3
3
Open
DI4
3
4
Open
DI6
3
6
Open
3 - Outputs
The possible functions are
the following:
Comp. 1
Unloader 1-1
Unloader 1-2
Unloader 1-3
Comp. 2-8
Oil safety comp. 1-8
Oil valve comp. 1-8
Oil valve separat 1-8
Injection heat exchanger
Pump / VSD
Alarm
Thermostat 1 - 5
Pressostat 1 - 5
Volt input 1 - 5
4 - Digital inputs
The possible functions are
the following:
Ext. Main switch
Night setback
Load shed 1
Load shed 2
All compressors:
Common safety
Comp. 1
Oil pressure safety
Over current safety
Motor protect. safety
Disch. temp. safety
Disch. press. safety
General safety
VSD comp. Fault
Comp. 2-8
do
Pump protection
Reset comp. lockout
Oil receiver low
Oil receiver high
Oil level comp.1-8
Oil separator low 1-8
Oil separator high 1-8
DI 1 Alarm input
DI 2-10 ...
