Light-emitting diodes
A number of light-emitting diodes makes it possible to follow the
signals that are received and transmitted by the controller.

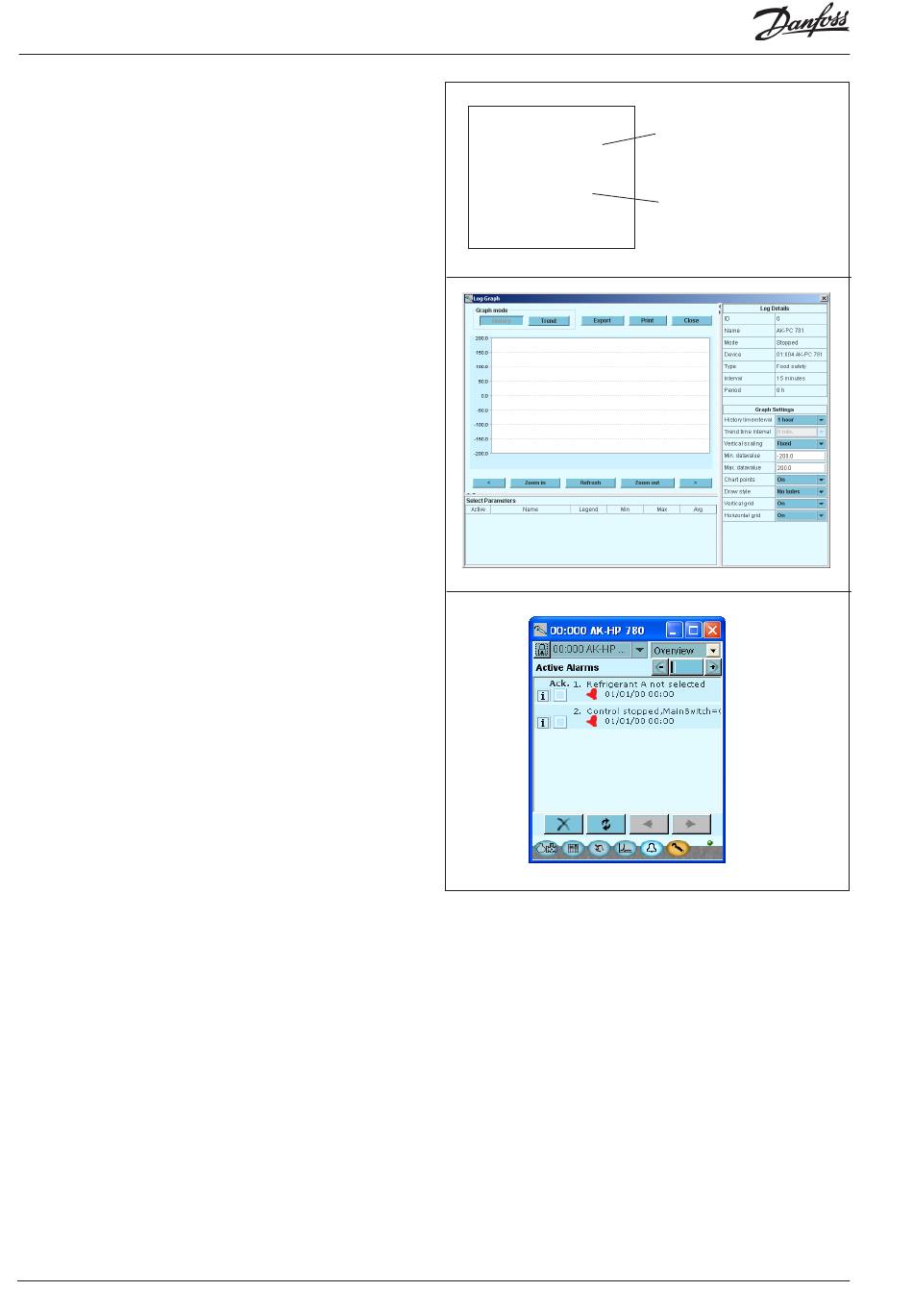

Log
From the log function you can define the measurements you wish
to be shown.
The collected values can be printed, or you may export them to a
file. You can open the file in Excel.
If you are in a service situation you can show measurements in a
trend function. The measurements are then made real-time and
displayed instantly.
Alarm
The display gives you an overview of all active alarms. If you wish
to confirm that you have seen the alarm you can cross it off in the
acknowledge field.
If you want to know more about a current alarm you can click on it
and obtain an information display on the screen.
A corresponding display exists for all earlier alarms. Here you can
upload information if you need further details about the alarm
history.
6 Heat pump controller RS8GF202 © Danfoss 2015-08
Slow flash = OK
■ Power
Quick flash = answer from gateway
■ Comm
Constantly ON = error
■ DO1 ■ Status
Constantly OFF = error
■ DO2 ■ Service Tool
■ DO3 ■ LON
■ DO4
■ DO5 ■ Alarm Flash = active alarm/not cancelled
■ DO6
Constant ON = Active alarm/cancelled
■ DO7
■ DO8 ■ Service Pin
AK-HP 780
