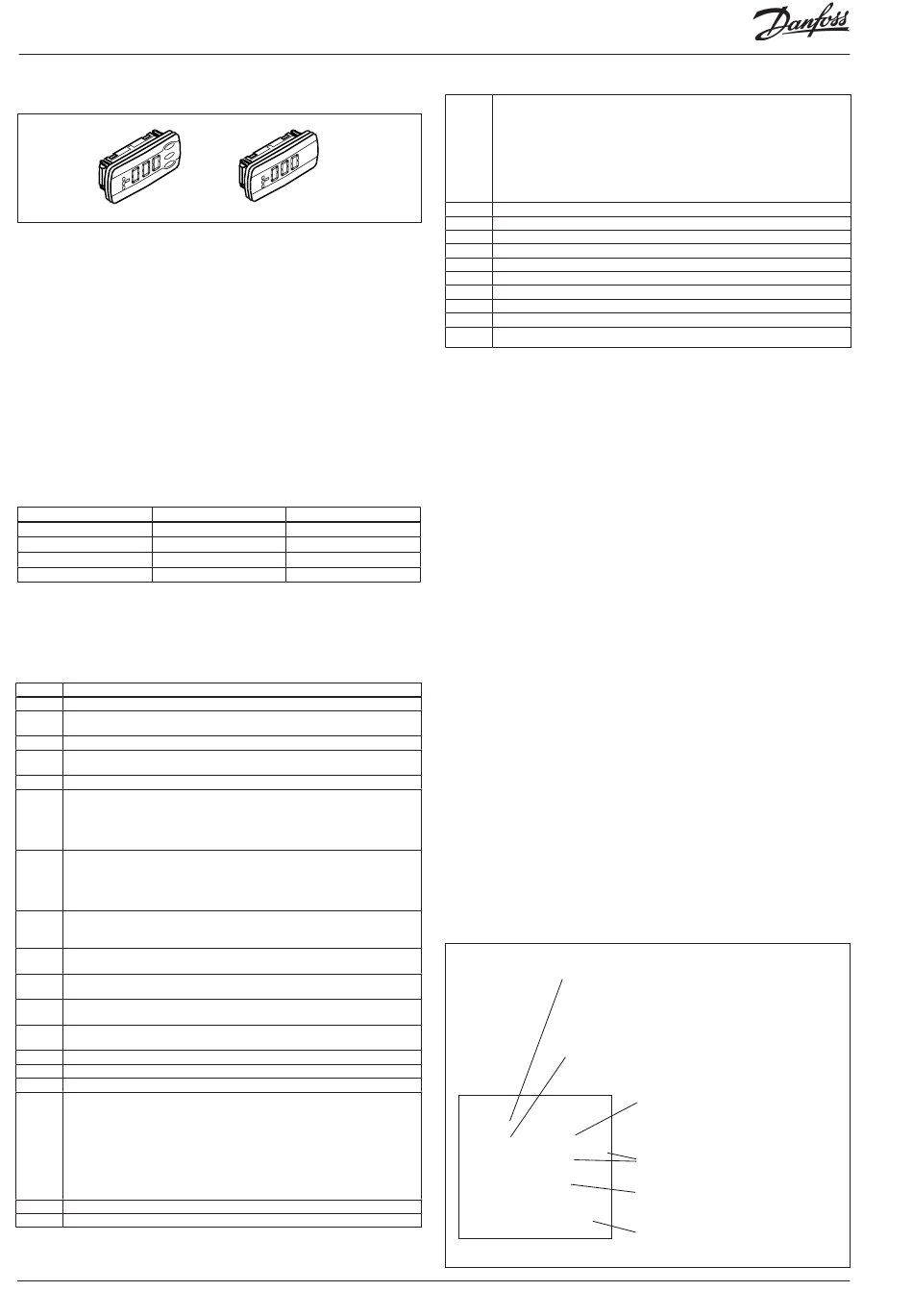

Display of pressure and temperatures
One to four separate displays can be connected to the controller.
Connection is accomplished by means of wires with plug
connections. The display may be placed in a control box front, for
example.
When a display is connected, it will show the value for what is indi-
cated in the setup. It can be
- P0
- Sctrl
- Ss
- Sd
- Pd
- S7
- P0 bar
- Pd bar
Display Primary readout *
A Sctrl
B S7
C Ss
D Sd
* The primary reading can be changed to other measurements, if required.
When a display with control buttons is chosen, a simple operation
via a menu system can be performed in addition to the display of
pressure and temperatures.
No. Function
o30 Refrigerant setting
o57 Capacity settings for the pump
0: MAN, 1: OFF, 2: AUTO
058 Manual setting of pump capacity
o59 Capacity setting for suction group
0: MAN, 1: OFF, 2: AUTO
o60 Manual setting of suction capacity
o62 Select of predefined configuration
This setting will give a selection of predefined combinations which at the same time
establish the connections points.. At the end of the manual an overview of options
and connection points is shown. After the configuration of this function the controller
will shut down and restart
o93 Lock of configuration
It is only possible to select a predefined configuration or change refrigerant when the
configuration lock is open.
0 = Configuration open
1 = Configuration locked
r12 Main switch
0: Controller stopped
1: Regulating
r23 Set point suction pressure
Setting of required suction pressure reference in °C
r24 Suction pressure reference
Actual reference temperature for compressor capacity
r28 Set point S7
ISetting of required temperatures in °C
r29 S7- reference
Actual reference for temperature regulation
r57 Po evaporating pressure in °C
u16 Actual media temperature measured with Sctrl
u21 Superheat in suction line
u48 Actual regulation status on the pump
0: Power up
1: Stopped
2: Manual
3: Alarm
4: Restart
5: Standby
10: Full loaded
11: Running
u49 Cutin pump capacity in %
u50 Reference for pump capacity in %
96
Secondary readout
S7
Sctrl
None
None
Heat pump controller RS8GF202 © Danfoss 2015-08
u51 Actual regulation status on suction group
0: Power up
1: Stopped
2: Manuel
3: Alarm
4: Restart
5: Standby
10: Full loaded
11: Running
u52 Cut in compressor capacity in %
u53 Reference for compressor capacity
u54 Sd discharge gas temperature in °C
u55 Ss Suction gas temperature in °C
u98 Actual temperature for S7 media sensor
U01 Actual Pd discharge pressure in °C
AL1 Alarm suction pressure
AL2 Alarm for discharge pressure
- - 1 Initiation. Display is connected to output A. (- - 2 = output B, etc.)
If you want to see one of the values for what is given under "func-
tion" you should use the buttons in the following way:
1. Press on the upper button until a parameter is shown
2. Press on the upper or lower button and find the parameter you
want to read
3. Press on the middle button until the value of the parameter is
displayed.
After a short time, the display will return automatically to the
"Read out display".
Light-emitting diodes on the controller
Internal communication
between the modules:
Quick flash = error
Constantly On = error
Status of output 1-8
■ Power
■ Comm
■ DO1 ■ Status
■ DO2 ■ Service Tool
■ DO3 ■ LON
■ DO4
■ DO5 ■ Alarm
■ DO6
■ DO7
■ DO8 ■ Service Pin
Slow flash = OK
Quick flash = answer from gateway
remains on for 10 mins after network
registration
Constantly ON = error
Constantly OFF = error
External communication
Flash = active alarm/not cancelled
Constant ON = Active alarm/cancelled
Network installation
