Configuration - continued

Setup separate voltage functions

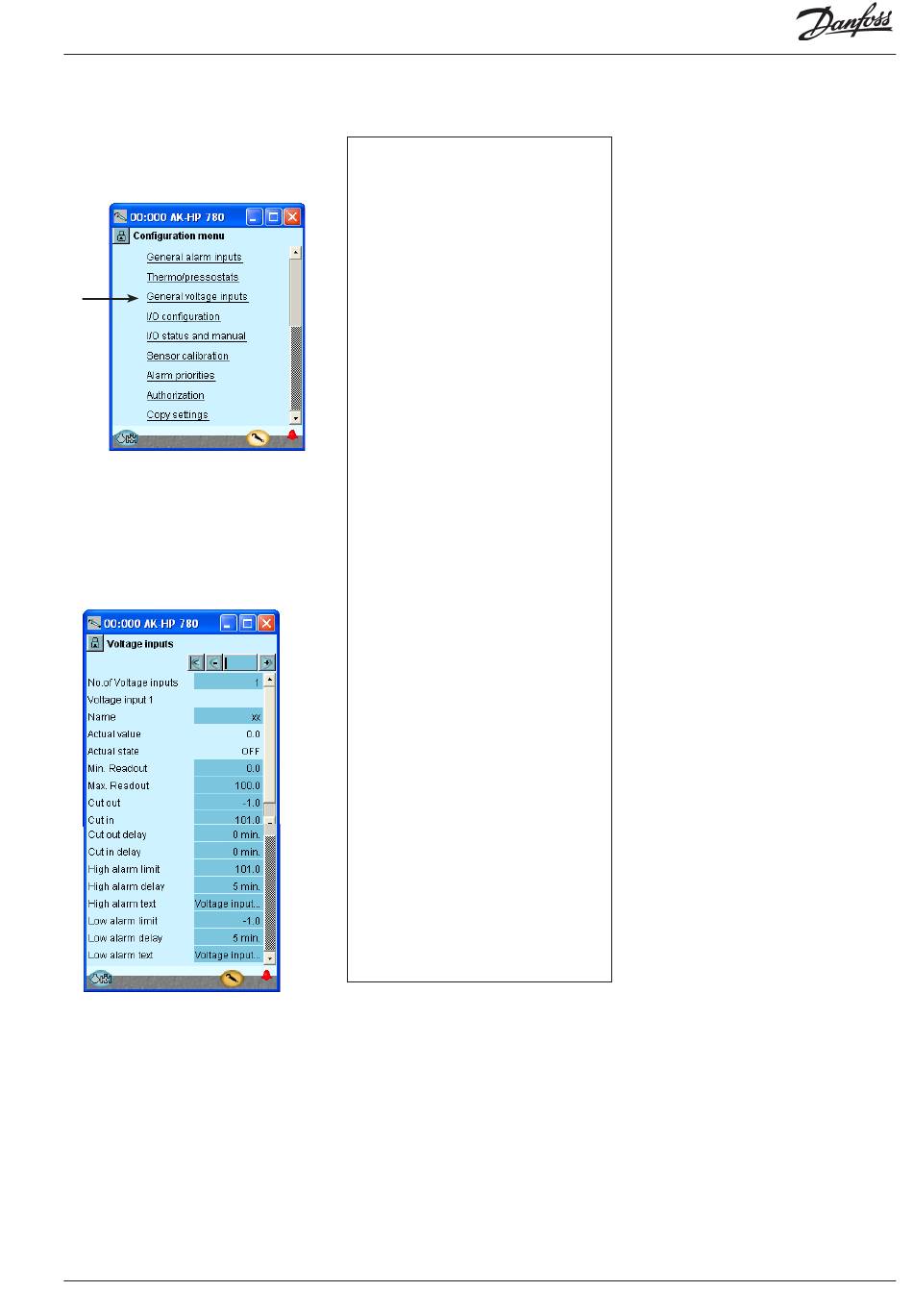

1. Go to Configuration menu
2. Select General Voltage inputs
(In our example we do not use this
function).
Define the required names
3.
and values attached to the
signal
AK-HP 780
In our example we do not use this function,
so the display has been included for your
information only.
The name of the function may be xx and
further down in the display the alarm texts
may be entered.
The values "Min. and Max. Readout" are your
settings representing the lower and upper
values of the voltage range. 2V and 10V, for
example. (The voltage range is selected during
the I/O setup).
For each voltage input defined the controller
will reserve a relay output in the I/O setup.
It is not necessary to define this relay if all
you require is an alarm message via the data
communication.
Heat pump controller RS8GF202 © Danfoss 2015-08
3 - Voltage inputs
The general volt inlet can be used to monitor
external voltage signals. Each volt inlet has a
separate outlet to control external automatic
controls.
No. of voltage inp.
Set the number of general voltage inputs,
specify 1-5:
Name
Actual value
= read-out of the measurement
Actual state
= read-out of outlet status
Min. readout
State read-out values at minimum voltage signal
Max. readout
State read-out values at maximum voltage signal
Cutout
Cut-out value for outlet (scaled value)
Cutin
Cut-in value for outlet (scaled value)
Cutout delay
Time delay for cut-out
Cut in delay
Time delay for cut-in
High alarm limit
High alarm limit
High alarm delay
Time delay for high alarm
High alarm text
Set alarm text for high alarm
Low alarm limit
Low alarm limit
Low alarm delay
Time delay for low alarm
Low alarm text
Indicate alarm text for low alarm
