Configuration of inputs
and outputs

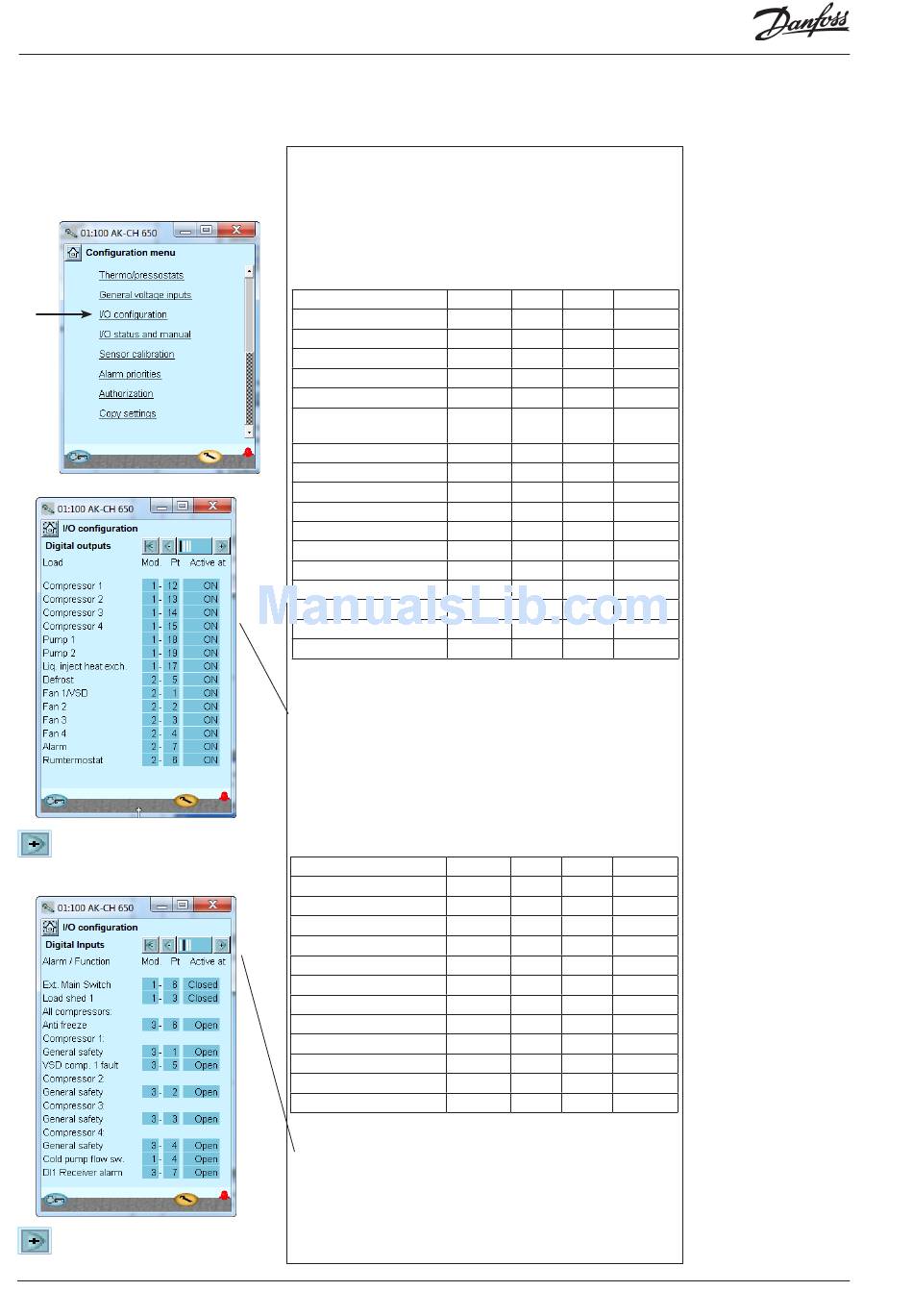

1. Go to Configuration menu
2. Select I/O configuration
3. Configuration of Digital outputs
Press the +-button to go on to the
next page
4. Setup On/off input functions
Press the +-button to go on to the
next page
62
The following displays will depend on the earlier definitions. The
displays will show which connections the earlier settings will require.
The tables are the same as shown earlier.
• Digital outputs
• Digital inputs
• Analog outputs
• Analog inputs
Load
Compressor 1 / VSD
Compressor 2
Compressor 3
Compressor 4
Liq.injec. in heat ex-
changer
Pump 1
Pump 2
Fan 1
Fan 2
Fan 3
Fan 4
Defrost
Fan in plant room
Alarm
!!! The alarm is inverted so that there will be an alarm if the supply
voltage to the controller fails.
We set up the controller's digital outputs by keying in which module
and point on this module each one of these has been connected to.
We furthermore select for each output whether the load is to be active
when the output is in pos. ON or OFF.
Function
Consumpt. limit
Pump flow switch
External main switch
Compressor 1 Gen. Safety
Compressor 2 Gen. Safety
Compressor 3 Gen. Safety
Compressor 4 Gen. Safety
VSD, comp. speed
Frost protection
Receiver level on/off
We set up the controller's digital input functions by keying in which
module and point on this module each one of these has been connected
to.
We furthermore select for each output whether the function is to be ac-
tive when the output is in pos. Closed or Open.
Open has been selected here for all the safety circuits. This means that
the controller will receive signal under normal operation and register it
as a fault if the signal is interrupted.
Capacity controller RS8ER302 © Danfoss 2016-02
Output
Module Point
Active at
DO1
1
12
ON
DO2
1
13
ON
DO3
1
14
ON
DO4
1
15
ON
DO5
1
16
DO6
1
17
ON
DO7
1
18
ON
DO8
1
19
ON
DO1
2
1
ON
DO2
2
2
ON
DO3
2
3
ON
DO4
2
4
ON
DO5
2
5
ON
DO6
2
6
ON
DO7
2
7
OFF !!!
DO8
2
8
Input
Module Point
Active at
AI3
1
3
Closed
AI4
1
4
Open
AI6
1
6
Closed
DI1
3
1
Open
DI2
3
2
Open
DI3
3
3
Open
DI4
3
4
Open
DI5
3
5
Open
DI6
3
6
Open
DI7
3
7
Open
3 - Outputs
The possible functions are
the following:
Comp. 1
Unloader 1-1, 1-2, 1-3
Comp. 2-6
Extra cooling
Cold pump 1
Cold pump 2
Injec. in suction line
Injec in heat exchanger
Defrost
Fan 1 / VSD
Fan 2 - 8
Hest recovery
Alarm
Thermostat 1 - 5
Pressostat 1 - 5
Voltage input 1 - 5
4 - Digital inputs
The possible functions are
the following:
Ext. Main switch
Night setback
Load shed 1
Load shed 2
Frost protection
All compressors:
Compressor. __
Oil pressure safety
Over current safety
Motor protect. safety
Disch. temp. safety
Disch. press. safety
General safety
VSD comp_. error 1-2
Flow switch (cold pump)
Cold pump 1 monitoring
Cold pump 2 monitoring
Fan 1 protection
Fan 2......8 protection
VSD Cond. protection
Heat recovery
DI Alarm 1
DI Alarm 2.....10
Defrost
