MANO521 Mini ITX Motherboard
1.2

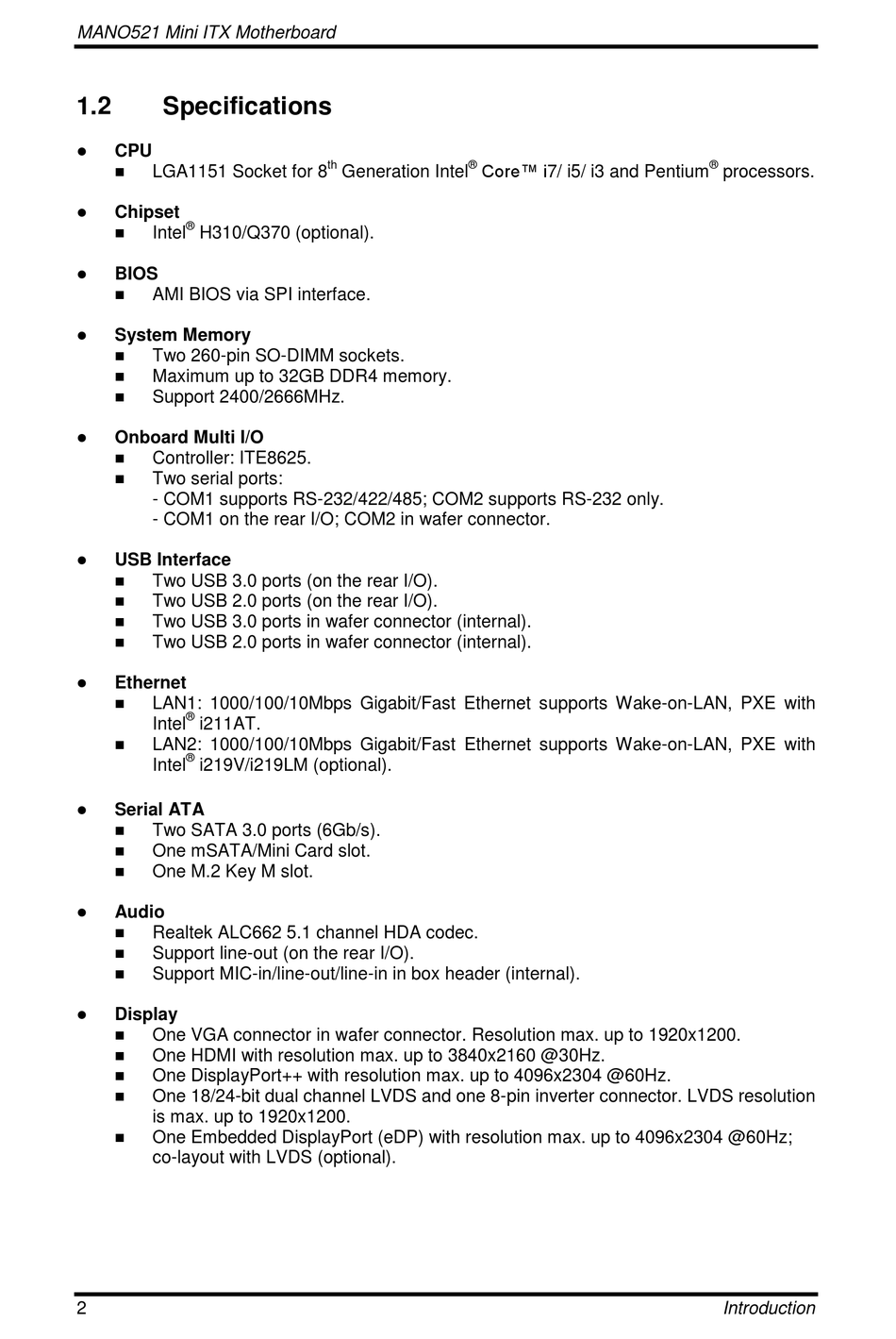

Specifications

 CPU
 LGA1151 Socket for 8

Chipset
®
 Intel H310/Q370 (optional).
 BIOS
 AMI BIOS via SPI interface.
 System Memory
 Two 260-pin SO-DIMM sockets.
 Maximum up to 32GB DDR4 memory.

Support 2400/2666MHz.
 Onboard Multi I/O
 Controller: ITE8625.
 Two serial ports:
- COM1 supports RS-232/422/485; COM2 supports RS-232 only.
- COM1 on the rear I/O; COM2 in wafer connector.
 USB Interface
 Two USB 3.0 ports (on the rear I/O).
 Two USB 2.0 ports (on the rear I/O).
 Two USB 3.0 ports in wafer connector (internal).
 Two USB 2.0 ports in wafer connector (internal).
 Ethernet
 LAN1: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with
®
Intel i211AT.
 LAN2: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE with
®
Intel i219V/i219LM (optional).

Serial ATA
 Two SATA 3.0 ports (6Gb/s).

One mSATA/Mini Card slot.
 One M.2 Key M slot.
 Audio
 Realtek ALC662 5.1 channel HDA codec.
 Support line-out (on the rear I/O).

Support MIC-in/line-out/line-in in box header (internal).
 Display
 One VGA connector in wafer connector. Resolution max. up to 1920x1200.
 One HDMI with resolution max. up to 3840x2160 @30Hz.
 One DisplayPort++ with resolution max. up to 4096x2304 @60Hz.
 One 18/24-bit dual channel LVDS and one 8-pin inverter connector. LVDS resolution
is max. up to 1920x1200.

One Embedded DisplayPort (eDP) with resolution max. up to 4096x2304 @60Hz;
co-layout with LVDS (optional).
2
th ®
Core™ i7/ i5/ i3 and Pentium
Generation Intel
®
processors.
