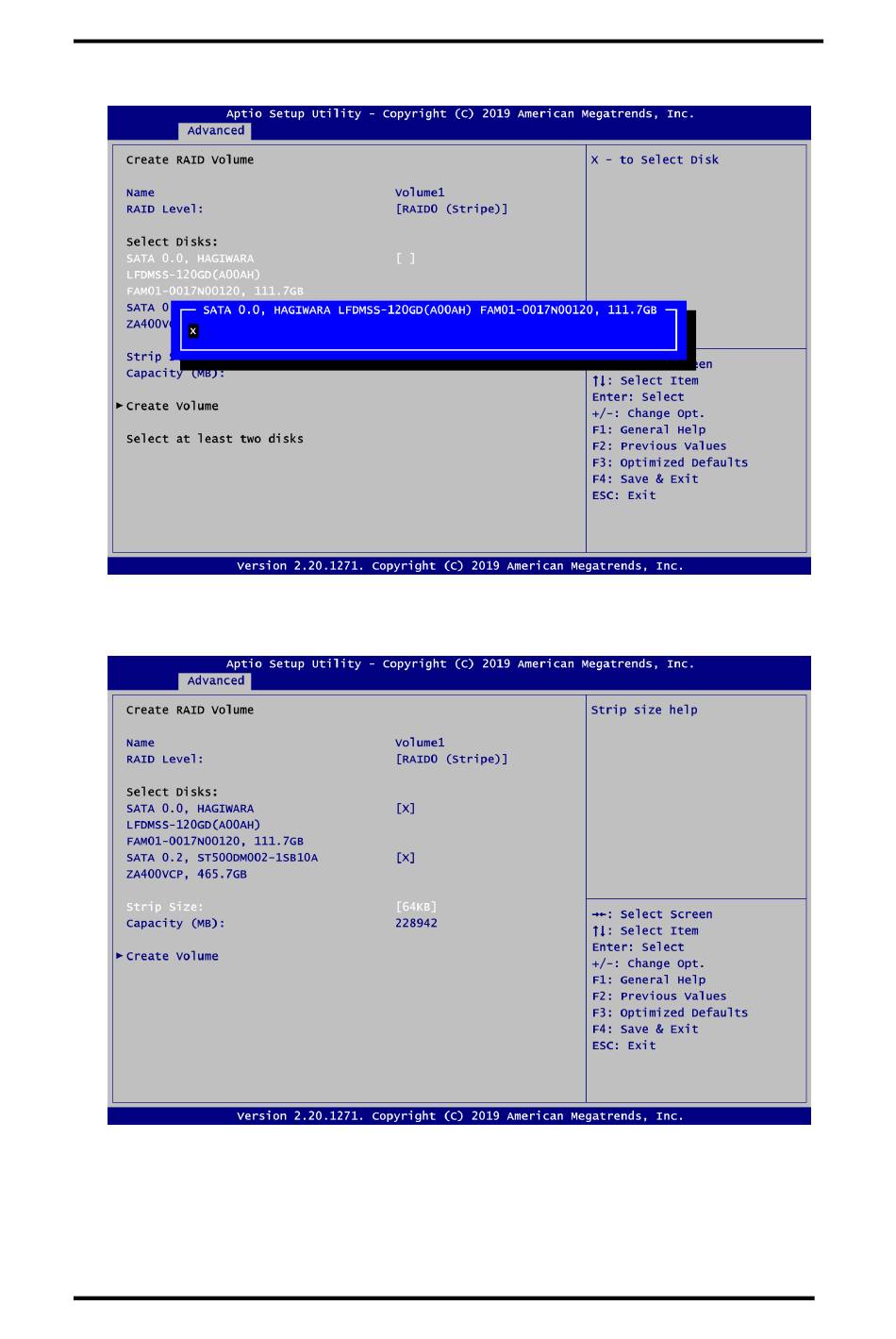

Don't forget to Select Disks by typing "X" as indicated in image below.
Set the stripe block size. The KB is the standard unit of stripe block size. The stripe block
3.4.
size can be 4KB to 128KB.
Configuring SATA for RAID
MANO521 Mini ITX Motherboard
63
