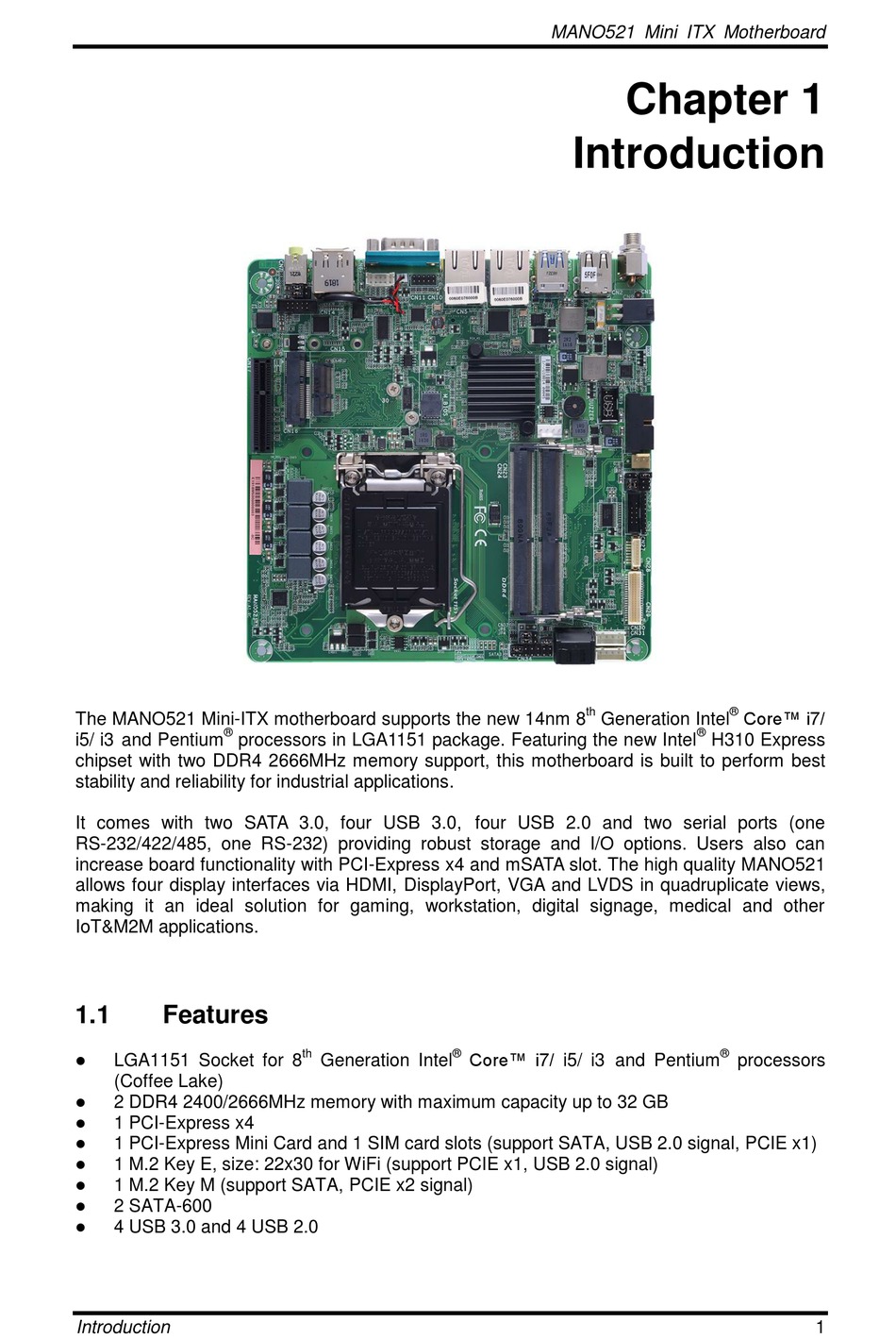

The MANO521 Mini-ITX motherboard supports the new 14nm 8
®
i5/ i3 and Pentium processors in LGA1151 package. Featuring the new Intel
chipset with two DDR4 2666MHz memory support, this motherboard is built to perform best
stability and reliability for industrial applications.
It comes with two SATA 3.0, four USB 3.0, four USB 2.0 and two serial ports (one
RS-232/422/485, one RS-232) providing robust storage and I/O options. Users also can
increase board functionality with PCI-Express x4 and mSATA slot. The high quality MANO521
allows four display interfaces via HDMI, DisplayPort, VGA and LVDS in quadruplicate views,
making it an ideal solution for gaming, workstation, digital signage, medical and other
IoT&M2M applications.
1.1

Features

 LGA1151 Socket for 8
(Coffee Lake)
 2 DDR4 2400/2666MHz memory with maximum capacity up to 32 GB
 1 PCI-Express x4
 1 PCI-Express Mini Card and 1 SIM card slots (support SATA, USB 2.0 signal, PCIE x1)
 1 M.2 Key E, size: 22x30 for WiFi (support PCIE x1, USB 2.0 signal)

1 M.2 Key M (support SATA, PCIE x2 signal)
 2 SATA-600
 4 USB 3.0 and 4 USB 2.0

Introduction

th ®
Core™ i7/ i5/ i3 and Pentium
Generation Intel
MANO521 Mini ITX Motherboard
Chapter 1
Introduction
th
Generation Intel
®
H310 Express
®
®
Core™ i7/
processors
1
