2.2

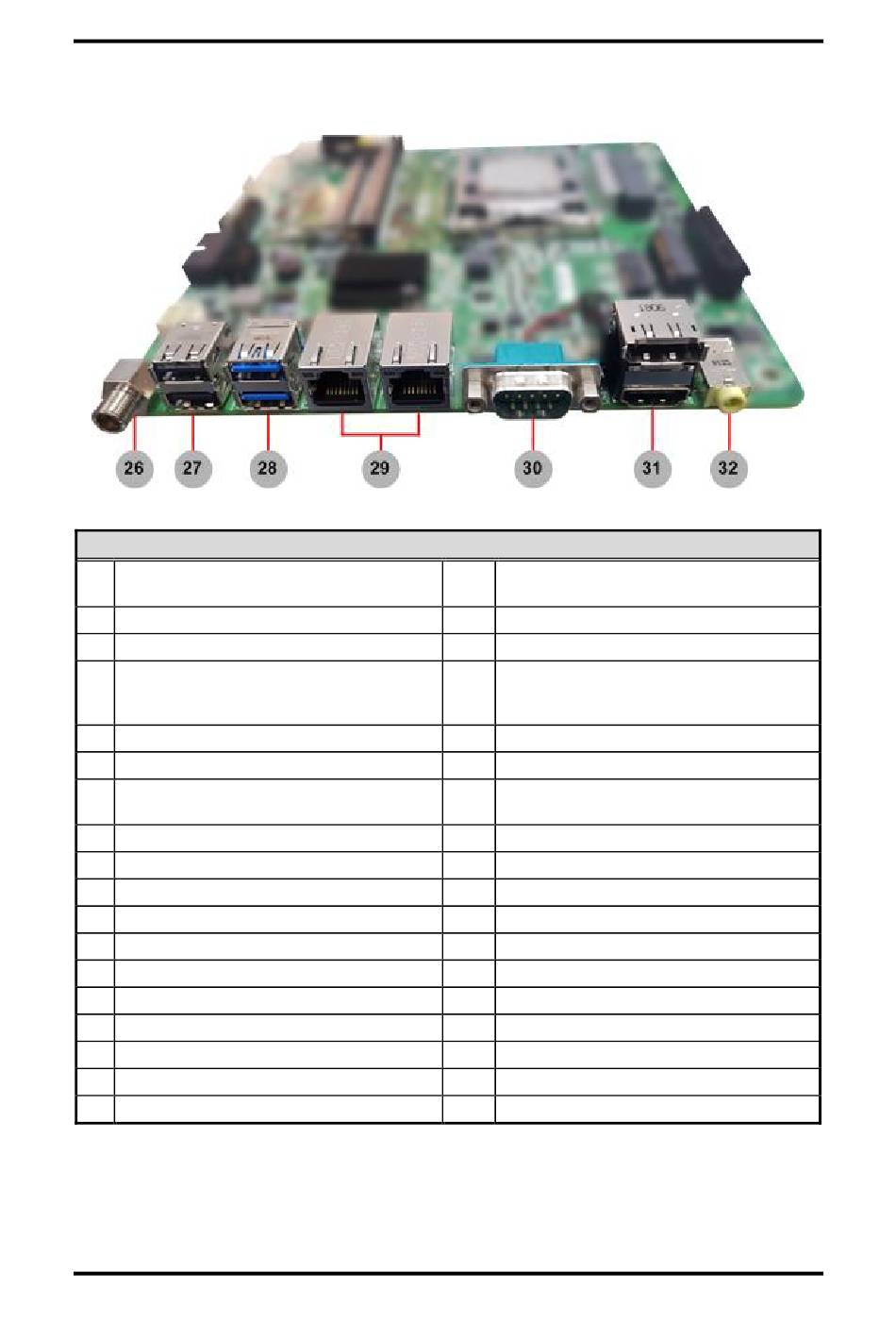

Rear I/O

Audio Output Select Jumper (JP2)
1
(Optional)
2 Front Audio Connector (CN14)
3 mSATA/Mini Card Connector (CN16)
4 PCI-Express x4 Slot (CN17)
5 M.2 Key E Connector (CN15)
6 CPU Fan Connector (CN21)
DDR4 SO-DIMM Connectors (CN23,
7
CN24)
8 Case Open Select Jumper (JP5)
9 AT/ATX Power Mode Select Jumper (JP6)
10 Clear CMOS Jumper (JP4)
11 Front Panel Connector (CN34)
12 SATA 3.0 Combo Connector (CN32)
13 SATA Power Connectors (CN30, CN31)
14 LVDS Signal Header (CN29)
15 LVDS Backlight Control Header (CN28)
16 COM2 Wafer Connector (CN27)
17 LVDS VDD Select Jumper (JP3)
18 COM2 Data/Power Select Jumper (JP1)
Board and Pin Assignments
Jumpers/Headers/Connectors
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
MANO521 Mini ITX Motherboard
System Fan Connector (CN22)
USB 3.0 Wafer Connector ( CN18)
USB 2.0 Wafer Connector ( CN19)
ATX Power Input 90 Angle Connector
(CN9) (Co-layout with 180 Angle
Connector, CN38)
GPIO Header (CN10)
CMOS Battery Connector (CN11)
VGA Wafer Connector (CN12)
DC Jack Power Connector (CN1)
USB 2.0 Stack Port (CN2)
USB 3.0 Stack Port (CN3)
Ethernet Ports (CN4, CN5)
COM1 D-Sub Connector (CN6)
DisplayPort and HDMI Connector (CN8)
Audio Jack (CN7)
M.2 Key M Connector (CN35)
SIM Card Slot (CN36)
eDP Connector (CN37)
