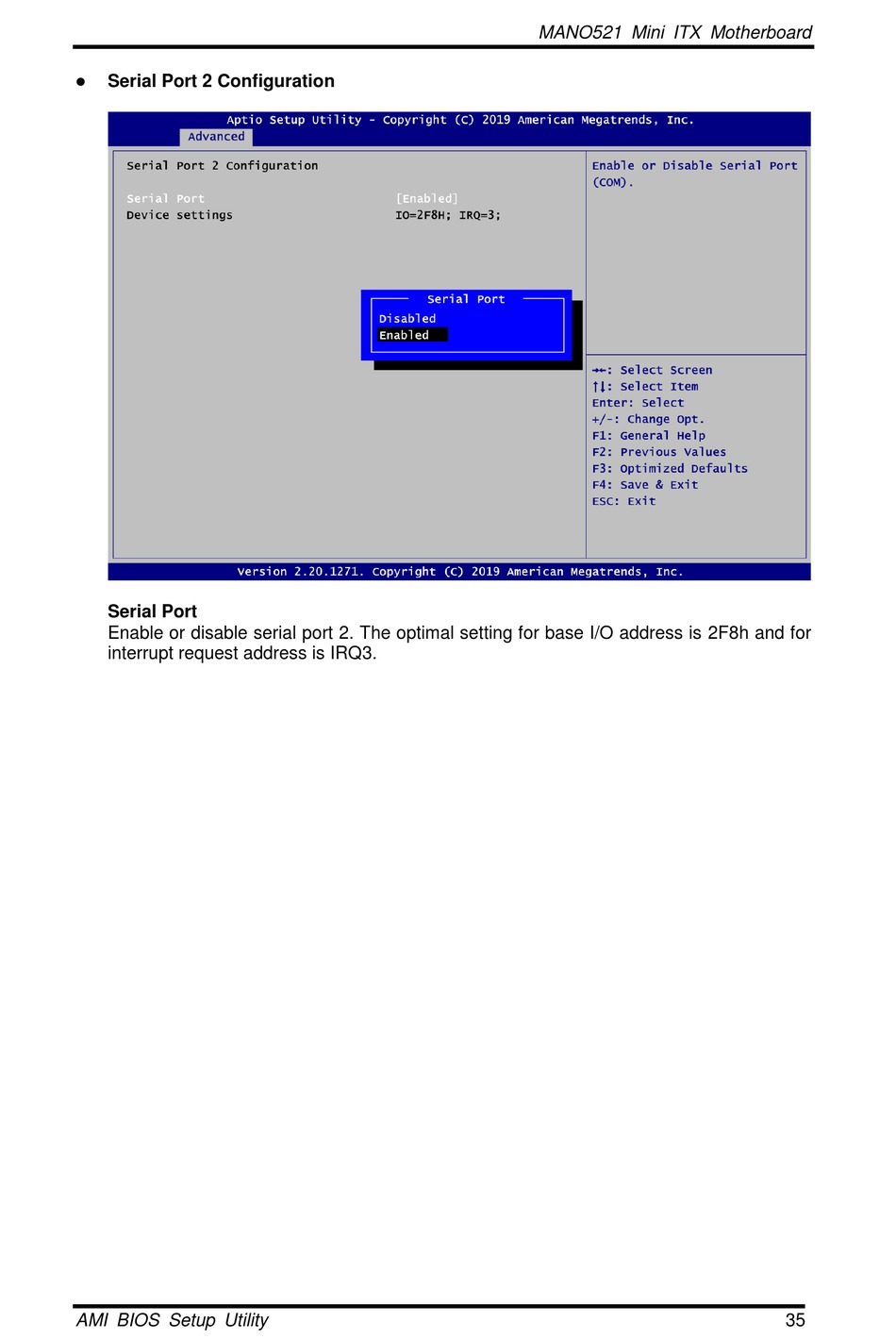

Serial Port 2 Configuration
Serial Port
Enable or disable serial port 2. The optimal setting for base I/O address is 2F8h and for
interrupt request address is IRQ3.
AMI BIOS Setup Utility
MANO521 Mini ITX Motherboard
35
