MANO521 Mini ITX Motherboard
To identify the first pin of a header or jumper, please refer to the following
information:

Usually, there is a thick line or a triangle near the header or jumper pin 1.
Note
2.3

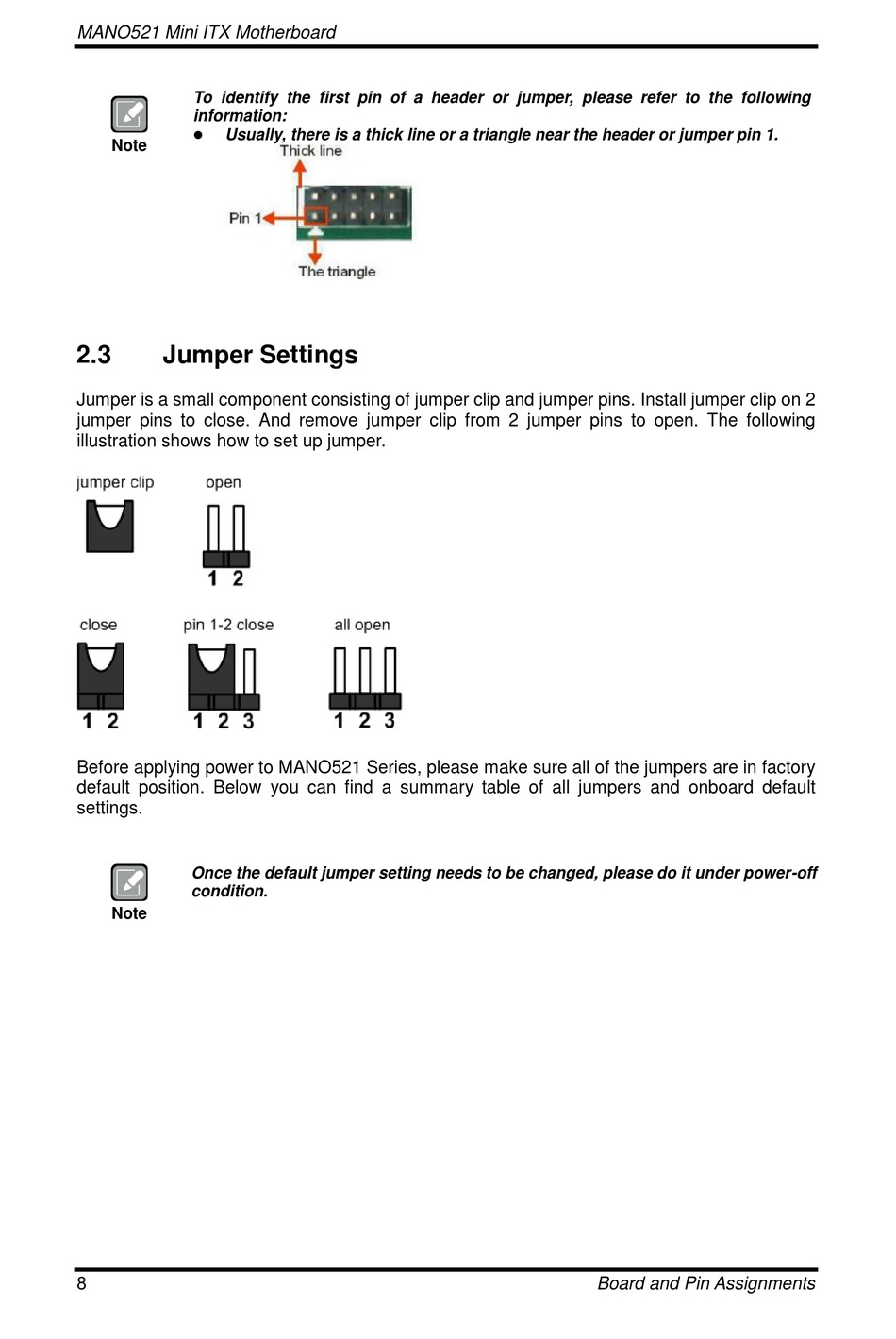

Jumper Settings

Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2
jumper pins to close. And remove jumper clip from 2 jumper pins to open. The following
illustration shows how to set up jumper.
Before applying power to MANO521 Series, please make sure all of the jumpers are in factory
default position. Below you can find a summary table of all jumpers and onboard default
settings.
Once the default jumper setting needs to be changed, please do it under power-off
condition.
Note
8 Board and Pin Assignments
