MANO521 Mini ITX Motherboard

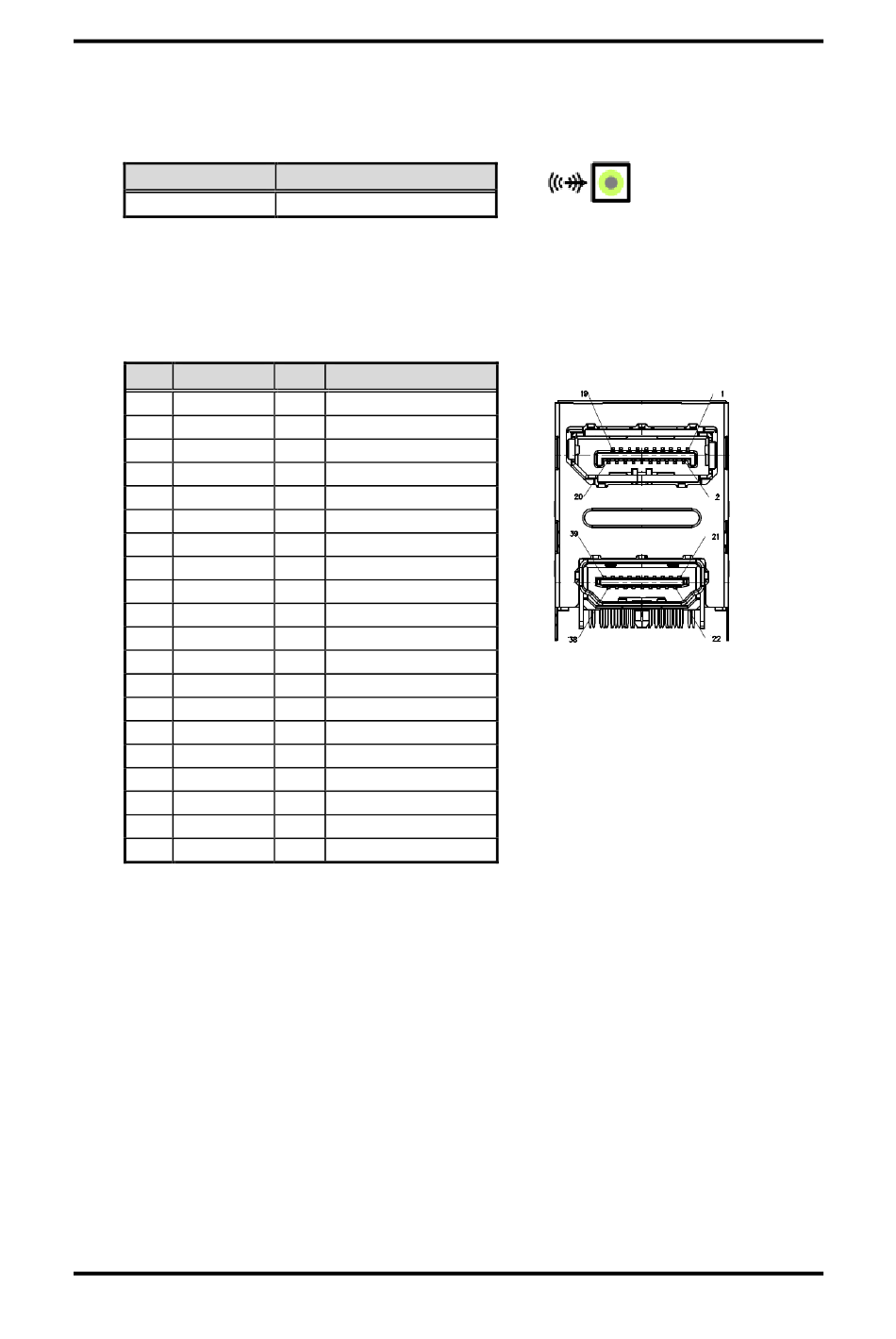

2.4.6

Audio Jack (CN7)

The motherboard provides HD audio jack for line-out on the rear I/O. Install audio driver,
and then attach audio devices to CN7.
Pin Color
Green
2.4.7

DisplayPort and HDMI Connector (CN8)

The CN8 is a stacked connector comprising an upper connector for DisplayPort++
interface and a lower connector for HDMI interface.
Pin Signal
1 DP_TX0_P
2 GND
3 DP_TX0_N
4 DP_TX1_P
5 GND
6 DP_TX1_N
7 DP_TX2_P
8 GND
9 DP_TX2_N
10 DP_TX3_P
11 GND
12 DP_TX3_N
13 GND
14 GND
15 DP_AUXP
16 GND
17 DP_AUXN
18 DP_HPD
19 GND
20 +3.3V
14
Signal
Line-out
Pin Signal
21 HDMI OUT_DATA2+
22 GND
23 HDMI OUT_DATA2-
24 HDMI OUT_DATA1+
25 GND
26 HDMI OUT_DATA1-
27 HDMI OUT_DATA0+
28 GND
29 HDMI OUT_DATA0-
30 HDMI OUT_Clock+
31 GND
32 HDMI OUT_Clock-
33 NC
34 NC
35 HDMI OUT_SCL
36 HDMI OUT_SDA
37 GND
38 +5V
39 HDMI_HTPLG
DisplayPort
HDMI
Board and Pin Assignments
