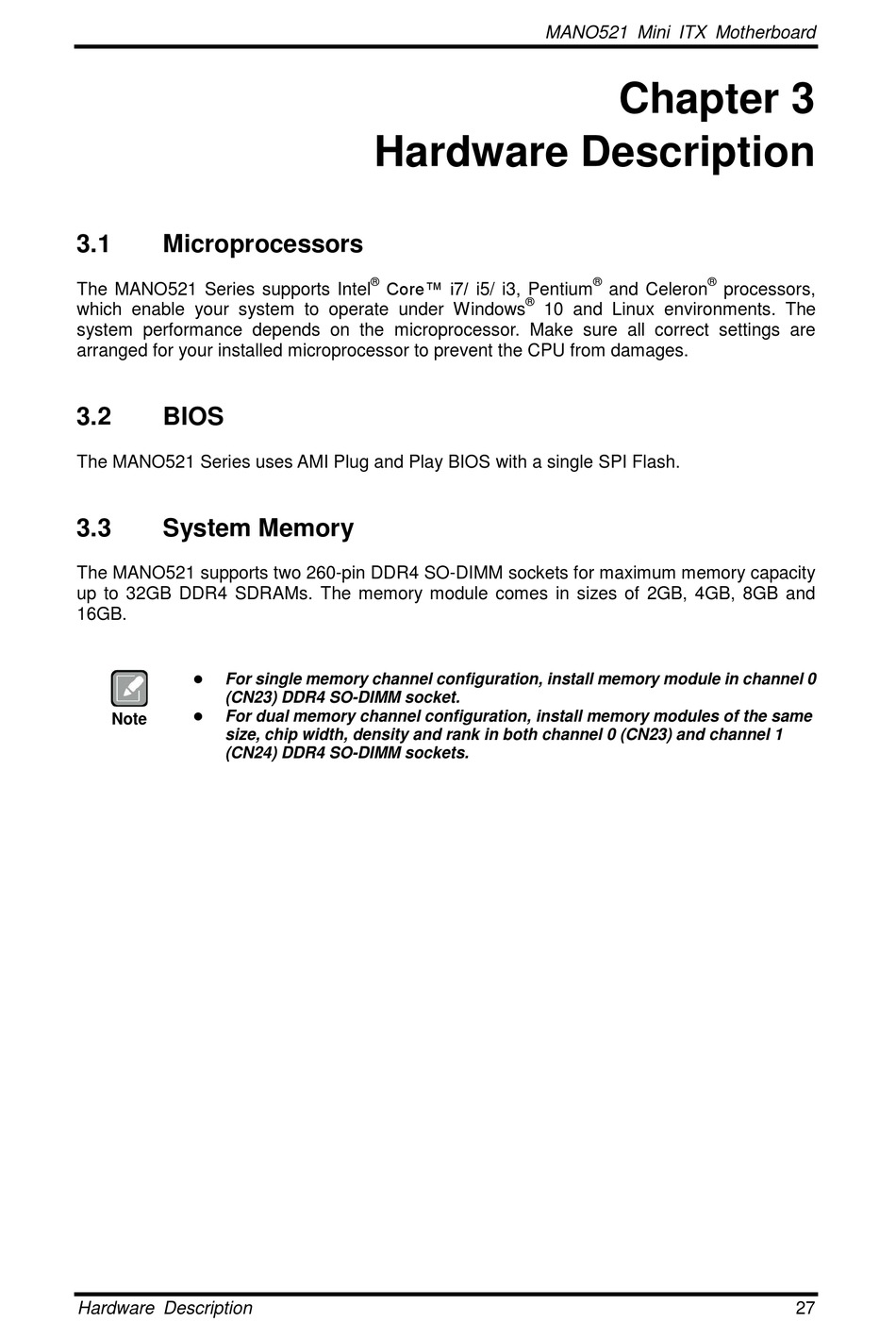

Chapter 3 Hardware Description; Microprocessors; Bios; System Memory - AXIOMTEK MANO521 Series User Manual

3.1

Microprocessors

The MANO521 Series supports Intel
which enable your system to operate under Windows
system performance depends on the microprocessor. Make sure all correct settings are
arranged for your installed microprocessor to prevent the CPU from damages.
3.2

BIOS

The MANO521 Series uses AMI Plug and Play BIOS with a single SPI Flash.
3.3

System Memory

The MANO521 supports two 260-pin DDR4 SO-DIMM sockets for maximum memory capacity
up to 32GB DDR4 SDRAMs. The memory module comes in sizes of 2GB, 4GB, 8GB and
16GB.

For single memory channel configuration, install memory module in channel 0
(CN23) DDR4 SO-DIMM socket.

For dual memory channel configuration, install memory modules of the same
Note
size, chip width, density and rank in both channel 0 (CN23) and channel 1
(CN24) DDR4 SO-DIMM sockets.
Hardware Description
Hardware Description
®
Core™ i7/ i5/ i3, Pentium
®
MANO521 Mini ITX Motherboard
Chapter 3
® ®
and Celeron
10 and Linux environments. The
processors,
27
