Base Module
One Base module is required for every library installation. A standalone Base module
is the smallest possible configuration of an SL3000 library.

Configuration Options

The physical capacity varies from 205 to 431 cartridge slots (see
Configuration options include:
8 (standard), 16, or 24 drive slots
■
Perforated window (standard), window storage array, or operator panel
■
CAP (standard)
■

Components

The front of the Base module contains a single CAP, service door, front panel with
LEDs, and a perforated window, optional operator panel, or window storage array.
The rear of the Base module contains the electronics module, power distribution units
(PDUs), DC power supplies, tape drives, and two 1-unit rack spaces.

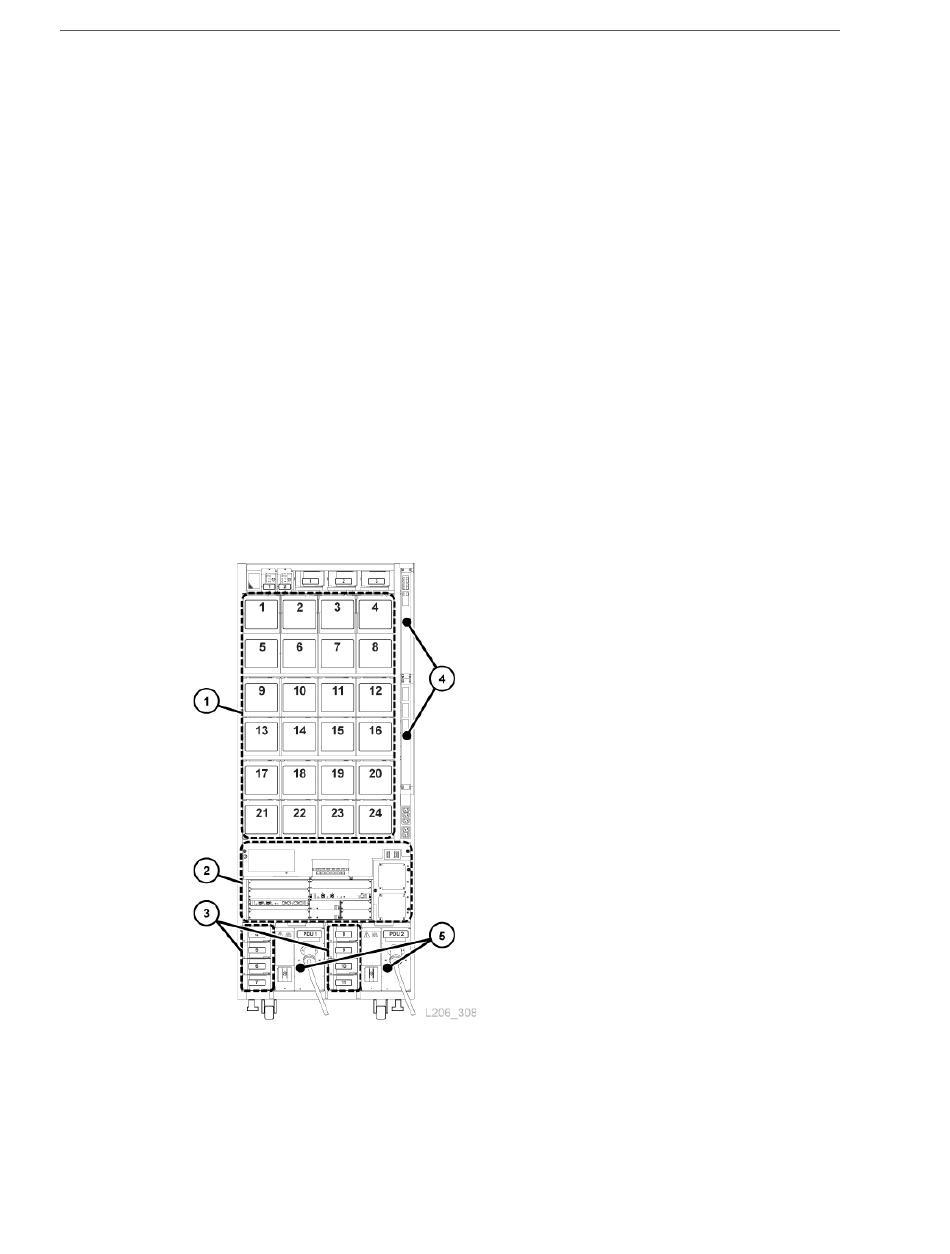

Figure 2–2 Base Module Rear View
Figure Legend:
Tape drives
1.
Electronics module
2.
Drive DC power supplies
3.
Ethernet switches (optional)
4.
2-2 StorageTek SL3000 Systems Assurance Guide
Chapter 4, "Capacity").
