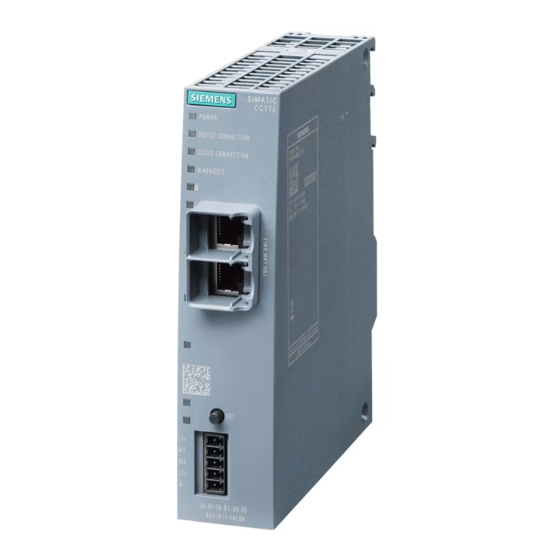

Siemens SIMATIC CC712 Operating Instructions Manual

Industrial ethernet - cloudconnect
Hide thumbs
Table of Contents

Advertisement

Quick Links

SIMATIC CC712
SIMATIC
Industrial Ethernet - CloudConnect
SIMATIC CC712
Operating Instructions
05/2019
C79000-G8976-C503-01
Preface
Application and functions
LEDs, Connectors, Buttons,
CLP
Installation, wiring,
commissioning
Configuration
Diagnostics and
maintenance
Technical specifications
Approvals
Dimension drawings
Accessories
1
2
3
4
5
6
7
8
A

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC CC712

Summary of Contents for Siemens SIMATIC CC712

  • Page 1 SIMATIC CC712 Preface Application and functions LEDs, Connectors, Buttons, SIMATIC Installation, wiring, commissioning Industrial Ethernet - CloudConnect SIMATIC CC712 Configuration Diagnostics and maintenance Operating Instructions Technical specifications Approvals Dimension drawings Accessories 05/2019 C79000-G8976-C503-01...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Preface

    Preface Validity of the document This document contains information on the following product: ● SIMATIC CC712 Article number: 6GK1411-1AC00 Hardware product version 1 Firmware version V1.1 Gateway for connection of a SIMATIC S7 or Modbus station to a cloud system, OPC UA...
  • Page 4 Data block of a SIMATIC CPU New in this release First issue Current manual release on the Internet You can find the current version of this manual on the Internet pages of Siemens Industry Online Support: Link: (https://support.industry.siemens.com/cs/ww/en/ps/25621) Cross references In this document there are cross references to other sections.
  • Page 5 Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers’...
  • Page 6 Siemens contact. Keep to the local regulations. You will find information on returning the product on the Internet pages of Siemens Industry Online Support: Link: (https://support.industry.siemens.com/cs/ww/en/view/109479891)

  • Page 7: Table Of Contents

    Overview of the WBM pages ....................39 General functions of the WBM ....................41 Calling the WBM ........................42 4.4.1 Establishing a connection to the WBM ................... 42 4.4.2 Logging into the WBM......................43 4.4.3 Log out ............................ 44 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 8 Device replacement in the event of a fault ................97 Technical specifications ........................99 Technical specifications - CloudConnect 712 ................ 99 Pinout of the Ethernet interfaces..................100 Permitted cable lengths - Ethernet..................101 Permitted cable lengths - Gigabit Ethernet ................101 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 9 Table of contents Approvals ............................103 Dimension drawings ..........................107 Accessories ............................109 Power supply ........................109 CLPs ............................. 109 Index..............................111 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 10 Table of contents SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 11: Application And Functions

    The gateway supports the connection to cloud systems that support a broker functionality with the above-mentioned requirements and the functions described below. The configuration of cloud access ("Cloud profile") is adapted to communication with the following cloud systems: ● MindSphere (Siemens) Service: MindConnect IoT Extension ● AWS (Amazon) Service: IoT Core...
  • Page 12 You configure the gateway parameters in Web Based Management (WBM). The WBM consists of Web pages stored in the gateway. From a configuration PC you connect to the WBM of the gateway via HTTPS. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 13: Configuration Examples

    CloudConnect 712 for connecting a station to the cloud Connection of a process station to OPC UA clients In the configuration shown, the gateway transfers process data over OPC UA to a central control room or one or more OPC UA clients. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 14 The gateway reads process data from a S7 station and, as OPC UA server, makes it available to one or more OPC UA clients. Figure 1-2 CloudConnect 712 for connecting a station to OPC UA clients SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 15: Other Services And Properties

    With the following means and methods, you can obtain the diagnostics data of the gateway: – LEDs – Web diagnostics You will find more information on diagnostics in the section Diagnostics (Page 93). Configuration limits - communication The gateway supports the following maximum quantity structure. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 16 – Max. 5 subscriptions per session – In total maximum of 50 subscriptions at the same time ● Number of items per subscription – Max. 500 tags per subscription – Max. 2500 tags over all subscriptions SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 17: Range Of Functions Of The Wbm

    If you are using multiple gateways with partially identical configuration data, you can export the configuration file of a gateway, copy it, and download it to additional gateways where you can adapt it as needed. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 18: Scope Of Delivery And Requirements

    For access to the process data, tags or symbols must be created in the relevant CPU. STEP 7 Professional: The "Optimized block access" option must be disabled in DBs. For further details, see section Data points (Page 78). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 19 Exchangeable storage medium for storing configuration data ● NTP server - can be reached over interface P1 / P2 ● DHCP server - can be reached over interface P1 ● DNS server - can be reached over interface P1 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 20 Application and functions 1.7 Scope of delivery and requirements SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 21: Leds, Connectors, Buttons, Clp

    No connection to cloud server Existing connection to cloud server Connection establishment to cloud server No communication with process server Possible causes: Interruption of the communication • Incorrect configuration • No cloud server configured SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 22: Connections

    "Cloud interface in the same subnet" option in the "Interface configuration" in the configuration. The pin assignment of the Ethernet interfaces and other data can be found in the section Technical specifications (Page 99). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 23: External Power Supply

    By resetting to factory settings, the gateway is reset to the status as it was delivered from the factory. This deletes all the configured settings. For the precise effects of resetting, refer to the section Reset (Page 96). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 24: Clp Slot

    The slot for an optional CLP is located on the back of the module. For information on inserting and removing the CLP, see section Using a CLP (Page 35). Figure 2-2 Slot for optional CLP on the back of the device SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 25: Installation, Wiring, Commissioning

    The device may only be operated in an environment with pollution degree 1 or 2 (see IEC 60664-1). WARNING EXPLOSION HAZARD Do not connect or disconnect cables to or from the device when a flammable or combustible atmosphere is present. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 26: Notes On Use In Hazardous Areas According To Atex / Iecex

    Notes on use in hazardous areas according to ATEX / IECEx WARNING DIN rail In the ATEX and IECEx area of application only the Siemens DIN rail 6ES5 710-8MA11 may be used to mount the modules. WARNING Requirements for the cabinet/enclosure...

  • Page 27: General Notices On Use In Hazardous Areas According To Ul Hazloc / Fm

    WARNING Do not remove or replace while circuit is live when a flammable or combustible atmosphere is present. WARNING Explosion hazard Do not disconnect equipment when a flammable or combustible atmosphere is present. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 28: Installation

    60 °C, special precautions must be taken. If the equipment is operated in an ambient environment in excess of 40 °C, only use cables with permitted maximum operating temperature of at least 80 °C. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 29 – DIN rail – S7-1500 standard rail – S7-300 standard rail You can find suitable standard rails in the Siemens accessories program for automation technology, for example: 35 mm standard mounting rail for 19" cabinets, article numbers 6ES5710-8MA11 ● Mounting on pedestal You can use the SCALANCE M pedestal "6GK5898-8MD00"...
  • Page 30 Vertical installation of the rack Wall mounting 1. Prepare the drill holes for wall mounting. For the dimensions, refer to the section "Dimension drawings (Page 107)". 2. Secure the device to the wall with two screws (4 mm). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 31 Protecting the modules from slipping on the DIN rail If you install the modules in an area with mechanical load, use suitable clamping devices at both ends of the device group to secure the modules on the DIN rail, e.g. Siemens and retainer 8WA1808.
  • Page 32 2. Pull the power supply plug and the cables of the communication networks. 3. Pull down the mounting rail release on the rear of the device. 4. Tilt the device out of the standard rail. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 33: Connecting

    The device is designed for operation with a directly connectable safety extra-low voltage (SELV) and protective extra-low voltage (PELV) according to IEC 60364-4-41. Recommendation: Use the power supply of a process station if this is in the vicinity of the gateway. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 34 Ground reference for redundant connection 24 V DC for redundant connection (optional) Ground You will find information about the connectable cable cross sections, power consumption and further technical details in section Technical specifications (Page 99). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 35: Commissioning

    By simply exchanging the plug, all data can be transferred without having to be configured again. The CLP is supplied with power by the gateway. The CLP retains all data permanently when the power is turned off. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 36 1. Turn off the power to the device. 2. Insert a screwdriver between the front edge of the CLP and the slot and remove the CLP. Diagnostics General malfunctions of the CLP are signaled by the respective diagnostic message. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 37: Configuration

    ● Evaluate your plant as a whole in terms of security. Use a cell protection concept with suitable products. ● Check regularly for security updates of the products and use them. ● Check regularly for new features on the Siemens Internet pages. – Here you will find information on industrial security: Link: (http://www.siemens.com/industrialsecurity) –...
  • Page 38 The port is always open and cannot be closed. – Open after configuration The port is open if it has been configured. ● Authentication Specifies whether or not the protocol authenticates the communications partner during access. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 39: Overview Of The Wbm

    Overview of the WBM pages Opening the WBM pages All page titles that you need for navigation through the WBM are located at the top of each WBM page. Open a WBM page by clicking the page title. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 40 – Configuring the data points of the process stations ● Maintenance (Page 87) – Time-of-day synchronization / setting the time – User management – Firmware update – Configuration backup – Process communication, restart – Diagnostic messages – Exporting logging data SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 41: General Functions Of The Wbm

    Confirm all your entries by clicking the "Save" button. Your settings are thus saved to the buffer. The saved configuration data is not applied by the device yet by saving. This prevents inconsistent changes from being loaded to the Runtime system when the WBM page is changed. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 42: Calling The Wbm

    When using a DHCP server you do not need to specify the addressing on the PC to be connected. When it is connected to the network, the PC is assigned an address. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 43: Logging Into The Wbm

    Standard user data for the first login to the WBM is preassigned by the system: User data Default values set in the factory User name admin Password admin An administrator can be set up with all available rights for operation of the WBM. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 44: Log Out

    Opens the online help of the WBM. ● Open Source Software Opens the license terms document for the Open Source Software. If necessary, you can save the document on your PC. ● Siemens Opens the Siemens AG homepage. 4.4.3 Log out Manual logout using the button You log out from the WBM by clicking on this button in the toolbar.

  • Page 45: Start Page

    Current firmware version of the device ● Serial number Serial number of the device Process interface The parameter group displays the current address data of the P2 interface. ● MAC address ● IPv4 Address parameters, Default router SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 46: Interface Configuration

    The following address data is preset in the factory: Table 4- 2 Preset address data Address data preset in the factory Process interface (P2) Cloud interface (P1) IPv4 address 192.168.0.55 192.168.121.55 IPv6 address Host name CloudConnect7 CloudConnect7 Subnet mask 255.255.255.0 255.255.255.0 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 47 The device supports the DHCP client function at the cloud Cloud interface. To use the function, a DHCP server must be located in the subnet. The factory preset host name of the device is transferred to the DHCP server, see table "Preset address data" above. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 48: Process Access

    ● Station name To create a new station, enter a unique name in the input box. ● Add Creates a new station with the previously entered name in the configuration data of the gateway. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 49 STEP 7 for each station. ● IP address IPv4 address of the station interface (CPU or CP) ● Controller family Select the controller family of the connected station from the drop-down list: – S7-1200/1500 – S7-300/400 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 50 CPU for the gateway. ● Polling cycle (ms) Cycle time in milliseconds in which the gateway reads the data from the station. Range of values: 1...1 000 000 000 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 51 When reaching the maximum number, the gateway considers the station to be faulty and terminates the connection. When a connection is terminated, the gateway tries to re- establish the connection. Range of values: 1...32 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 52: Opc Ua

    Security settings of connected clients If you use the gateway as an OPC UA server and the communication partners (UA clients) you are using demand a certificate, you must create or import a self-signed server certificate. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 53 Lower values requested by OPC UA clients are not taken into account. The OPC UA server provides the clients with the UA data in the cycle of the publishing interval. Range of values: 100 .. 65535 ms Default setting: 500 ms SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 54: Opc Ua Security

    When the option is enabled, the corresponding GUI elements are shown: – Created server certificate Shows the name of the created certificate. – + Opens the following dialog for configuring the certificate to be created: SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 55 Ensure the consistency with the configuration data of the OPC UA server in section OPC UA server (Page 52). – Issuer Issuer of the certificate. Default: Siemens – Common name of subject (CN) Application name of the gateway – Signing Algorithm Select the required hash algorithm and the encryption method.
  • Page 56 You use this option to import the certificates of communication partners you trust. Requirement for import of a certificate is that it is available in the PC file system. Imported certificates are displayed in a table with their parameters. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 57 ● If the partner certificate is not trustworthy, the gateway must at least have stored a self- signed certificate of the partner. ● At least one authentication option is enabled (see below). The gateway does not support partner certificates that were issued by multiple CAs (certificate chains). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 58: Authentication

    CPU and the data point name: CPU name Data point name – < >.< > Subscriptions For the number of subscriptions supported by the gateway as OPC UA server for MonitredItems, see section Configuration limits - communication (Page 15). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 59: Cloud Configuration

    Because the requirements on the format of the topics can be different depending on the receiver (broker, cloud), a topic name is made up of different parts. Prefix and suffix generally apply to all topics. Prefix and suffix are not relevant for groups. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 60: Profile

    You select the connected cloud for each profile via the "Cloud provider" drop-down list. Selecting a cloud provider has the effect that certain parameters are preset, shown or hidden according to the different requirements of the respective cloud. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 61 Name change of the assigned topic "s/us" If you give a different name to the assigned topic in the configuration, please note that it may not be possible for the data to be evaluated by IoT Extension. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 62: Mqtt Configuration

    Permitted range: 0..65535 If you enter 0 (zero), the function is disabled. Default setting: 10 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 63 The testament is the content of the message that is sent to the subscribers registered on the broker for this topic when the connection is terminated. The testament message is saved on the broker. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 64: Certificates

    ● The following types of key files are supported: *.pem MQTT server certificate manager You use this parameter group to import the server certificate of the broker. The server certificate is provided by your service provider. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 65 When the option is enabled, the required buttons are shown. They correspond to those of the server certificate, see above. ● Import client certificate Shows the name of the selected certificate file in the file system. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 66: Device Parameters

    For configuration of the profile, refer to the section Profile (Page 60). For structuring the data in topics or groups and configuring the topic names, refer to the section Notes on structuring data (Page 59). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 67 You can label data points for which the transfer of values is triggered by a threshold trigger, for example, as an event. – You would like to add the prefix "Plant1" for plant 1 (Topic level). Enter the following in the "Prefix" text box: evt/Plant1/ SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 68 Use this default name when connecting to MindSphere via IoT Extension. Adapt the name when connecting to another cloud according to the cloud provider's specifications. – ⇒ Validity: AWS / Azure / IBM Cloud The names of the configured topics are displayed. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 69 When a connection is aborted, the data frames are buffered for QoS 1 and QoS 2. See also the section "Connection abort" below. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 70 – During the connection abort - Cloud server cannot be reached The gateway sends the last valid values once with the quality "Good". – Recurring connection For the behavior, see the section "Data buffering". SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 71: User Data Format

    If changes are made later in a group or topic, the changes are only applied to the relevant topic or group and not to all topics or groups when you press "Apply". ● Apply Applies the current settings in the topic editor. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 72 "User data format" text box. If the code meets the requirements, do not change it. The following templates are available: ● MindConnect IoT Extension Template for the connection to: – MindSphere (Siemens) / MindConnect IoT Extension ● JSON Template for the connection to: – AWS (Amazon) / IoT Core –...
  • Page 73 – Example for transferring data with separator: Syntax: " " <DATAPOINTS_BEGIN><DATAPOINT_NAME>:<DATAPOINT_VALUE>;<DATAPOINTS_END> Results in: String with semicolon (;) as separator between the values With this format, a semicolon is also inserted after the last sent item of data. Alternative: SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 74 Name of the data point ● Data point ID Number":"<DATAPOINT_ID> Automatically assigned ID of the data point ● Group Name <GROUP> Group Name ● Value <DATAPOINT_VALUE> Value of the data point ● Attribute <ADDITIONAL_ATTRIBUTE> Attribute (MindConnect IoT Extension) SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 75 Below you will find an example for the transferred user data of a topic in JSON syntax. The topic contains the four data points "DP1", "DP2", "DP3" and "DP4". "Timestamp":"2018-05-03-13:46:49", "DP1": "Value":"false", "Device":"PLC_1", "Type":"BOOL" "DP2": "Value":"1694332943", "Device":"PLC_1", "Type":"INT32" "DP3": "Value":"0.496043966059748", "Device":"PLC_1", "Type":"DOUBLE_FLOAT" SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 76: Station Assignment

    ⇒ Validity: AWS / Azure / Bluemix / Other Cloud When entering the name, a drop-down list with topics is shown that starts with the letters you have entered. Click on an entry to assign the data point. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 77 – dBm = Transmit power in decibel-milliwatts (logarithmic ratio) – lux = Illuminance in lux (lm/m Other compound units of the SI system can also be specified, for example: m/h, m/s, m, km, mW, kW, mWh, mA, VArh SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 78: Data Points

    In addition, you can export the tag information of the CPU via a source file from STEP 7 for S7 stations and import it as basis for the data point configuration, see Import tags (Page 84). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 79 Assigns the parameter values to the data points that you selected using the selection column (left) of the data point table before opening the dialog. – Set for all Assigns the parameter values to all data points of the data point table. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 80 Assign a unique name to the data point. ● Data type Configured data point of the data area of the data point to be read You can find the data types supported in the table of data types below. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 81 Number of characters for the "String" data type (1 .. 254) ● Access The option specifies access of the communication partners to the gateway data. – Read Only read access is permitted. – Write Read and write access is permitted (OPC UA only). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 82 For time triggers, select the value of the cycle and the respective unit of time from the drop-down list. – Cyclic The value of the data point is transferred cyclically. Ranges of values: 1 .. 99 999 999 ms 1 .. 99 999 s SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 83 The tag <DATAPOINT_TYPE> specifies the data type of the transferred values when publishing the user data to the cloud, see section User data format (Page 71). ● x : Supported ● - : Not supported SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 84: Import Tags

    4.10.3 Import tags In addition to manual data point configuration, you can import the tag information using a file exported from STEP 7 for S7 stations. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 85 – Click on the "Export" icon above the tag table. – Select the relevant options in the following dialog. – Save the PLC tags in one of the following file formats: *.xlsx, *.xml, *.sdf SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 86 After a source file is imported from a DB, the following columns are first shown in a table: – Data block (DB name) – Operand area (DB) – DB number Only this box can be edited. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 87: Maintenance

    Time-of-day format and time stamps The device gives the time as UTC. The time of day includes the time difference since 01.01.1970 in milliseconds. The time stamps of the transferred data are transferred in UTC format (48 bits). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 88 The secure method NTP (secure) uses authentication with symmetrical keys. Parameters for the NTP (secure) method ● Key ID Key ID of the NTP server. Numeric value. Range of values: 1..65534 ● Hash algorithm Select alternatively: – SHA-1 – MD5 SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 89: User

    For the preset standard user data for initial login, see section Logging into the WBM (Page 43). Note Changing the password For security reasons, the user name and password preset at the factory must be changed at the first login. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 90 – Change user name – Change password – Change user name and password ● Current password Enter the current password before you make any changes. ● New user name Enter a new user name to change it. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 91: Firmware

    Digitally signed and encrypted firmware prevents manipulation by third parties To be able to check the authenticity of the firmware, the firmware is digitally signed by Siemens. This allows manipulation by third parties to be detected and prevented. The encryption of the firmware is intended to prevent re-engineering.

  • Page 92: Saving

    After a configuration file saved on the PC is selected with the "Browse" button, the file name is displayed here. ● Browse Searches the file system of the PC for a configuration file saved there that is intended to be loaded on the gateway. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 93: Communication / Restart

    Click the button to initiate a restart of the application. 4.11.6 Diagnostics Diagnostic messages This page contains diagnostics messages for internal events and errors. ● Update Here you set whether and in which cycle the WBM updates the displayed diagnostic messages. SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 94: Logging

    Using the "Export" button, you can save this data in a logging file (*.enc). The information in this unreadable file is encrypted and can only be read by Siemens Industry Online Support. Send the log file back to your contact at Siemens Industry Online Support.

  • Page 95: Diagnostics And Maintenance

    You can find the current firmware version of the device on the WBM page Info (Page 45). New firmware versions If a new firmware version is available for the module, you will find this on the Internet pages of Siemens Industry Online Support: Link: (https://support.industry.siemens.com/cs/ww/en/ps/25621/dl) Save the firmware file on the configuration PC.

  • Page 96: Reset

    They are reset to the factory default address data. – All other configuration data of the gateway – All process data in the memory of the gateway – User names and passwords – All imported certificates – Diagnostics buffer SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 97: Device Replacement In The Event Of A Fault

    Establishing a connection to the WBM (Page 42). Device replacement in the event of a fault Device defective If a fault develops, please send the device to your SIEMENS service center for repair. Repairs on-site are not possible. Replacing the gateway...
  • Page 98 Diagnostics and maintenance 5.4 Device replacement in the event of a fault SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 99: Technical Specifications

    During operation ≤ 60 % at 25 °C, no condensation Permitted contaminant concentration Corrosive gas test according to ISA-S71.04 severity level G1, G2, G3 < 0.5 ppm • • < 0.1 ppm • • SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 100: Pinout Of The Ethernet Interfaces

    The table below shows the pin assignment of the two interfaces P1 and P2. View of the RJ-45 jack Signal name Assignment D1+ bidirectional D1- bidirectional D2+ bidirectional D3+ bidirectional D3- bidirectional D2- bidirectional D4+ bidirectional D4- bidirectional SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 101: Permitted Cable Lengths - Ethernet

    Max. 100 m IE FC TP Standard Cable with IE FC RJ45 Plug 180 • Max. 90 m IE FC TP Standard Cable + 10 m TP Cord via IE FC RJ45 Outlet • See also Siemens Mall: (https://mall.industry.siemens.com) Permitted cable lengths - Gigabit Ethernet Permitted cable lengths - Gigabit Alternative combinations Ethernet 0 ...
  • Page 102 Technical specifications 6.4 Permitted cable lengths - Gigabit Ethernet SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 103: Approvals

    Division Process Industries and Drives Process Automation DE-76181 Karlsruhe Germany You can also find the EU Declaration of Conformity on the Internet at the following address: Link: (https://support.industry.siemens.com/cs/ww/en/ps/25621/cert) > Certificate: Declaration of conformity / EC/EU certificate of conformity SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 104 Notes on use in hazardous areas according to ATEX / IECEx (Page 26). You should also note the information in the document "Use of subassemblies/modules in a Zone 2 Hazardous Area" that you will find on the Internet at the following address: Link: (https://support.industry.siemens.com/cs/ww/en/view/78381013) SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 105 Ta: Refer to the temperature class on the type plate Note the conditions for the safe deployment of the product according to the section General notices on use in hazardous areas according to UL HazLoc / FM (Page 27). SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 106 SIMATIC NET products are regularly submitted to the relevant authorities and approval centers for approvals relating to specific markets and applications. If you require a list of the current approvals for individual devices, consult your Siemens contact or check the Internet pages of Siemens Industry Online Support: Link: (https://support.industry.siemens.com/cs/ww/en/ps/15248/cert)

  • Page 107: Dimension Drawings

    Dimension drawings All dimensions in the dimension drawings are in millimeters. Figure 8-1 Front view SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...
  • Page 108 Dimension drawings Figure 8-2 Side view SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 109: Accessories

    Power supply Power supplies for the gateway Excerpt from the Siemens program for power supplies SITOP and S7-1500: ● SITOP PSU100C 24 V / 0.6 A stabilized power supply, input: AC 120/230 V, output: DC 24 V / 0.6 A Article number: 6EP1331-5BA00 ●...
  • Page 110 The following CLPs are available: ● SCALANCE CLP 2GB Article number: 6GK1900-0UB00-0AA0 Exchangeable storage medium for easy device replacement ● SCALANCE CLP EEC 2GB Article number: 6GK1900-0UQ00-0AA0 Exchangeable storage medium with painted circuit boards for easy device replacement SIMATIC CC712 Operating Instructions, 05/2019, C79000-G8976-C503-01...

  • Page 111: Index
