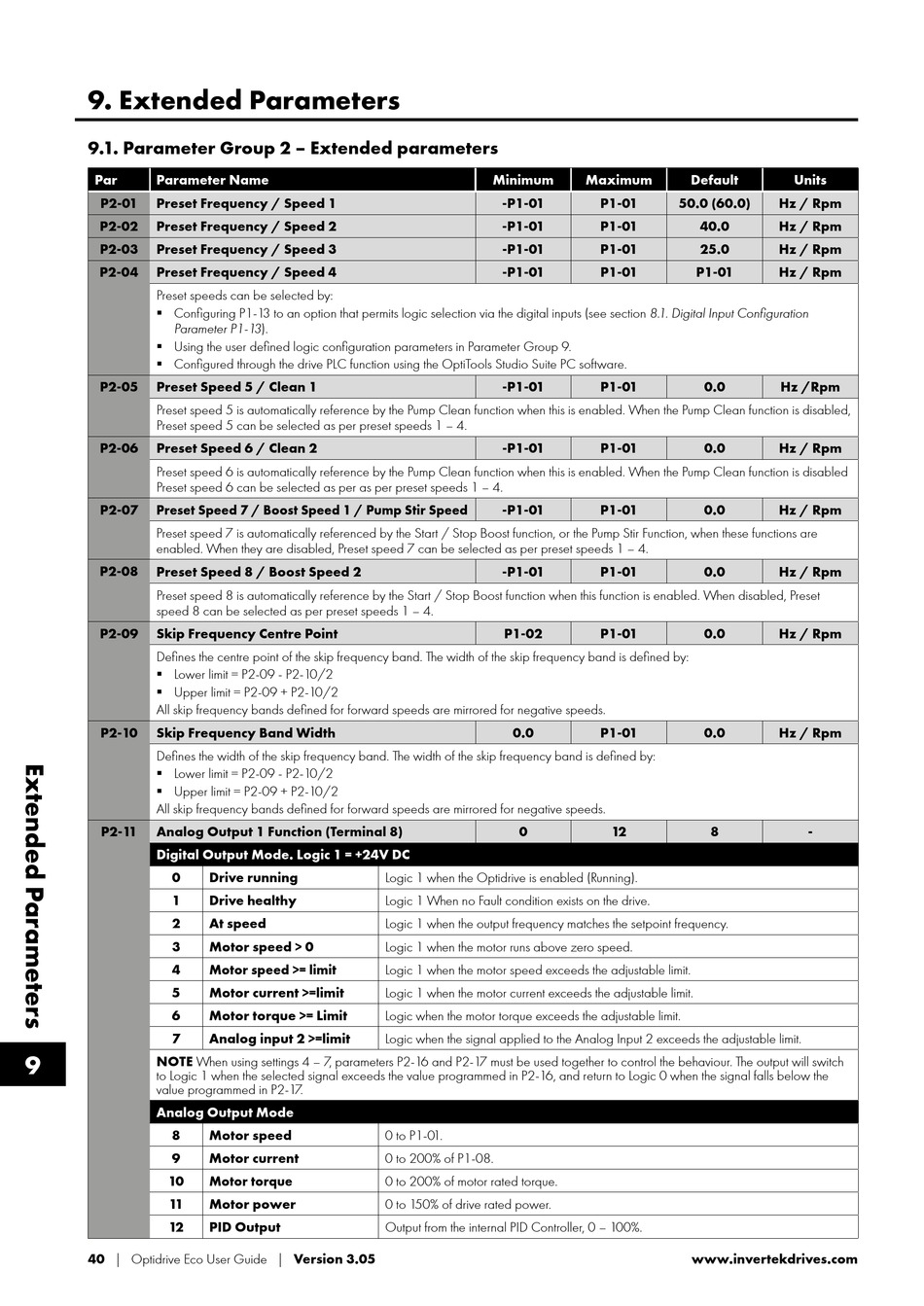

9. Extended Parameters

9.1. Parameter Group 2 – Extended parameters
Par Parameter Name
P2-01 Preset Frequency / Speed 1
P2-02 Preset Frequency / Speed 2
P2-03 Preset Frequency / Speed 3
P2-04 Preset Frequency / Speed 4
Preset speeds can be selected by:
 Configuring P1-13 to an option that permits logic selection via the digital inputs (see section 8. 1 . Digital Input Configuration
Parameter P1-13).
 Using the user defined logic configuration parameters in Parameter Group 9.
 Configured through the drive PLC function using the OptiTools Studio Suite PC software.
P2-05 Preset Speed 5 / Clean 1
Preset speed 5 is automatically reference by the Pump Clean function when this is enabled. When the Pump Clean function is disabled,
Preset speed 5 can be selected as per preset speeds 1 – 4.
P2-06 Preset Speed 6 / Clean 2
Preset speed 6 is automatically reference by the Pump Clean function when this is enabled. When the Pump Clean function is disabled
Preset speed 6 can be selected as per as per preset speeds 1 – 4.
P2-07 Preset Speed 7 / Boost Speed 1 / Pump Stir Speed
Preset speed 7 is automatically referenced by the Start / Stop Boost function, or the Pump Stir Function, when these functions are
enabled. When they are disabled, Preset speed 7 can be selected as per preset speeds 1 – 4.
P2-08
Preset Speed 8 / Boost Speed 2
Preset speed 8 is automatically reference by the Start / Stop Boost function when this function is enabled. When disabled, Preset
speed 8 can be selected as per preset speeds 1 – 4.
P2-09 Skip Frequency Centre Point
Defines the centre point of the skip frequency band. The width of the skip frequency band is defined by:
 Lower limit = P2-09 - P2-10/2
 Upper limit = P2-09 + P2-10/2
All skip frequency bands defined for forward speeds are mirrored for negative speeds.
P2-10 Skip Frequency Band Width
Defines the width of the skip frequency band. The width of the skip frequency band is defined by:
 Lower limit = P2-09 - P2-10/2
 Upper limit = P2-09 + P2-10/2
All skip frequency bands defined for forward speeds are mirrored for negative speeds.
P2-11 Analog Output 1 Function (Terminal 8)
Digital Output Mode. Logic 1 = +24V DC
0
1
2
3
4
5
6
7
9
NOTE When using settings 4 – 7, parameters P2-16 and P2-17 must be used together to control the behaviour. The output will switch
to Logic 1 when the selected signal exceeds the value programmed in P2-16, and return to Logic 0 when the signal falls below the
value programmed in P2-17.
Analog Output Mode
8
9
10
11
12
40 | Optidrive Eco User Guide | Version 3.05
Drive running
Drive healthy
At speed
Motor speed > 0
Motor speed >= limit
Motor current >=limit
Motor torque >= Limit
Analog input 2 >=limit
Motor speed
Motor current
Motor torque
Motor power
PID Output
Minimum
-P1-01
-P1-01
-P1-01
-P1-01
-P1-01
-P1-01
-P1-01
-P1-01
P1-02
0.0
0
Logic 1 when the Optidrive is enabled (Running).
Logic 1 When no Fault condition exists on the drive.
Logic 1 when the output frequency matches the setpoint frequency.
Logic 1 when the motor runs above zero speed.
Logic 1 when the motor speed exceeds the adjustable limit.
Logic 1 when the motor current exceeds the adjustable limit.
Logic when the motor torque exceeds the adjustable limit.
Logic when the signal applied to the Analog Input 2 exceeds the adjustable limit.
0 to P1-01.
0 to 200% of P1-08.
0 to 200% of motor rated torque.
0 to 150% of drive rated power.
Output from the internal PID Controller, 0 – 100%.
Maximum Default
P1-01 50.0 (60.0)
P1-01 40.0
P1-01 25.0
P1-01 P1-01
P1-01 0.0
P1-01 0.0
P1-01 0.0
P1-01 0.0
P1-01 0.0
P1-01 0.0
12 8
www.invertekdrives.com
Units
Hz / Rpm
Hz / Rpm
Hz / Rpm
Hz / Rpm
Hz /Rpm
Hz / Rpm
Hz / Rpm
Hz / Rpm
Hz / Rpm
Hz / Rpm
-
