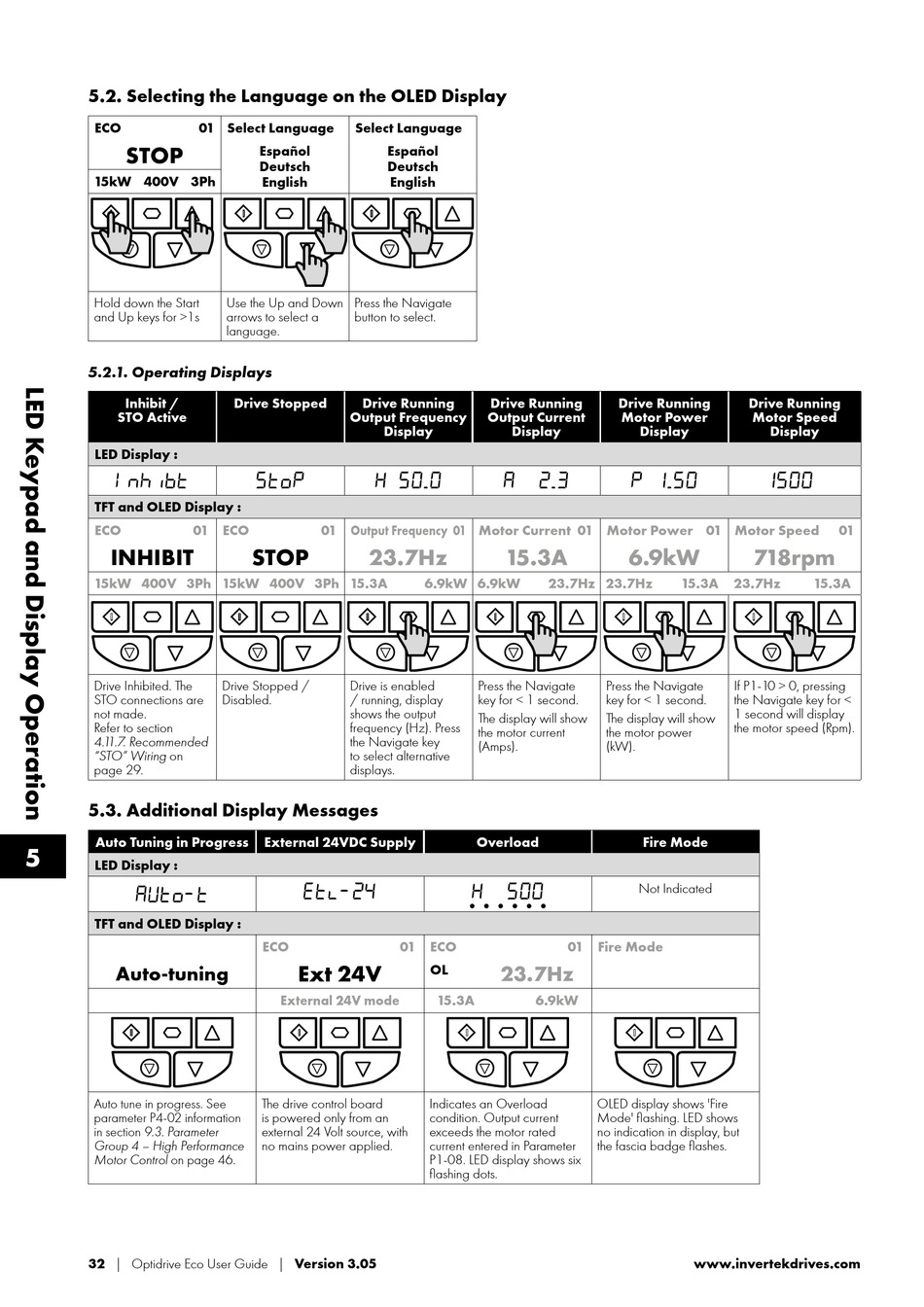

5.2. Selecting the Language on the OLED Display

ECO 01 Select Language
STOP
15kW 400V 3Ph
Hold down the Start
and Up keys for >1s
5.2.1. Operating Displays
Inhibit /
STO Active
LED Display :
t
TFT and OLED Display :
ECO 01 ECO
INHIBIT
15kW 400V 3Ph 15kW 400V 3Ph 15.3A
Drive Inhibited. The
STO connections are
not made.
Refer to section
4. 1 1.7. Recommended
"STO" Wiring on
page 29.

5.3. Additional Display Messages

Auto Tuning in Progress
5
LED Display :
to-t
TFT and OLED Display :
Auto-tuning
Auto tune in progress. See
parameter P4-02 information
in section 9.3. Parameter
Group 4 – High Performance
Motor Control on page 46.
32 | Optidrive Eco User Guide | Version 3.05
Select Language
Español Español
Deutsch Deutsch
English English
Use the Up and Down Press the Navigate
arrows to select a button to select.
language.
Drive Stopped Drive Running
Output Frequency
Display
SToP  .
01 Output Frequency 01 Motor Current 01 Motor Power 01 Motor Speed
STOP 23.7Hz
Drive Stopped / Drive is enabled
Disabled. / running, display
shows the output
frequency (Hz). Press
the Navigate key
to select alternative
displays.
External 24VDC Supply
T-
ECO
Ext 24V
External 24V mode
The drive control board
is powered only from an
external 24 Volt source, with
no mains power applied.
Drive Running
Output Current
Display
 .
15.3A
6.9kW 6.9kW 23.7Hz 23.7Hz
Press the Navigate
key for < 1 second.
The display will show
the motor current
(Amps).
Overload
 
01 ECO 01 Fire Mode
23.7Hz
OL
15.3A 6.9kW
Indicates an Overload
condition. Output current
exceeds the motor rated
current entered in Parameter
P1-08. LED display shows six
flashing dots.
Drive Running Drive Running
Motor Power Motor Speed
Display Display
P . 
6.9kW 718rpm
15.3A 23.7Hz
Press the Navigate If P1-10 > 0, pressing
key for < 1 second. the Navigate key for <
1 second will display
The display will show
the motor speed (Rpm).
the motor power
(kW).
Fire Mode
Not Indicated
OLED display shows 'Fire
Mode' flashing. LED shows
no indication in display, but
the fascia badge flashes.
