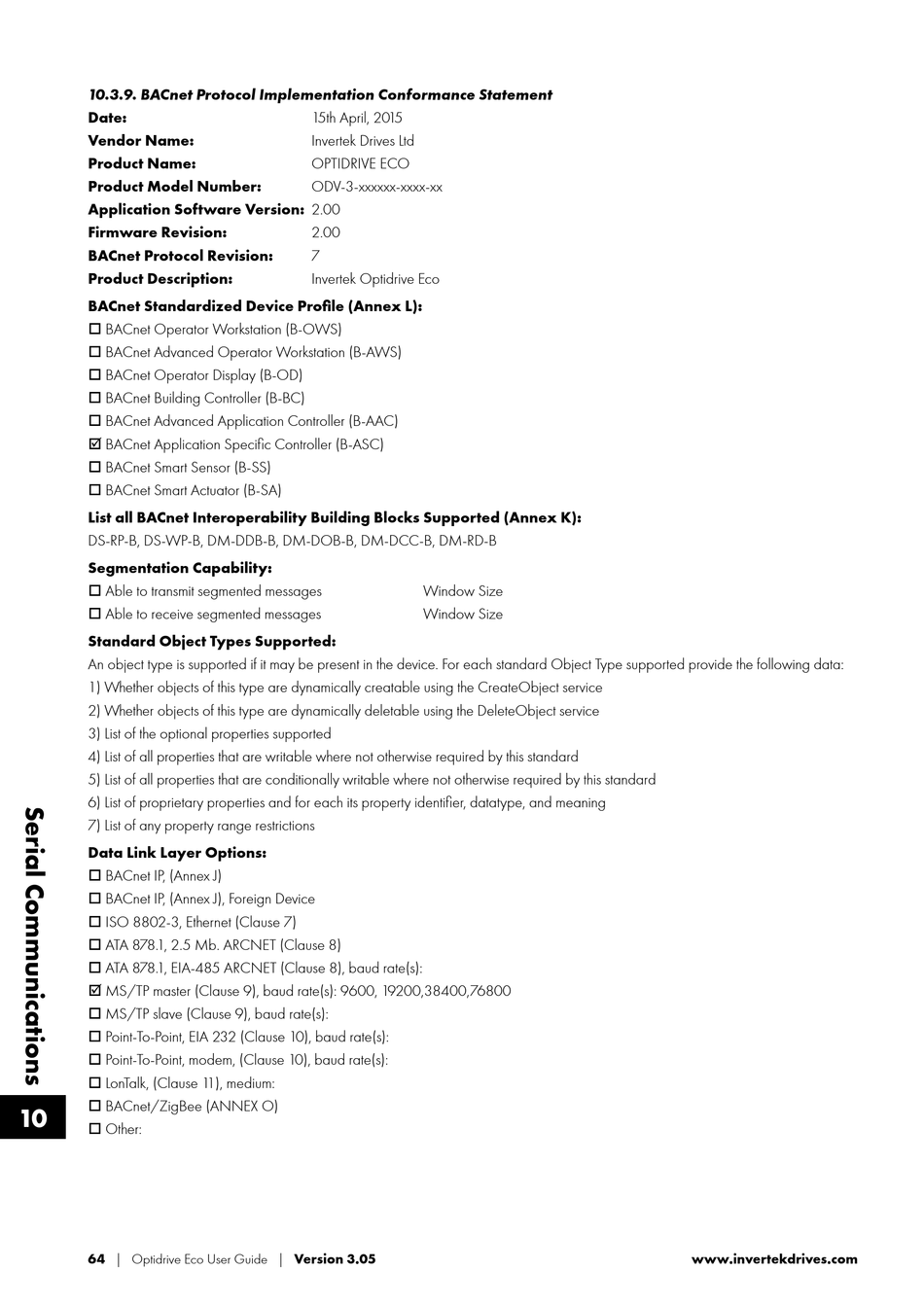

10.3.9. BACnet Protocol Implementation Conformance Statement
Date:
Vendor Name:
Product Name:
Product Model Number:
Application Software Version: 2.00
Firmware Revision:
BACnet Protocol Revision:
Product Description:
BACnet Standardized Device Profile (Annex L):
 BACnet Operator Workstation (B-OWS)
 BACnet Advanced Operator Workstation (B-AWS)
 BACnet Operator Display (B-OD)
 BACnet Building Controller (B-BC)
 BACnet Advanced Application Controller (B-AAC)
 BACnet Application Specific Controller (B-ASC)
 BACnet Smart Sensor (B-SS)
 BACnet Smart Actuator (B-SA)
List all BACnet Interoperability Building Blocks Supported (Annex K):
DS-RP-B, DS-WP-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-RD-B
Segmentation Capability:
 Able to transmit segmented messages
 Able to receive segmented messages
Standard Object Types Supported:
An object type is supported if it may be present in the device. For each standard Object Type supported provide the following data:
1) Whether objects of this type are dynamically creatable using the CreateObject service
2) Whether objects of this type are dynamically deletable using the DeleteObject service
3) List of the optional properties supported
4) List of all properties that are writable where not otherwise required by this standard
5) List of all properties that are conditionally writable where not otherwise required by this standard
6) List of proprietary properties and for each its property identifier, datatype, and meaning
7) List of any property range restrictions
Data Link Layer Options:
 BACnet IP, (Annex J)
 BACnet IP, (Annex J), Foreign Device
 ISO 8802-3, Ethernet (Clause 7)
 ATA 878. 1 , 2.5 Mb. ARCNET (Clause 8)
 ATA 878. 1 , EIA-485 ARCNET (Clause 8), baud rate(s):
 MS/TP master (Clause 9), baud rate(s): 9600, 19200,38400,76800
 MS/TP slave (Clause 9), baud rate(s):
 Point-To-Point, EIA 232 (Clause 10), baud rate(s):
 Point-To-Point, modem, (Clause 10), baud rate(s):
 LonTalk, (Clause 1 1), medium:
 BACnet/ZigBee (ANNEX O)
10
 Other:
64 | Optidrive Eco User Guide | Version 3.05
15th April, 2015
Invertek Drives Ltd
OPTIDRIVE ECO
ODV-3-xxxxxx-xxxx-xx
2.00
7
Invertek Optidrive Eco
Window Size
Window Size
