Guidelines For Mounting (Ip66 Units) - Invertek Drives Eco Optidrive ODV-3-220043-1F12-SN User Manual

Drive Size
2 (IP66)
3 (IP66)
4 (IP55)
5 (IP55)
6 (IP55)
7 (IP55)
NOTE
Typical drive heat losses are approximately 2% of the operating load power.
The above dimensions are for guidance only, the operating ambient temperature of the drive MUST be maintained within the specified limits or
allowed derating at all times.

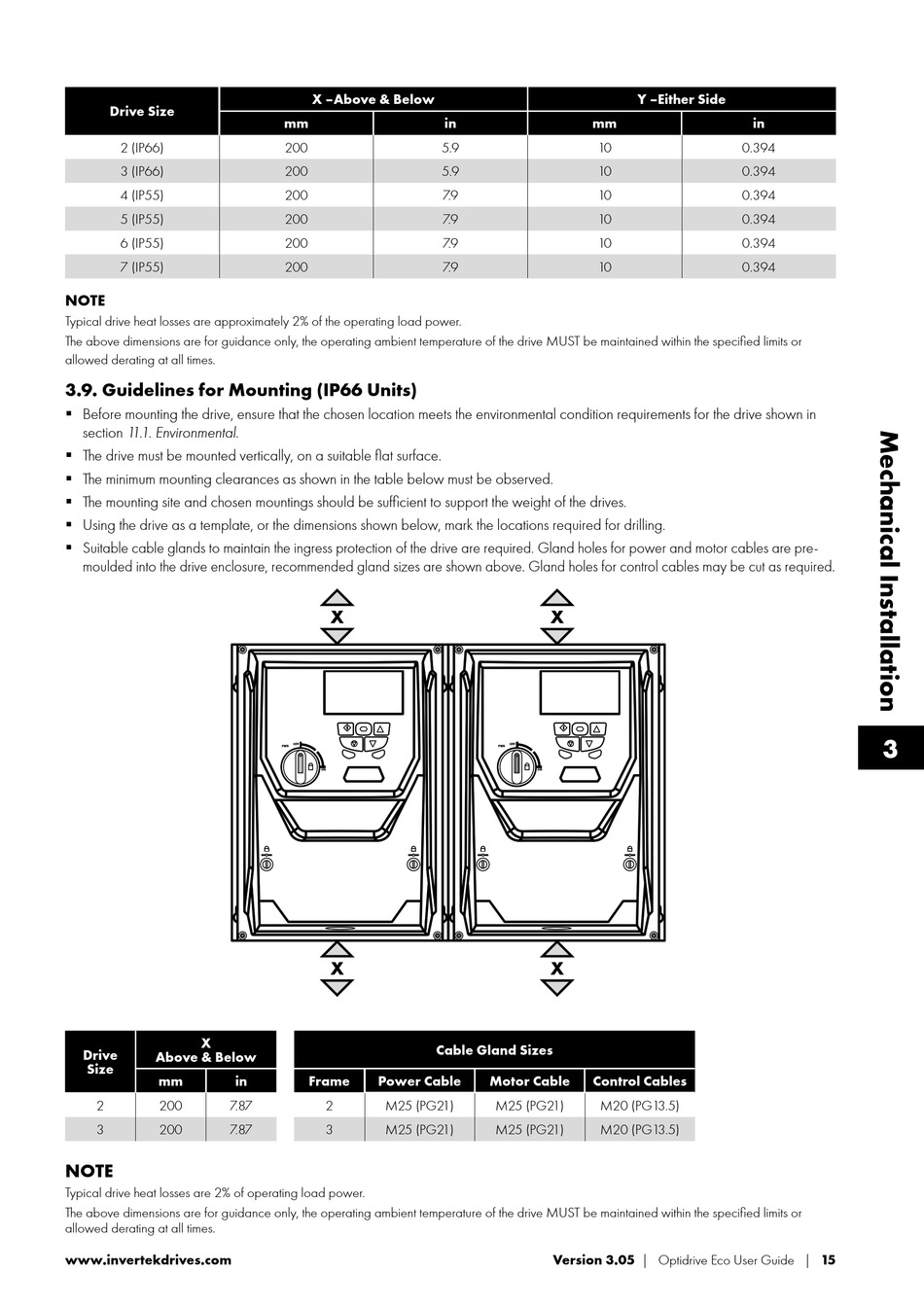

3.9. Guidelines for Mounting (IP66 Units)

 B efore mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 1 1. 1 . Environmental.
 T he drive must be mounted vertically, on a suitable flat surface.
 T he minimum mounting clearances as shown in the table below must be observed.
 T he mounting site and chosen mountings should be sufficient to support the weight of the drives.
 Using the drive as a template, or the dimensions shown below, mark the locations required for drilling.
 S uitable cable glands to maintain the ingress protection of the drive are required. Gland holes for power and motor cables are pre-
moulded into the drive enclosure, recommended gland sizes are shown above. Gland holes for control cables may be cut as required.
X
Drive
Above & Below
Size
mm in
2 200 7.87
3 200 7.87
NOTE
Typical drive heat losses are 2% of operating load power.
The above dimensions are for guidance only, the operating ambient temperature of the drive MUST be maintained within the specified limits or
allowed derating at all times.
www.invertekdrives.com
X –Above & Below
mm in
200 5.9
200 5.9
200 7.9
200 7.9
200 7.9
200 7.9
OFF
PWR
ON
Cable Gland Sizes
Frame Power Cable
2 M25 (PG21)
3 M25 (PG21)
Y –Either Side
mm
10
10
10
10
10
10
OFF
PWR
ON
Motor Cable Control Cables
M25 (PG21) M20 (PG13.5)
M25 (PG21) M20 (PG13.5)
Version 3.05 | Optidrive Eco User Guide | 15
in
0.394
0.394
0.394
0.394
0.394
0.394
3
