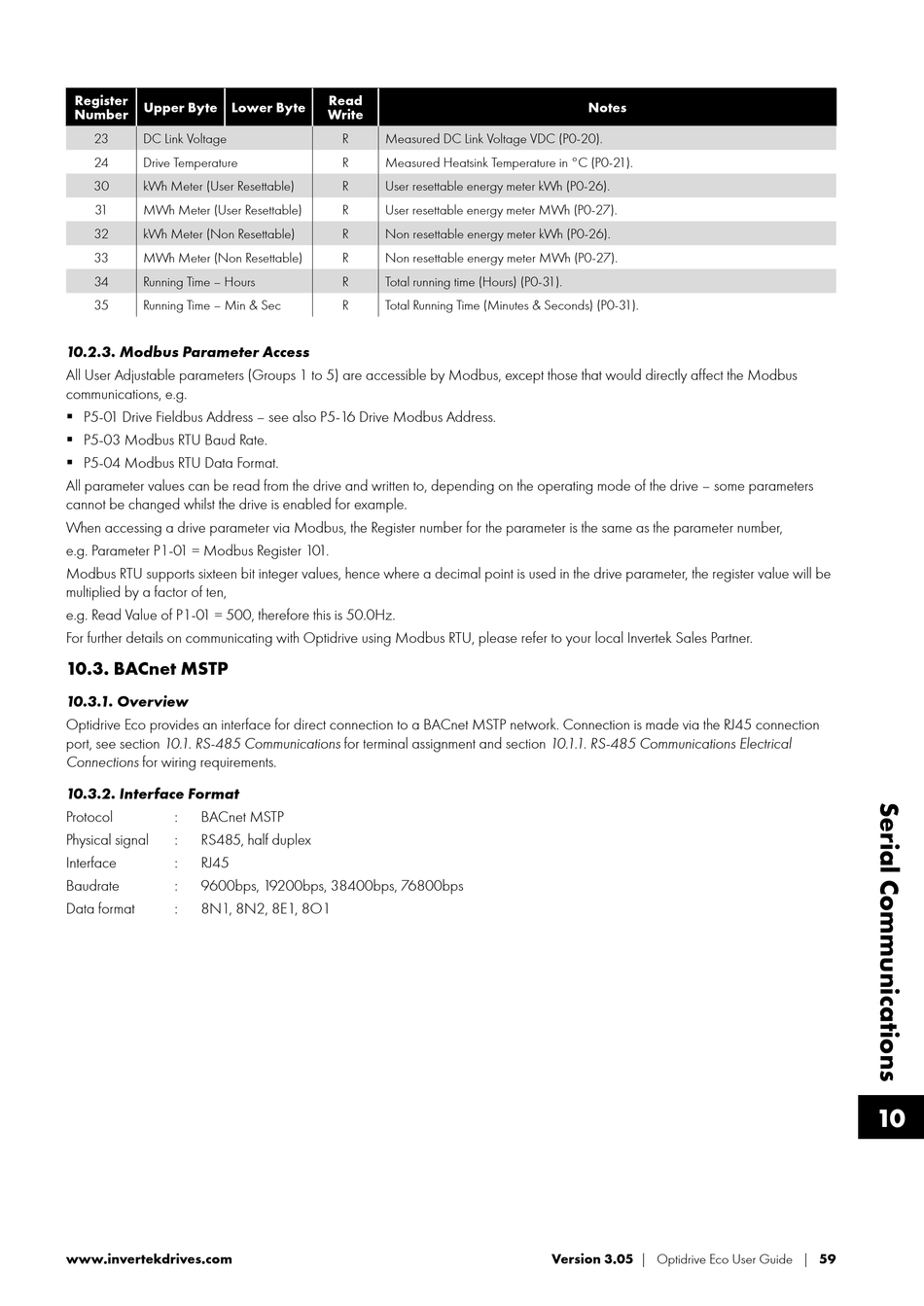

Register
Upper Byte Lower Byte
Number
23
DC Link Voltage
24
Drive Temperature
30
kWh Meter (User Resettable)
31
MWh Meter (User Resettable)
32
kWh Meter (Non Resettable)
33
MWh Meter (Non Resettable)
34
Running Time – Hours
35
Running Time – Min & Sec
10.2.3. Modbus Parameter Access
All User Adjustable parameters (Groups 1 to 5) are accessible by Modbus, except those that would directly affect the Modbus
communications, e.g.
 P5-01 Drive Fieldbus Address – see also P5-16 Drive Modbus Address.
 P5-03 Modbus RTU Baud Rate.
 P5-04 Modbus RTU Data Format.
All parameter values can be read from the drive and written to, depending on the operating mode of the drive – some parameters
cannot be changed whilst the drive is enabled for example.
When accessing a drive parameter via Modbus, the Register number for the parameter is the same as the parameter number,
e.g. Parameter P1-01 = Modbus Register 101.
Modbus RTU supports sixteen bit integer values, hence where a decimal point is used in the drive parameter, the register value will be
multiplied by a factor of ten,
e.g. Read Value of P1-01 = 500, therefore this is 50.0Hz.
For further details on communicating with Optidrive using Modbus RTU, please refer to your local Invertek Sales Partner.

10.3. BACnet MSTP

10.3.1. Overview
Optidrive Eco provides an interface for direct connection to a BACnet MSTP network. Connection is made via the RJ45 connection
port, see section 10. 1 . RS-485 Communications for terminal assignment and section 10. 1 . 1 . RS-485 Communications Electrical
Connections for wiring requirements.
10.3.2. Interface Format
Protocol
:
BACnet MSTP
Physical signal
:
RS485, half duplex
Interface
:
RJ45
Baudrate
:
9600bps, 19200bps, 38400bps, 76800bps
Data format
:
8N1, 8N2, 8E1, 8O1
www.invertekdrives.com
Read
Write
R
Measured DC Link Voltage VDC (P0-20).
R
Measured Heatsink Temperature in °C (P0-21).
R
User resettable energy meter kWh (P0-26).
R
User resettable energy meter MWh (P0-27).
R
Non resettable energy meter kWh (P0-26).
R
Non resettable energy meter MWh (P0-27).
R
Total running time (Hours) (P0-31).
R
Total Running Time (Minutes & Seconds) (P0-31).
Notes
Version 3.05 | Optidrive Eco User Guide | 59
