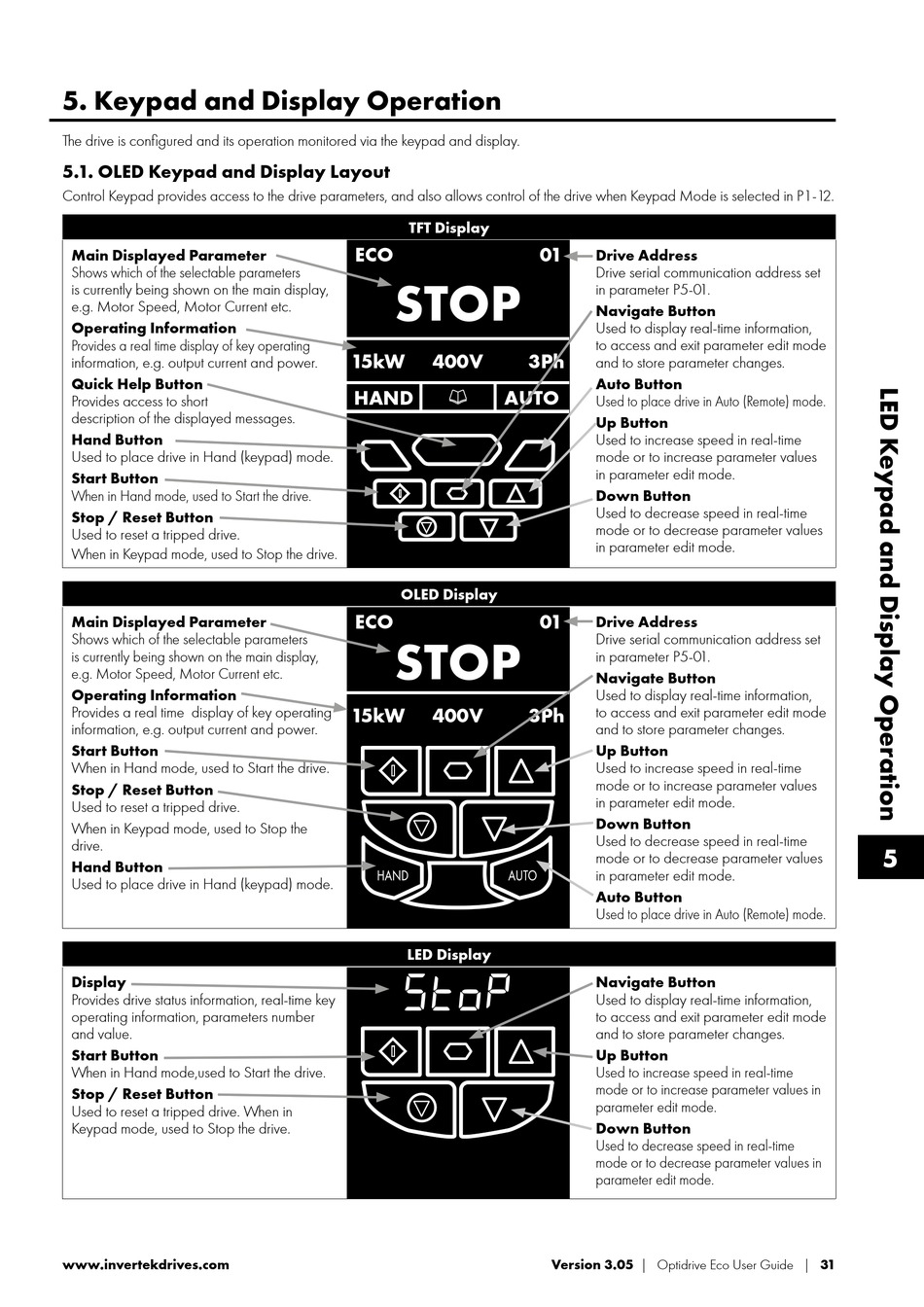

5. Keypad and Display Operation

The drive is configured and its operation monitored via the keypad and display.

5.1. OLED Keypad and Display Layout

Control Keypad provides access to the drive parameters, and also allows control of the drive when Keypad Mode is selected in P1-12.
Main Displayed Parameter
Shows which of the selectable parameters
is currently being shown on the main display,
e.g. Motor Speed, Motor Current etc.
Operating Information
Provides a real time display of key operating
information, e.g. output current and power.
Quick Help Button
Provides access to short
description of the displayed messages.
Hand Button
Used to place drive in Hand (keypad) mode.
Start Button
When in Hand mode, used to Start the drive.
Stop / Reset Button
Used to reset a tripped drive.
When in Keypad mode, used to Stop the drive.
Main Displayed Parameter
Shows which of the selectable parameters
is currently being shown on the main display,
e.g. Motor Speed, Motor Current etc.
Operating Information
Provides a real time display of key operating
information, e.g. output current and power.
Start Button
When in Hand mode, used to Start the drive.
Stop / Reset Button
Used to reset a tripped drive.
When in Keypad mode, used to Stop the
drive.
Hand Button
Used to place drive in Hand (keypad) mode.
Display
Provides drive status information, real-time key
operating information, parameters number
and value.
Start Button
When in Hand mode,used to Start the drive.
Stop / Reset Button
Used to reset a tripped drive. When in
Keypad mode, used to Stop the drive.
www.invertekdrives.com
TFT Display
ECO
STOP
15kW 400V
HAND AUTO
OLED Display
ECO
STOP
15kW 400V
LED Display
SToP
01
Drive Address
Drive serial communication address set
in parameter P5-01.
Navigate Button
Used to display real-time information,
to access and exit parameter edit mode
3Ph
and to store parameter changes.
Auto Button
Used to place drive in Auto (Remote) mode.
Up Button
Used to increase speed in real-time
mode or to increase parameter values
in parameter edit mode.
Down Button
Used to decrease speed in real-time
mode or to decrease parameter values
in parameter edit mode.
01
Drive Address
Drive serial communication address set
in parameter P5-01.
Navigate Button
Used to display real-time information,
3Ph
to access and exit parameter edit mode
and to store parameter changes.
Up Button
Used to increase speed in real-time
mode or to increase parameter values
in parameter edit mode.
Down Button
Used to decrease speed in real-time
mode or to decrease parameter values
in parameter edit mode.
Auto Button
Used to place drive in Auto (Remote) mode.
Navigate Button
Used to display real-time information,
to access and exit parameter edit mode
and to store parameter changes.
Up Button
Used to increase speed in real-time
mode or to increase parameter values in
parameter edit mode.
Down Button
Used to decrease speed in real-time
mode or to decrease parameter values in
parameter edit mode.
Version 3.05 | Optidrive Eco User Guide | 31
