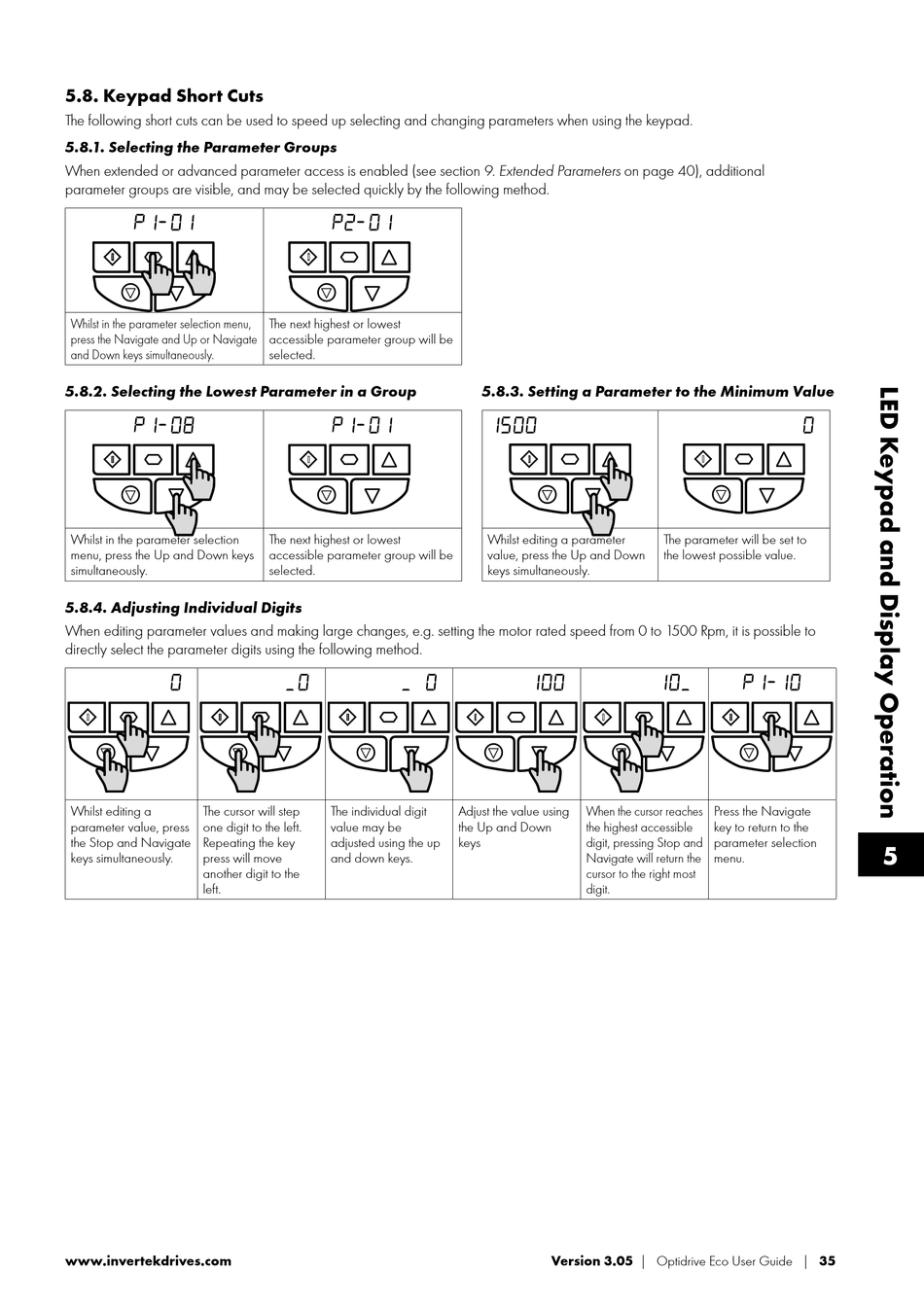

5.8. Keypad Short Cuts

The following short cuts can be used to speed up selecting and changing parameters when using the keypad.
5.8.1. Selecting the Parameter Groups
When extended or advanced parameter access is enabled (see section 9. Extended Parameters on page 40), additional
parameter groups are visible, and may be selected quickly by the following method.
P-
Whilst in the parameter selection menu,
press the Navigate and Up or Navigate
and Down keys simultaneously.
5.8.2. Selecting the Lowest Parameter in a Group
P-
Whilst in the parameter selection
menu, press the Up and Down keys
simultaneously.
5.8.4. Adjusting Individual Digits
When editing parameter values and making large changes, e.g. setting the motor rated speed from 0 to 1500 Rpm, it is possible to
directly select the parameter digits using the following method.

Whilst editing a The cursor will step
parameter value, press one digit to the left.
the Stop and Navigate Repeating the key
keys simultaneously. press will move
another digit to the
left.
www.invertekdrives.com
P-
The next highest or lowest
accessible parameter group will be
selected.
P-
The next highest or lowest
accessible parameter group will be
selected.
  
The individual digit
value may be
adjusted using the up
and down keys.
5.8.3. Setting a Parameter to the Minimum Value

Whilst editing a parameter
value, press the Up and Down
keys simultaneously.

Adjust the value using When the cursor reaches
the Up and Down the highest accessible
keys digit, pressing Stop and
Navigate will return the
cursor to the right most
digit.
Version 3.05 | Optidrive Eco User Guide | 35

The parameter will be set to
the lowest possible value.
 P-
Press the Navigate
key to return to the
parameter selection
menu.
